Focusing Calibration Scales on NIKKOR F Lenses

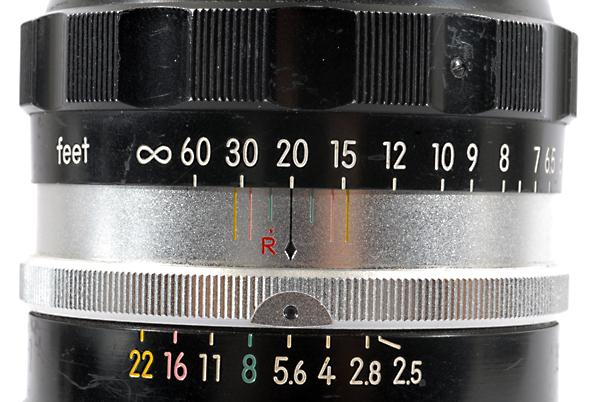

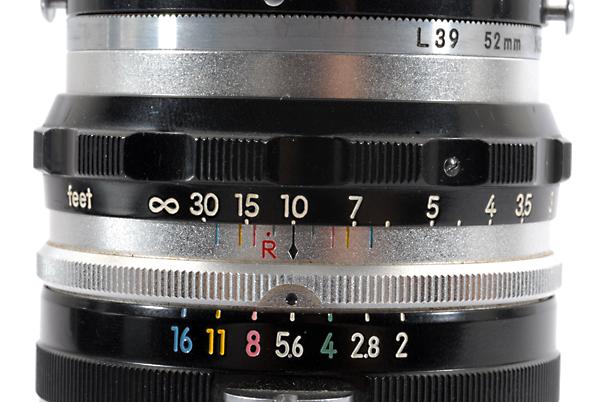

Calibration in feet only with tick marks

The distance scale on the focusing ring is calibrated in feet only. There are small markings below the range numbers, called «tick marks». The engravings are filled out with white enamel. Produced for the U.S. and U.K. market.

e.g. NIKKOR-S Auto 1:2 f=5cm

e.g. NIKKOR-P Auto 1:2.5 f=10.5cm

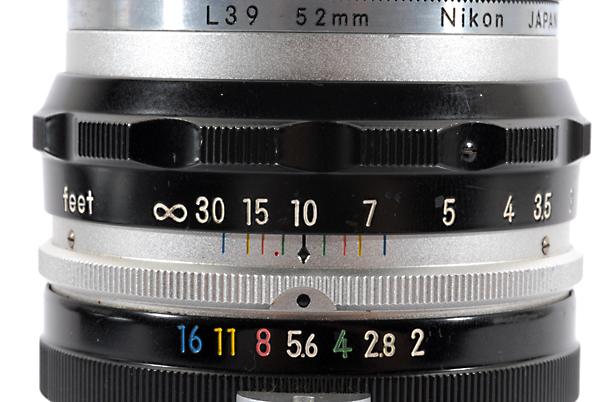

Calibration in feet only

The distance scale on the focusing ring is calibrated in feet only. The engravings are filled out with white enamel. Produced for the U.S. and U.K. market.

e.g. NIKKOR-S Auto 1:2 f=5cm

e.g. NIKKOR-H Auto 1:1.8 f=85mm

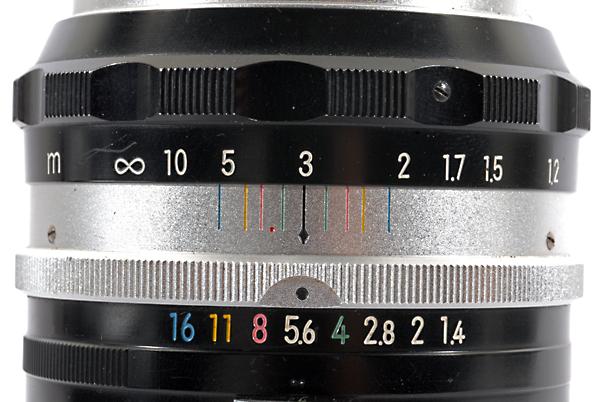

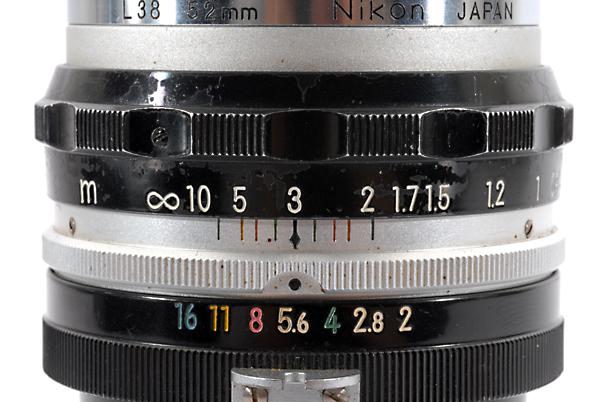

Calibration in meters only

The distance scale on the focusing ring is calibrated in meters only. The engravings are filled out with white enamel. Produced for the Japanese and European market.

e.g. NIKKOR-H Auto 1:2 f=50mm

e.g. NIKKOR-S Auto 1:1.4 f=5.8cm

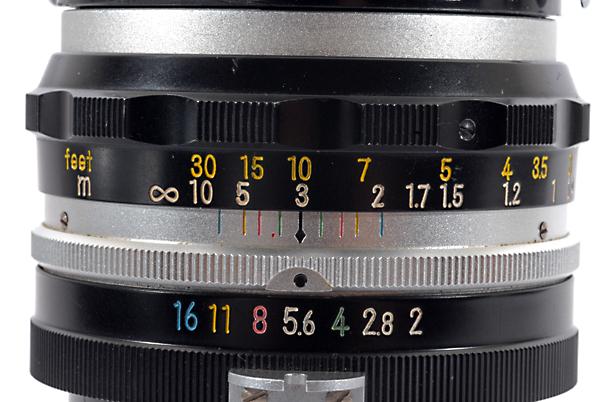

Calibration in feet and meters (1)

The distance scale on the focusing ring is calibrated in feet and meters. Infinty setting is on the left side. The feet scale is filled with yellow enamel and is situated above the meter scale filled out with white enamel.

e.g. NIKKOR-H Auto 1:2 f=50mm

On later lenses with rubber focusing ring the word «feet» is abbreviated to «ft».

e.g. NIKKOR 105mm 1:2.5

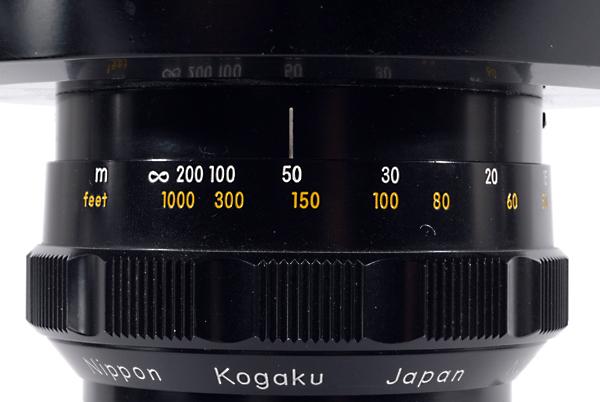

Calibration in meters and feet (2)

The distance scale on the focusing ring is calibrated in meters and feet. Infinty setting is on the left side. The feet scale is filled with yellow enamel and is situated below the meter scale filled out with white enamel.

e.g. Early Zoom-NIKKOR Auto 1:3.5 f=43mm-f=86mm

e.g. Reflex-NIKKOR 1:5 f=50cm

Calibration in meters and feet (3)

The distance scale on the focusing ring is calibrated in feet and meters, with infinity setting on the right side.

e.g. GN Auto NIKKOR 1:2.8 f=45mm
