«LENS MADE IN JAPAN» Engravings on NIKKOR F Lenses

Copyright © Richard de Stoutz 2007.

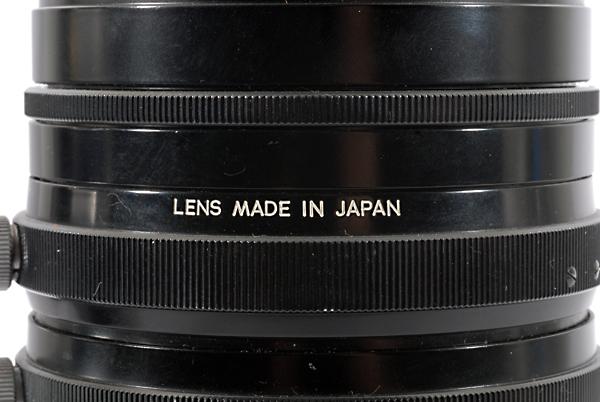

Engraving on aperture ring type 1

«LENS MADE IN JAPAN» engraved on the black part of the aperture ring and filled out with white enamel. The character «M» has slanted sides.

e.g. Auto NIKKOR Telephoto-Zoom 1:4 f=8.5cm ~ 1:4.5 f=25cm


Copyright © Richard de Stoutz 2007.
e.g. Medical NIKKOR Auto 1:5.6 f=200mm

Top   Back


Copyright © Richard de Stoutz 2007.

Engraving on aperture ring type 2

«LENS MADE IN JAPAN» engraved on the black part of the aperture ring and filled out with white enamel. The character «M» has vertical sides.

e.g. Auto NIKKOR Telephoto-Zoom 1:4 f=85mm ~ f=250mm


Copyright © Richard de Stoutz 2007.
e.g. Medical NIKKOR Auto 1:5.6 f=200mm

Top   Back


Copyright © Richard de Stoutz 2007.

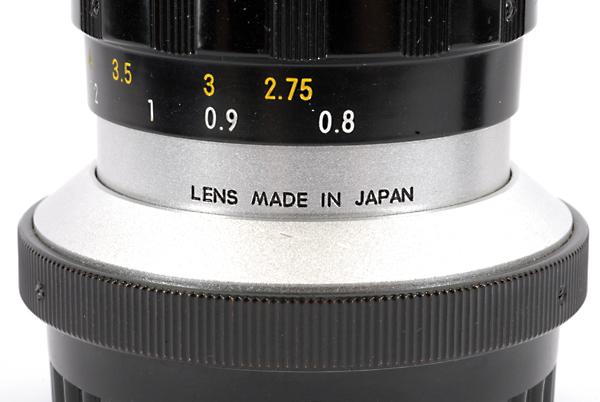

Engraving on lens barrel type 1

«LENS MADE IN JAPAN» engraved on the chrome lens barrel and filled out with black enamel. The character «M» has slanted sides. The engraving is situated on the left side of the screw located at the opposite side of the lens index.

e.g. Micro-NIKKOR Auto 1:3.5 f=55mm


Copyright © Richard de Stoutz 2007.
On some lenses the engraving is situated exactly at the opposite side of the lens index.

e.g. NIKKOR-T 1:4 f=10.5cm

Top   Back


Copyright © Richard de Stoutz 2007.

Engraving on lens barrel type 1a

«LENS MADE IN JAPAN» engraved on the chrome lens barrel and filled out with black enamel. The character «M» has slanted sides. The engraving is situated on the right side of the screw located at the opposite side of the lens index.

e.g. Micro-NIKKOR Auto 1:3.5 f=55mm

Top   Back


Copyright © Richard de Stoutz 2007.

Engraving on lens barrel type 1b

«LENS MADE IN JAPAN» engraved on the black lens barrel and filled out with white enamel. The character «M» has slanted sides.

e.g. NIKKOR-P Auto 1:5.6 f=600mm

Top   Back


Copyright © Richard de Stoutz 2007.

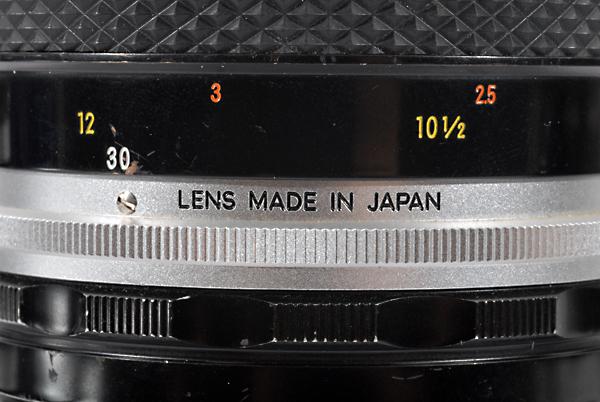

Engraving on lens barrel type 2

«LENS MADE IN JAPAN» engraved on the chrome lens barrel and filled out with black enamel. The character «M» has vertical sides. The engraving is situated on the right side of the screw located at the opposite side of the lens index.

e.g. Micro-NIKKOR-P Auto 1:3.5 f=55mm

Top   Back


Copyright © Richard de Stoutz 2007.

Engraving on lens barrel type 2a

«LENS MADE IN JAPAN» engraved on the black lens barrel and filled out with white enamel. The character «M» has vertical sides.

e.g. Zoom-NIKKOR Auto 1:4.5 f=50-300mm


Copyright © Richard de Stoutz 2007.
e.g. NIKKOR-Q Auto 1:4.5 f=400mm

Top   Back


Copyright © Richard de Stoutz 2007.

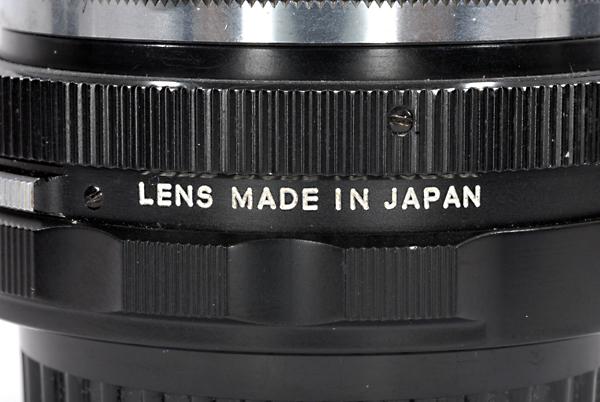

Engraving on lens barrel type 2a

«LENS MADE IN JAPAN» engraved on the black lens barrel and filled out with white enamel. The character «M» has vertical sides.

e.g. NIKKOR-Q 1:4 f=135mm (long mount bellows lens)


Copyright © Richard de Stoutz 2007.
e.g. GN-NIKKOR Auto 1:2.8 f=45mm

Top   Back


Copyright © Richard de Stoutz 2007.

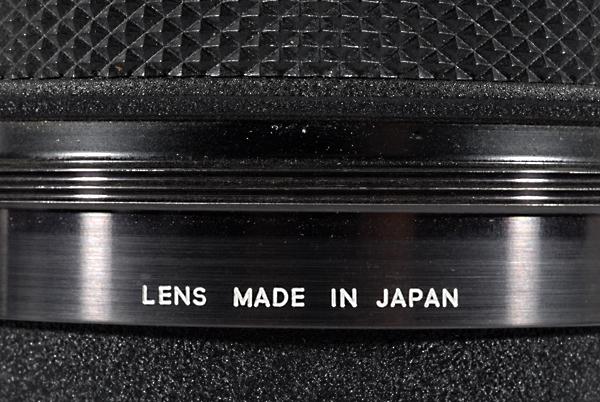

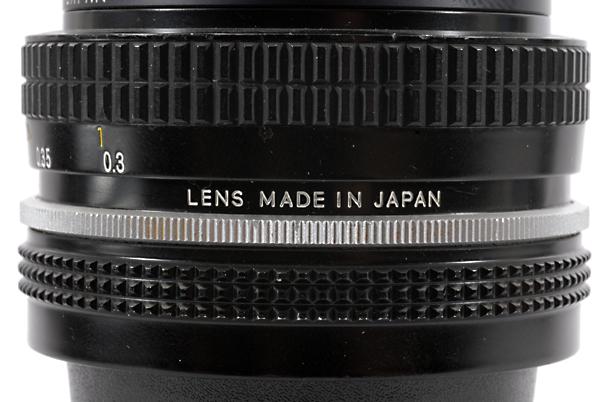

Engraving on lens barrel type 3

«LENS MADE IN JAPAN» engraved on the black lens barrel and filled out with white enamel. The character «M» has vertical sides. The engraving is exactly at the opposite side of the lens index.

e.g. NIKKOR 20mm 1:4


Copyright © Richard de Stoutz 2007.
e.g. Nikon Teleconverter TC-1 2x

Top   Back


Copyright © Richard de Stoutz 2020.

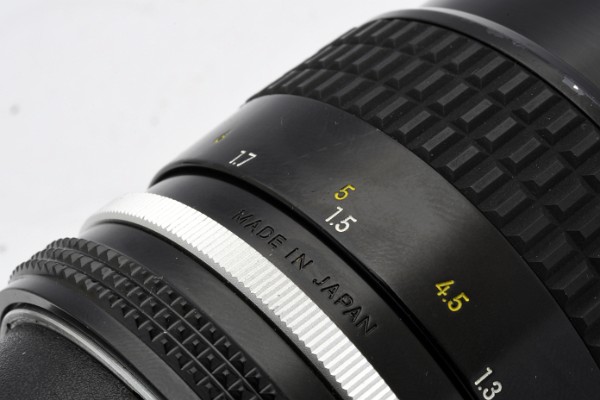

Engraving on lens barrel type 4

«MADE IN JAPAN» engraved on the black lens barrel and not filled with white enamel. The character «M» has vertical sides. The engraving is exactly at the opposite side of the lens index.

e.g. NIKKOR 135mm 1:3.5 AI

Top   Back


Copyright © Richard de Stoutz 2007.

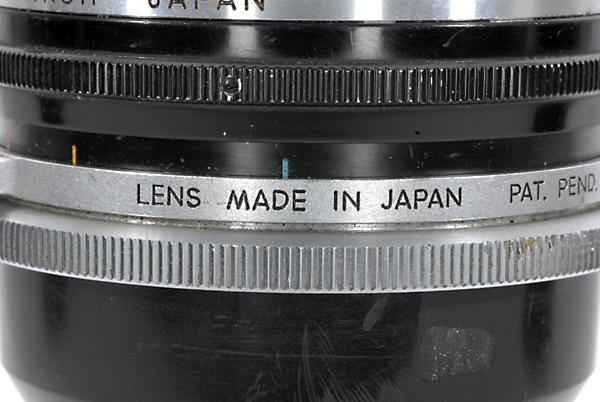

Engraving on focusing ring type 1

«LENS MADE IN JAPAN» engraved on the chrome focusing ring and filled out with black enamel. The character «M» has slanted sides.

e.g. NIKKOR-O 1:4 f=2.1cm

Top   Back


Copyright © Richard de Stoutz 2007.

Engraving on focusing ring type 1a

«LENS MADE IN JAPAN» engraved on the black focusing ring and filled out with white enamel. The character «M» has slanted sides.

e.g. NIKKOR-H Auto 1:2 f=50mm


Copyright © Richard de Stoutz 2007.
e.g. Reflex-NIKKOR 1:5 f=50cm

Top   Back


Copyright © Richard de Stoutz 2007.

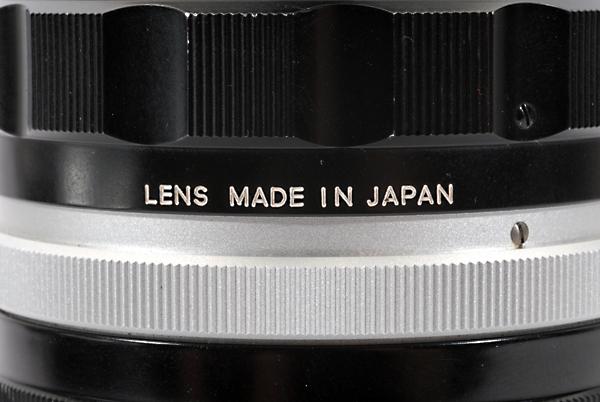

Engraving on focusing ring type 2

«LENS MADE IN JAPAN» engraved on the black focusing ring and filled out with white enamel. The character «M» has vertical sides.

e.g. NIKKOR-O 1:2 f=35mm

Top   Back


Copyright © Richard de Stoutz 2007.

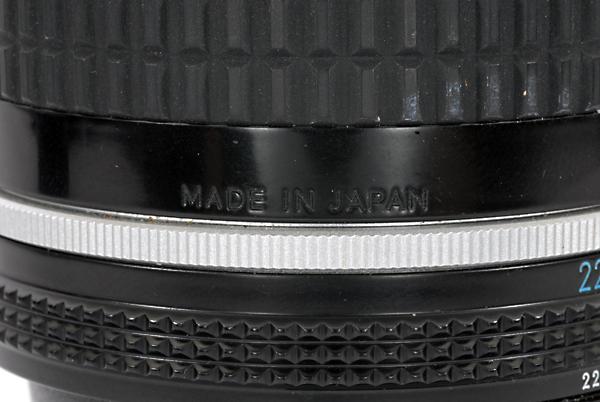

Engraving on focusing ring type 3

«MADE IN JAPAN» engraved on the black focusing ring and not filled with white enamel. The character «M» has vertical sides.

e.g. NIKKOR 50mm 1:1.8 AI

Top   Back


Copyright © Richard de Stoutz 2007.

Engraving on RF-bayonet mount ring

«LENS MADE IN JAPAN» engraved on the chrome RF bayonet ring and filled out with black enamel. The character «M» has slanted sides.

e.g. NIKKOR-Q 1:4 f=13.5cm (short mount bellows lens)

Top   Back


Copyright © Richard de Stoutz 2007.

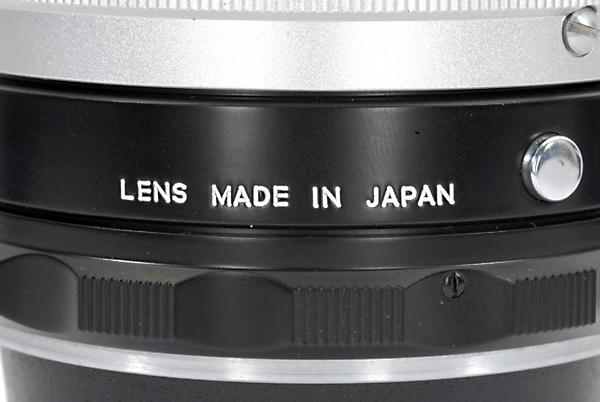

Engraving on aperture preset ring

«LENS MADE IN JAPAN» engraved on the black aperture preset ring and filled out with white enamel. The character «M» has vertical sides.

e.g. NIKKOR-P 1:4 f=105mm (bellows lens)

Top   Back
