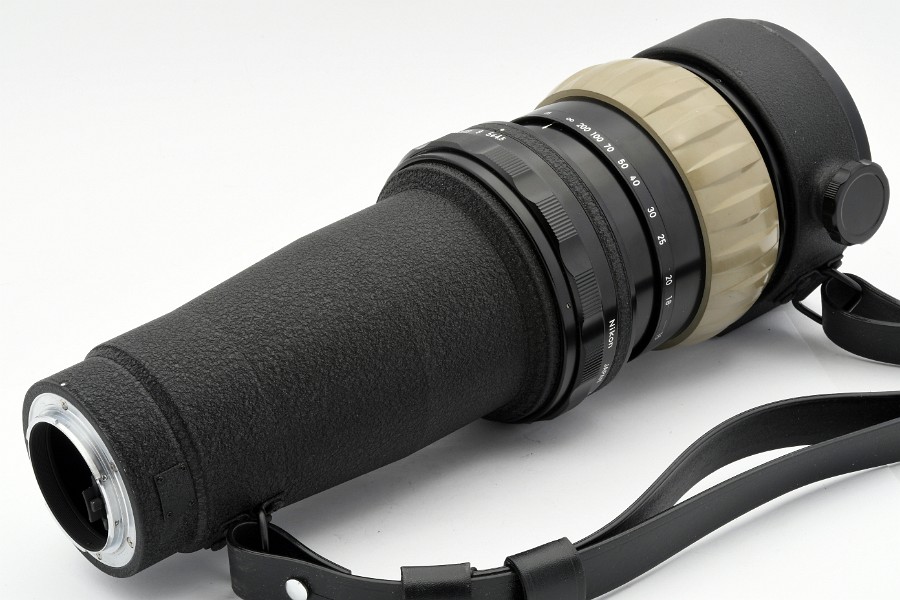

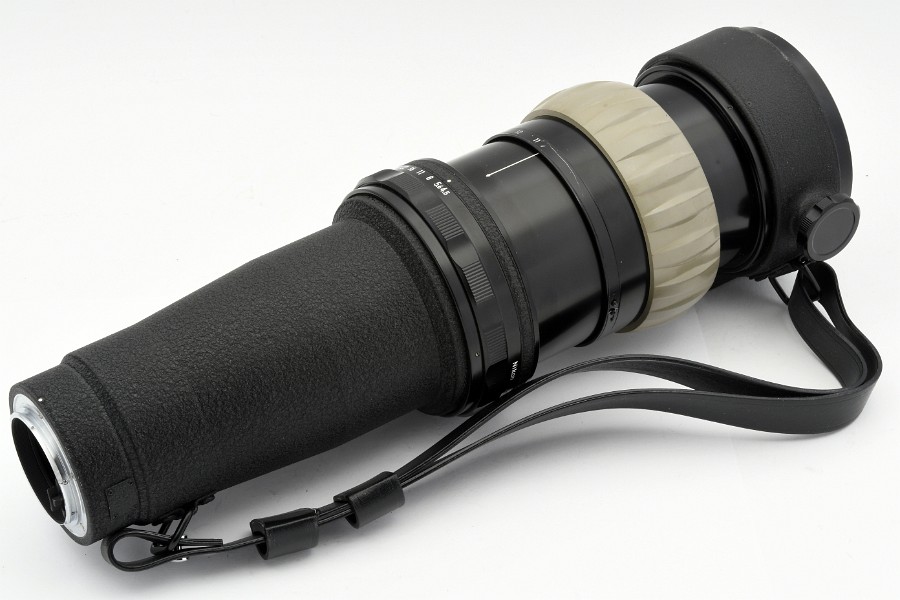

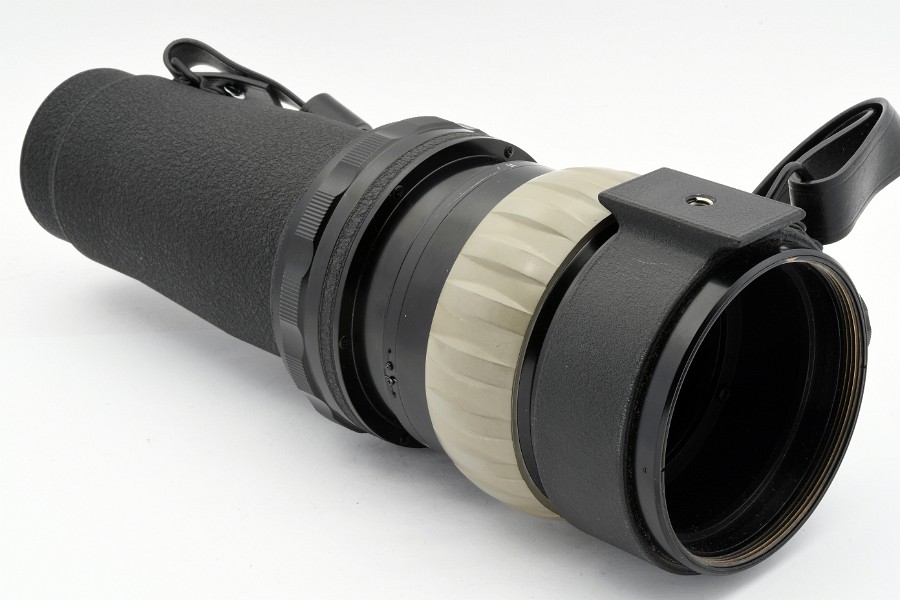

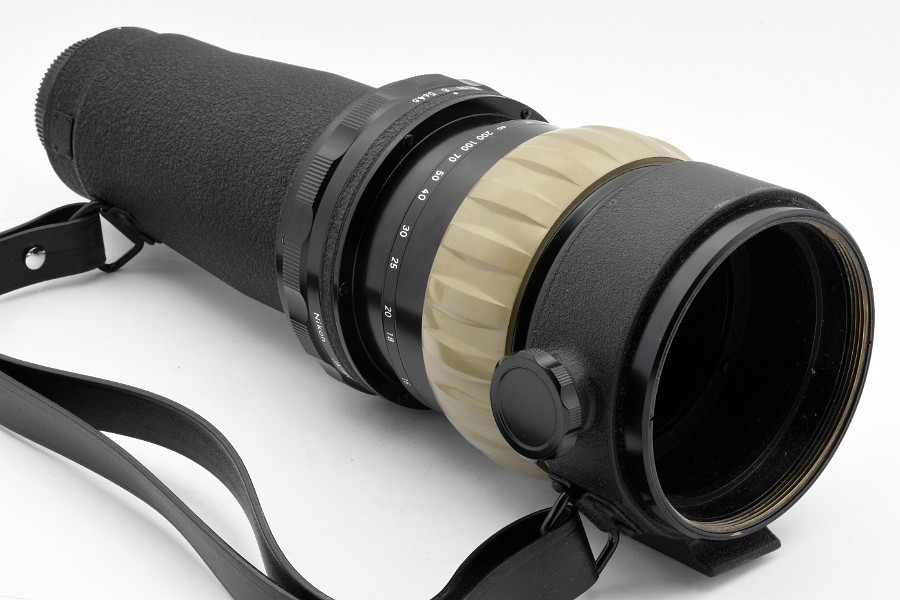

Nikon Focusing Unit for Long Focus Lenses 591951

mouseover to enlarge

«Nikon JAPAN»
Production year 1973
Type 3
88mm screw-in lens mount (P=1.5mm)
Revolving tripod socket with large scalloped clamp screw
Small window near the aperture coupling lever

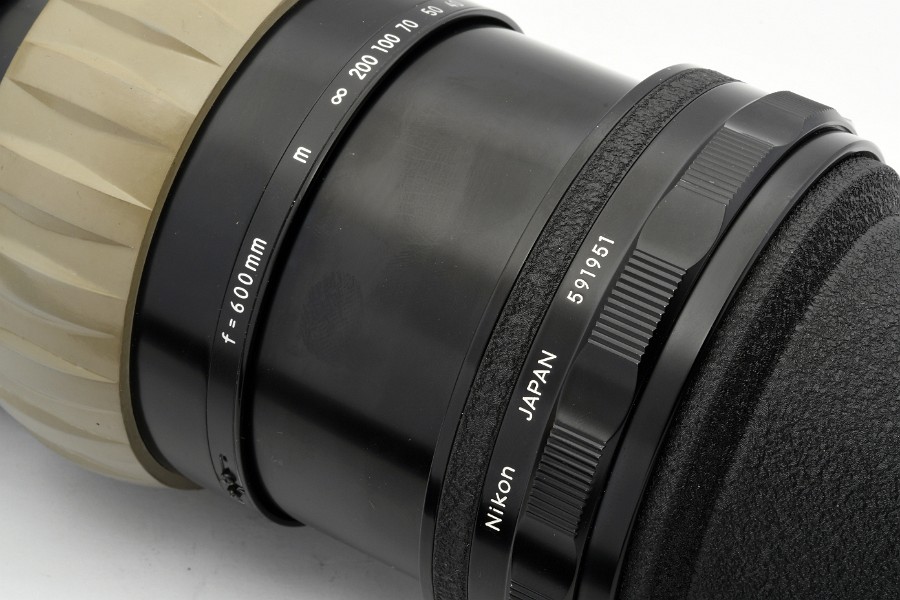

Distance scale plate for 600mm lens head, calibrated in meters only, focusing range ∞ to 11 meters (35 ft.)

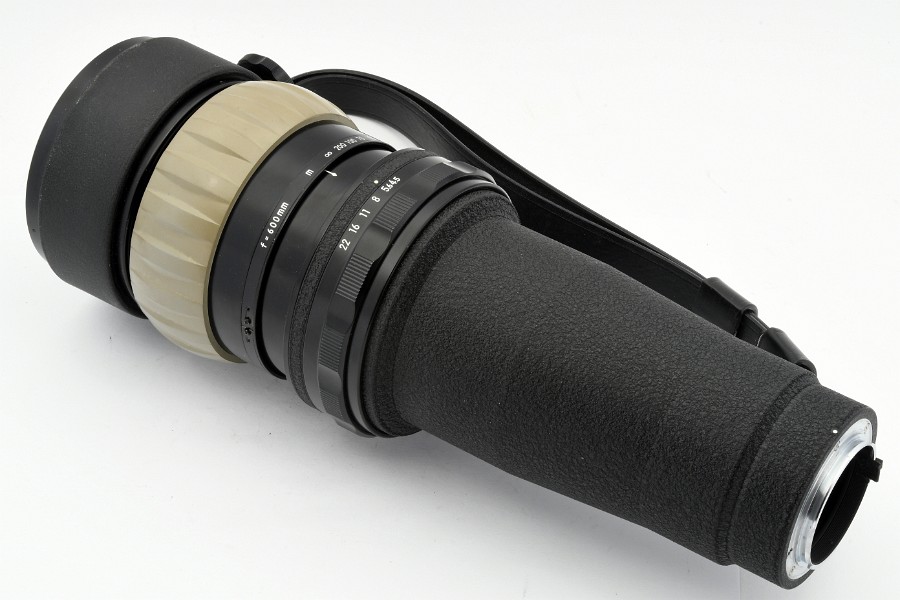

Apertures 4.5 to 22

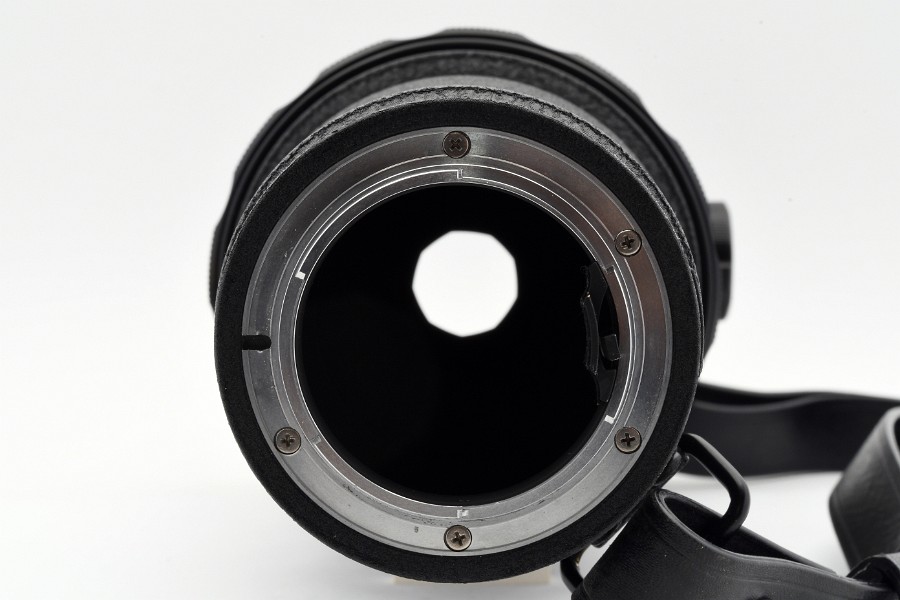

9 iris blades
Bayonet fixed by 5 cross-head screws
Nikon LF-1 rear lens cap

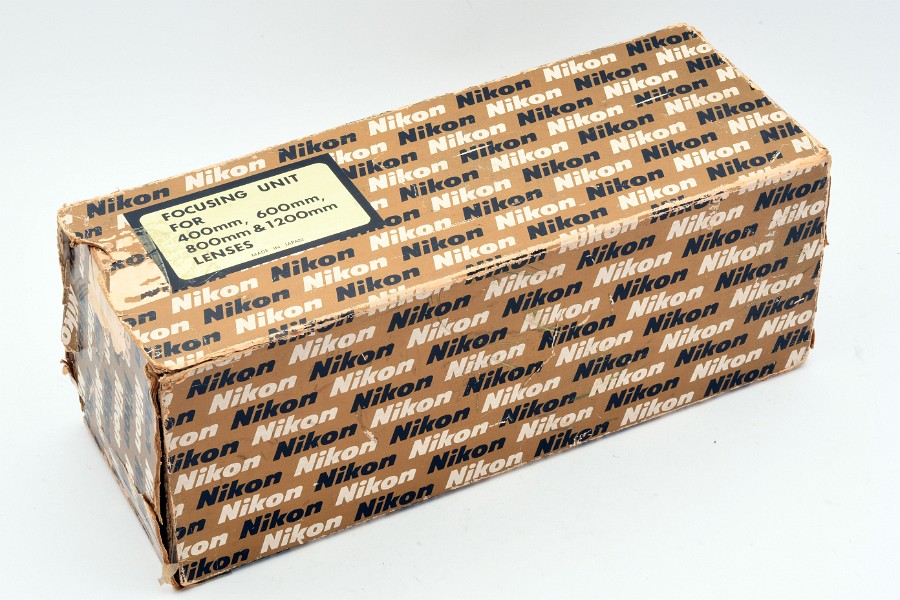

Original maker's box

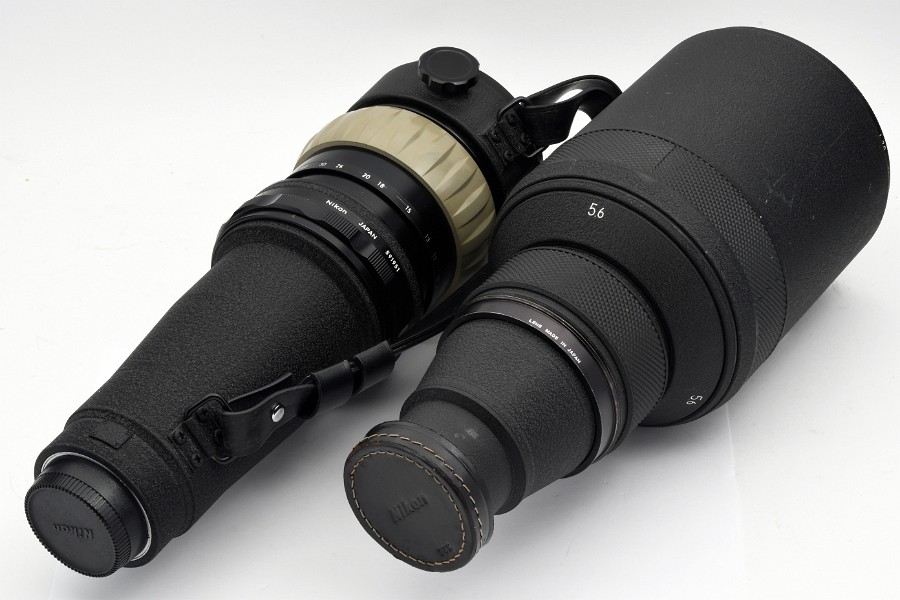

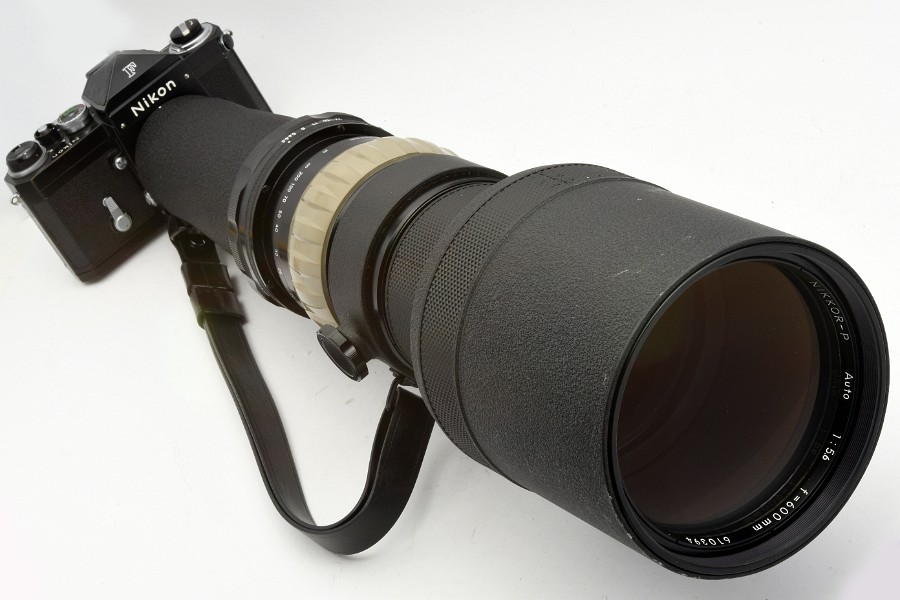

matched with NIKKOR-P 1:5.6 f=600mm 610394
