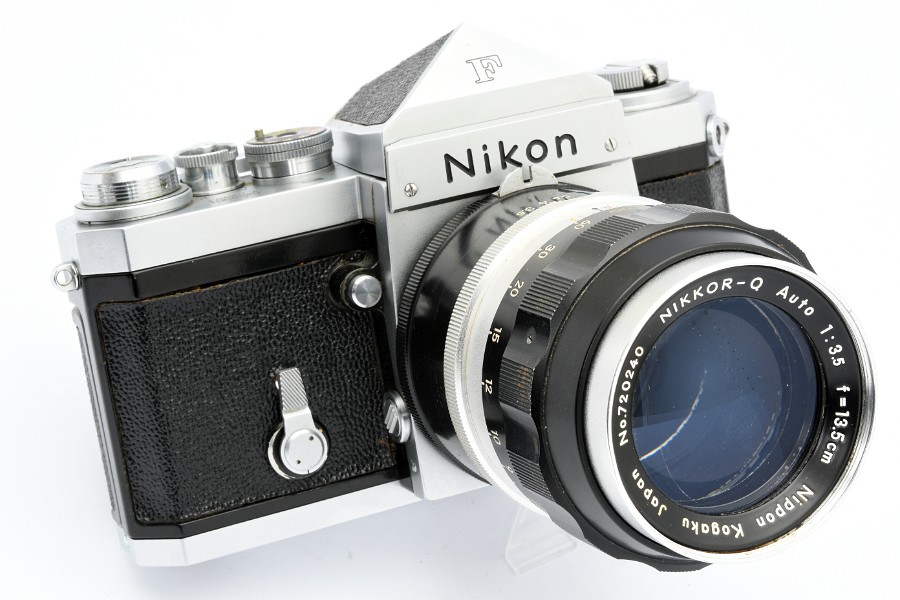

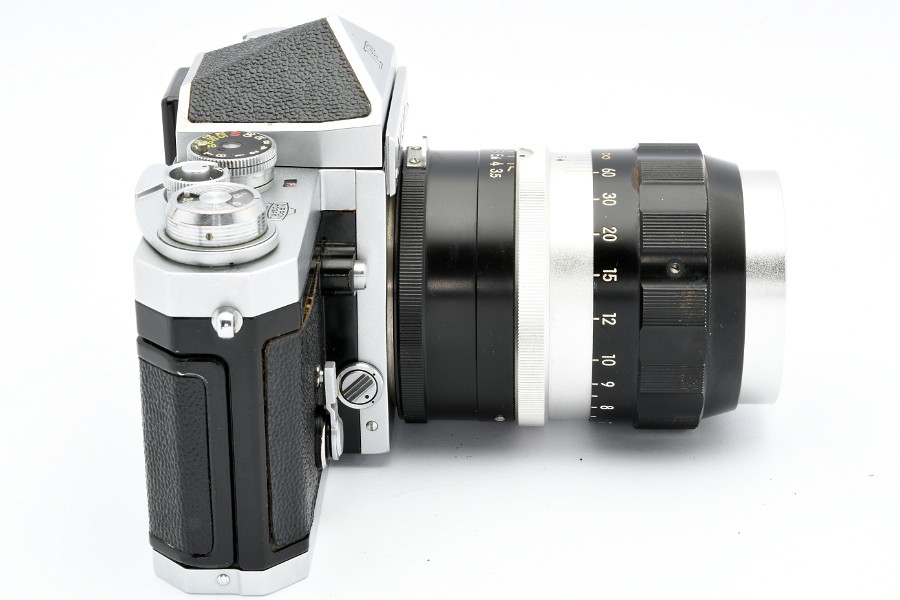

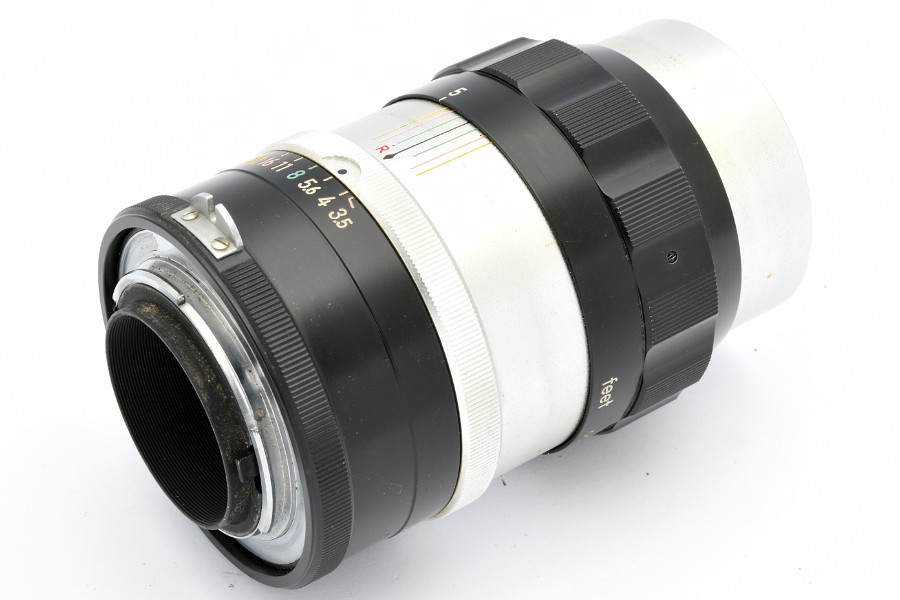

NIKKOR-Q Auto 1:3.5 f=13.5cm No.720240

mouseover to enlarge

• «Nippon Kogaku Japan», production year 1959
• 140th lens produced (first 13.5cm lens was No.720101)
• 4 elements in 3 groups, picture angle 18°
• chrome front ring, filter ∅ 52mm

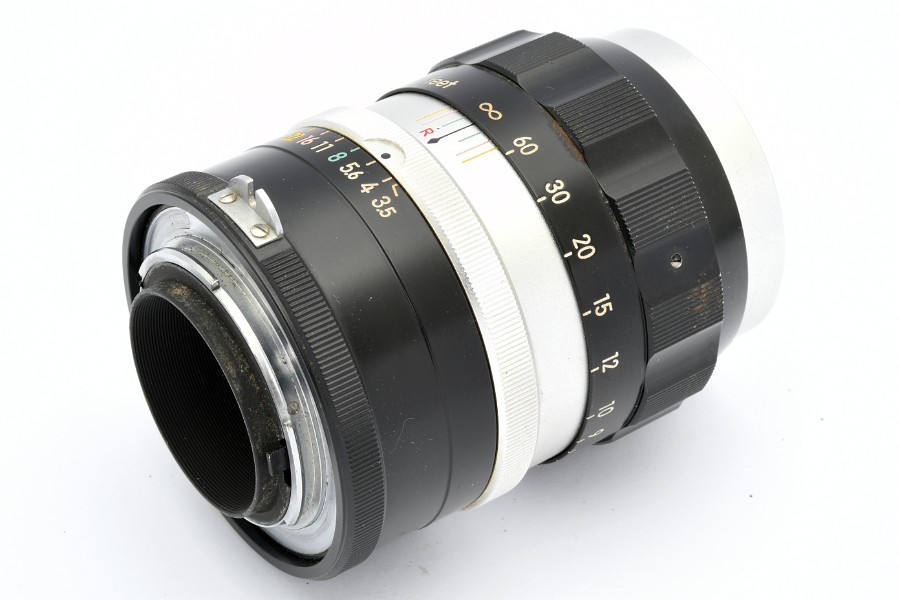

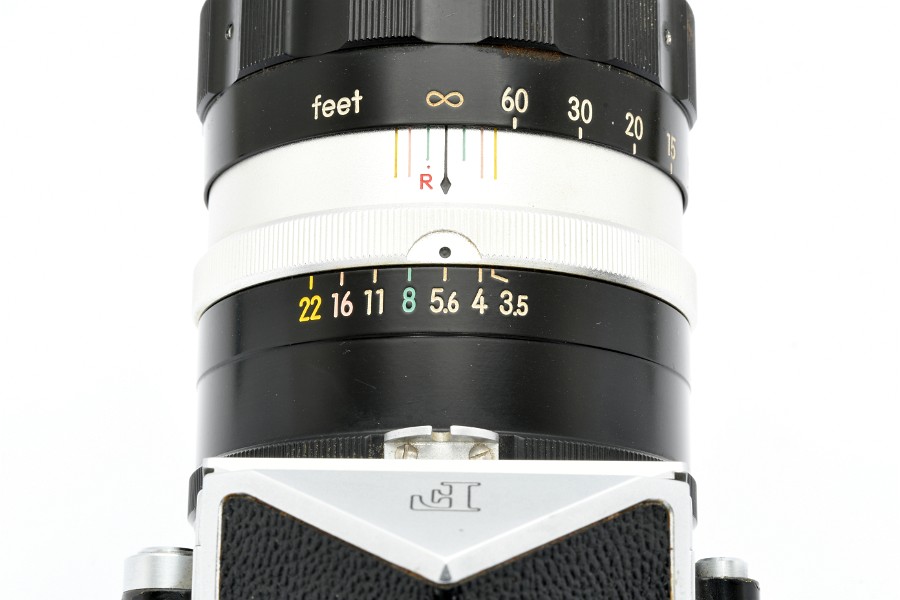

• focusing ring with tick marks, distance scale graduated in feet from 5 ft. to ∞
• infrared mark: red dot and red «R»
• no «LENS MADE IN JAPAN»
• «PAT.PEND.» on chrome lens barrel
• aperture ring with tick marks
• aperture scale f/3.5 to f/22, 9 iris blades
• bayonet with recess, no bayonet screws
• dimensions approx. 66mm ∅ x 91.7mm
• weight approx. 375g
• NIPPON KOGAKU 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap

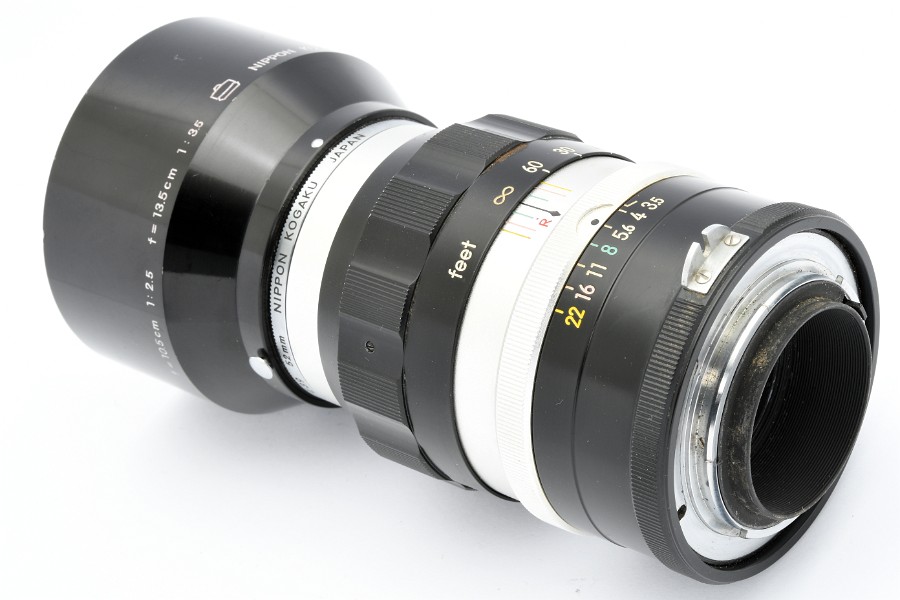

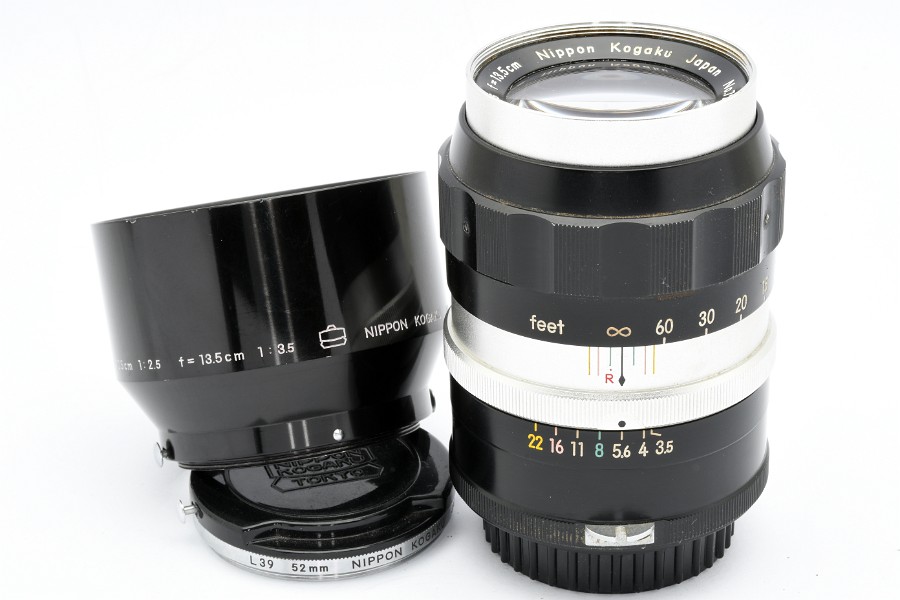

• NIPPON KOGAKU F 52mm snap-on lens hood, «f=10.5cm 1:2.5 f=13.5cm 1:3.5», «US.PAT. J.PAT. PEND.»
• NIPPON KOGAKU L39 52mm screw-in filter, chrome rim
