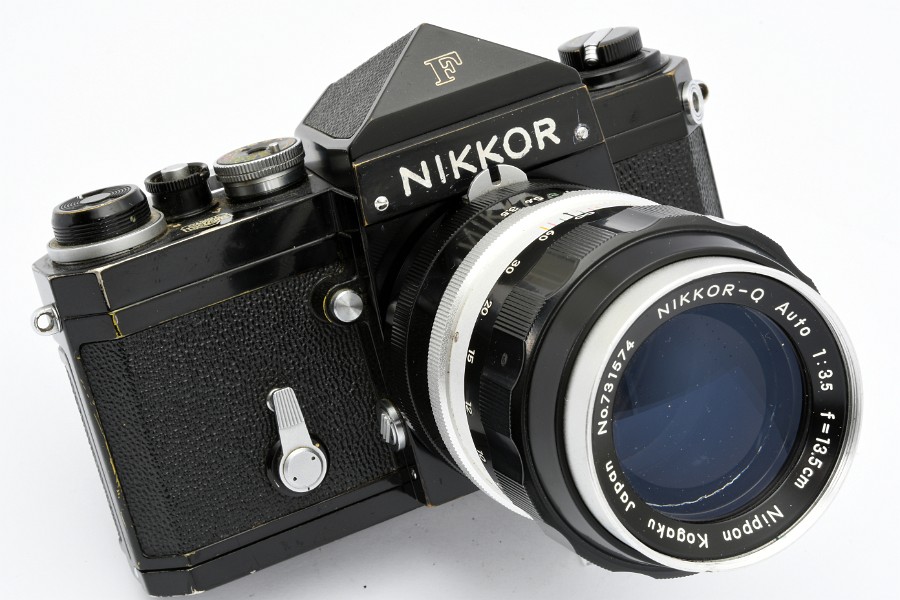

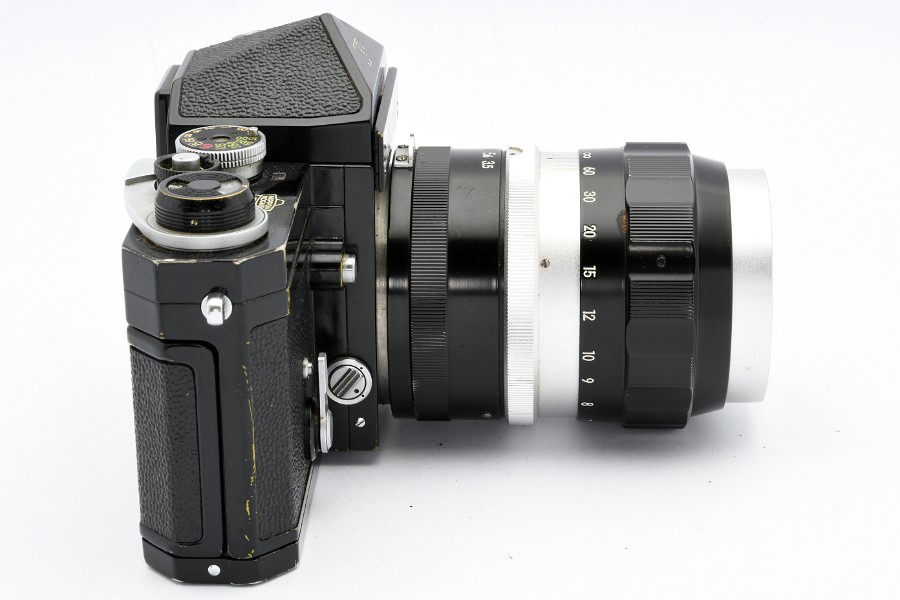

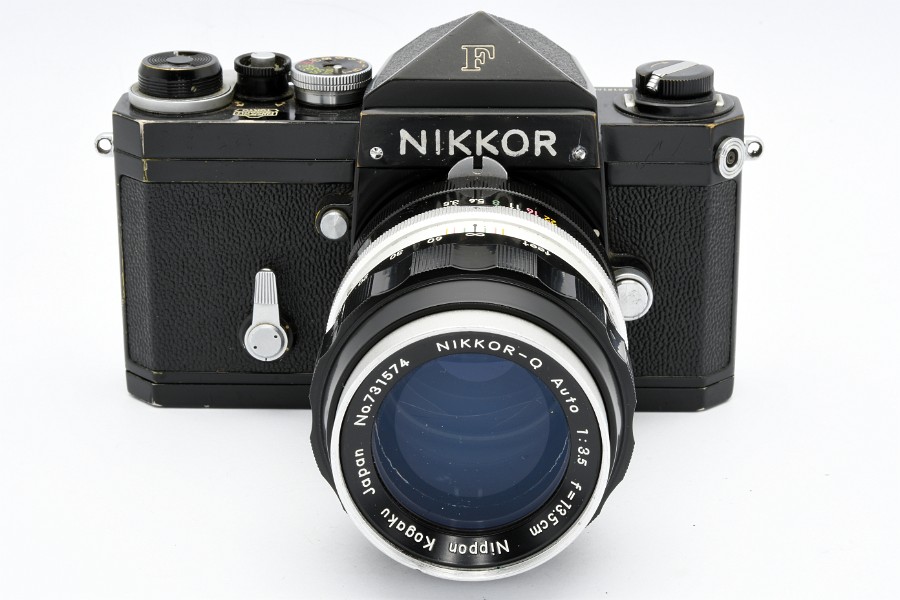

NIKKOR-Q Auto 1:3.5 f=13.5cm No.731574

mouseover to enlarge

«Nippon Kogaku Japan»
production year 1961
first 13.5cm lens was No.720101
4 elements in 3 groups, picture angle 18°
chrome front ring, filter ∅ 52mm

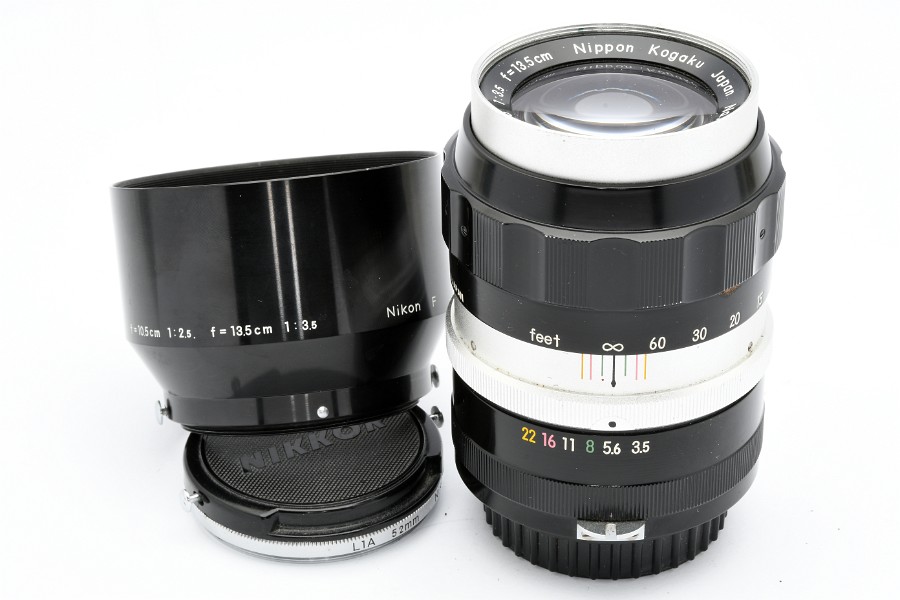

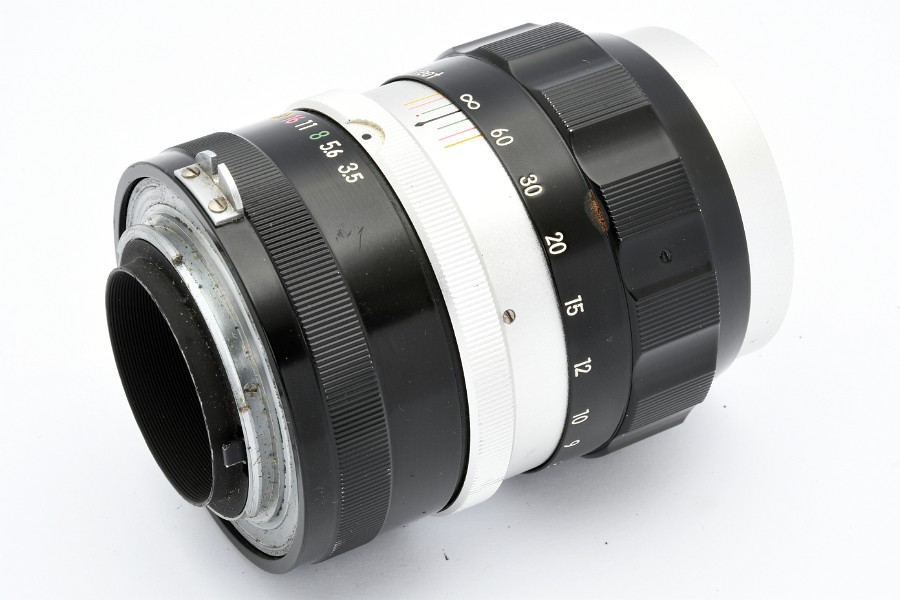

distance scale graduated in feet from 5 ft. to infinity (∞)
infrared mark: red dot

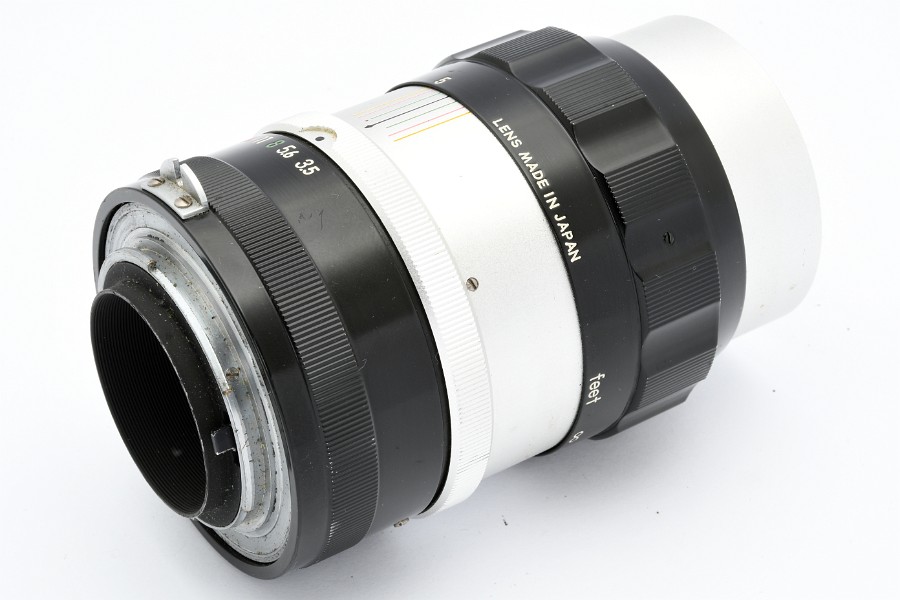

«LENS MADE IN JAPAN» on black focusing ring («M» with slanted sides)
«PAT.PEND.» on chrome lens barrel
<EP> on chrome lens barrel
aperture scale f/3.5 to f/22, 6 iris blades
no bayonet screws
dimensions approx. 66mm ∅ x 91.7mm
weight approx. 380g
NIKKOR 52mm snap-on front lens cap
NIPPON KOGAKU F rear lens cap

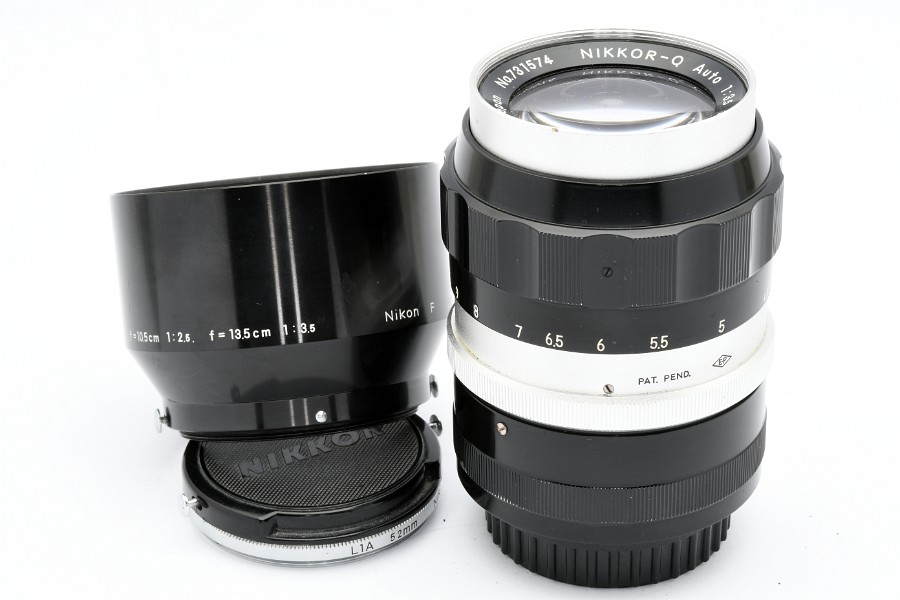

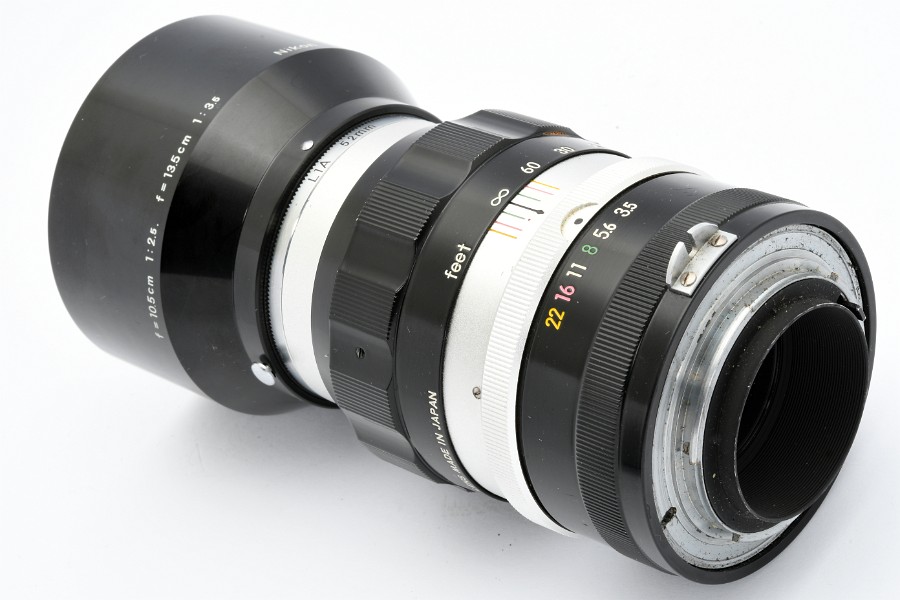

Nikon F 52mm snap-on lens hood, «10.5cm 1:2.5 13.5cm 1:3.5», «U.S.PAT. J.PAT. PEND.,»
Nikon 52mm L1A screw-in filter, chrome rim
