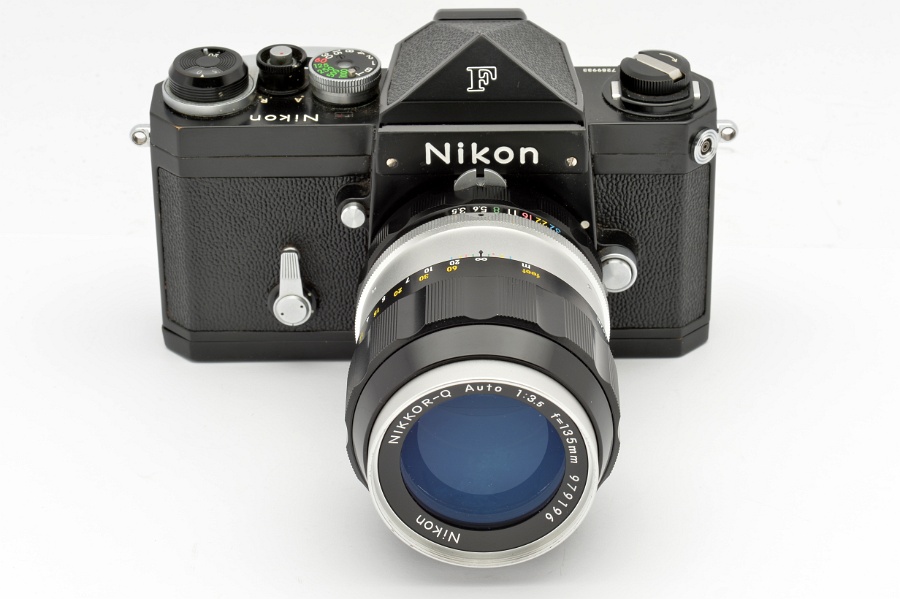

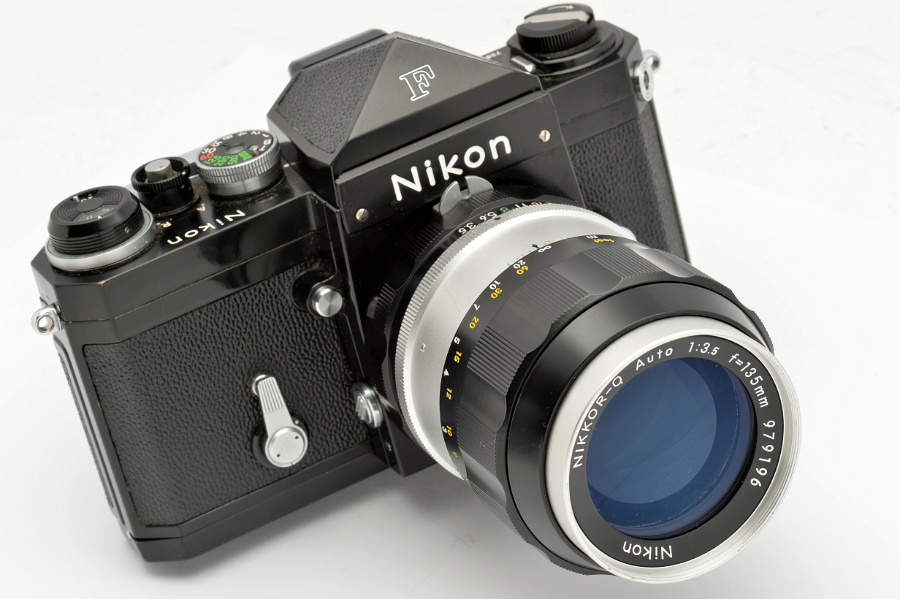

NIKKOR-Q Auto 1:3.5 f=135mm 979196
mouseover to enlarge
- «Nikon»
- production year 1972
- first 135mm Nikon lens was No.912001
- 4 elements in 3 groups
- picture angle 18°
- chrome front ring, filter ∅ 52mm
- distance scale graduated in meters & feet from 1.5m (5 ft.) to infinity (∞)

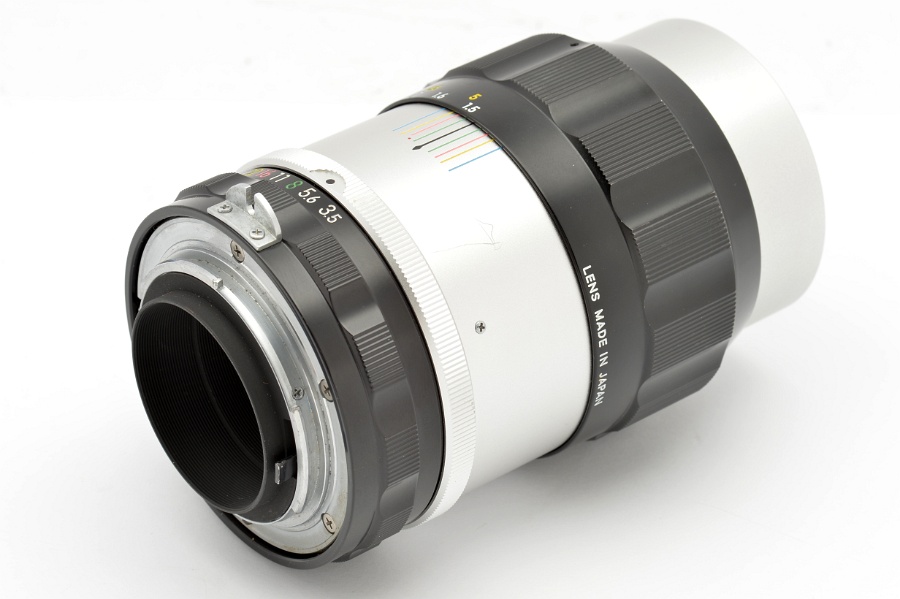

- «LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)

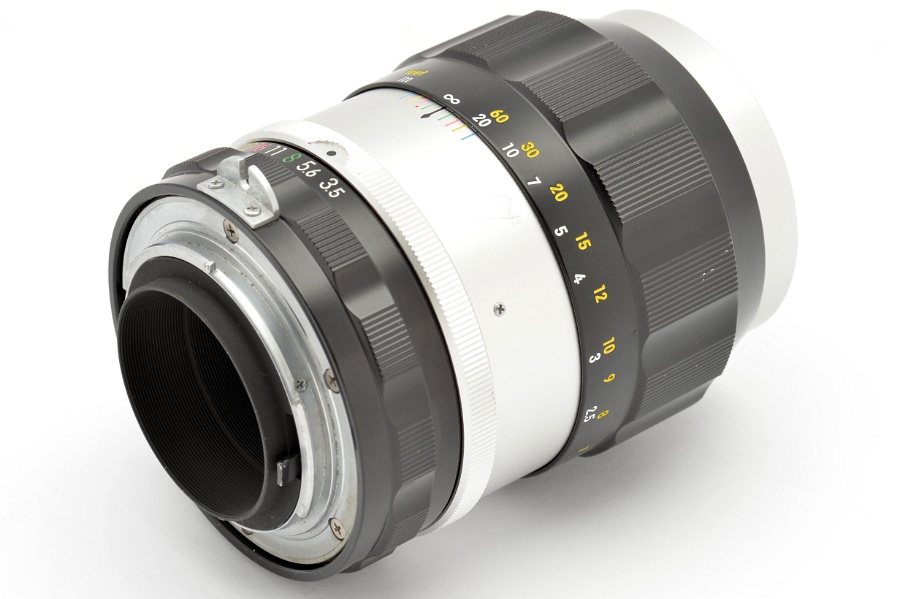

- scalloped aperture setting ring
- aperture scale f/3.5 to f/32
- 7 iris blades
- bayonet fixed by 5 cross-head screws
- dimensions approx. 66mm ∅ x 93.5mm
- weight approx. 455g

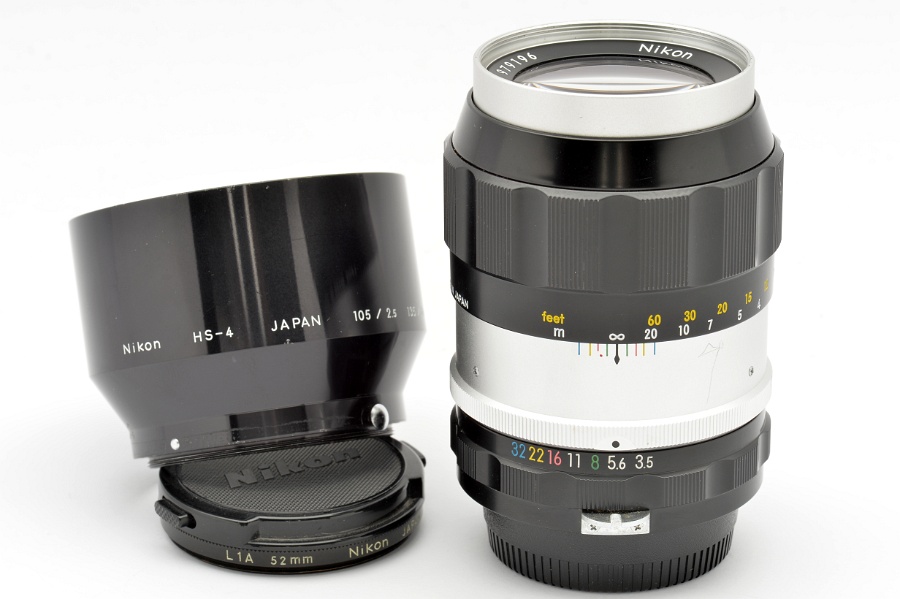

- Nikon 52mm snap-on front lens cap
- Nikon LF-1 rear lens cap

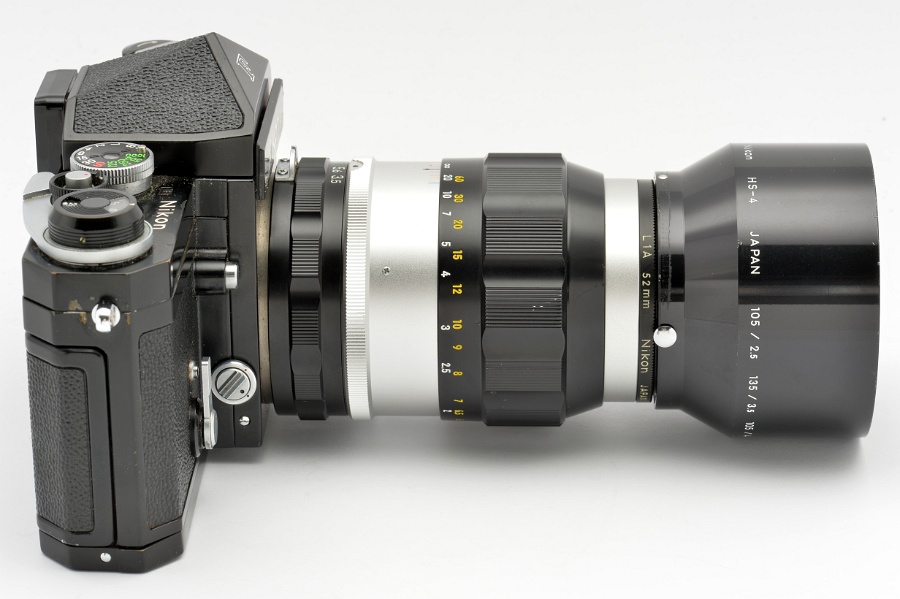

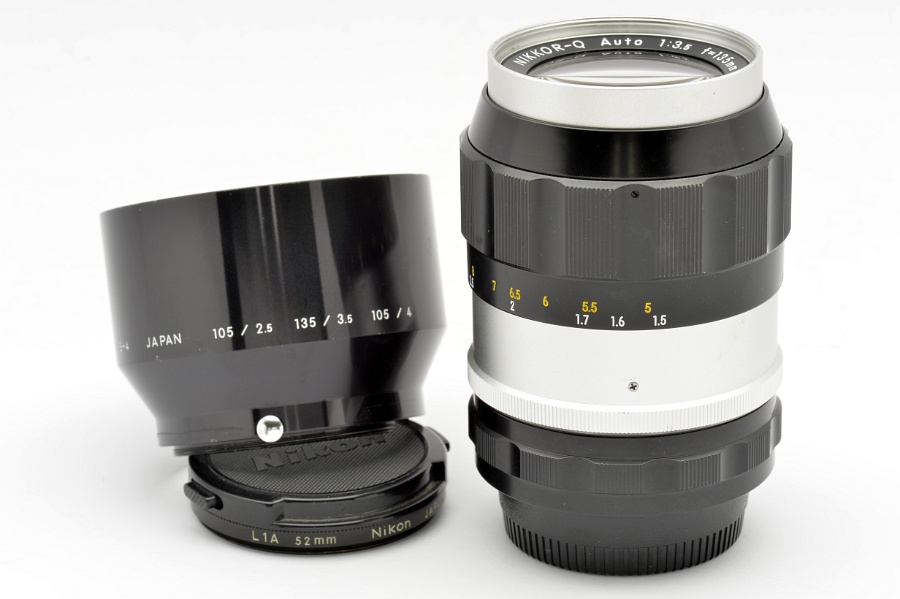

- HS-4 105/2.5 135/3.5 105/4 snap-on lens hood
- NIKKOR 52mm L39 screw-in filter, black rim
