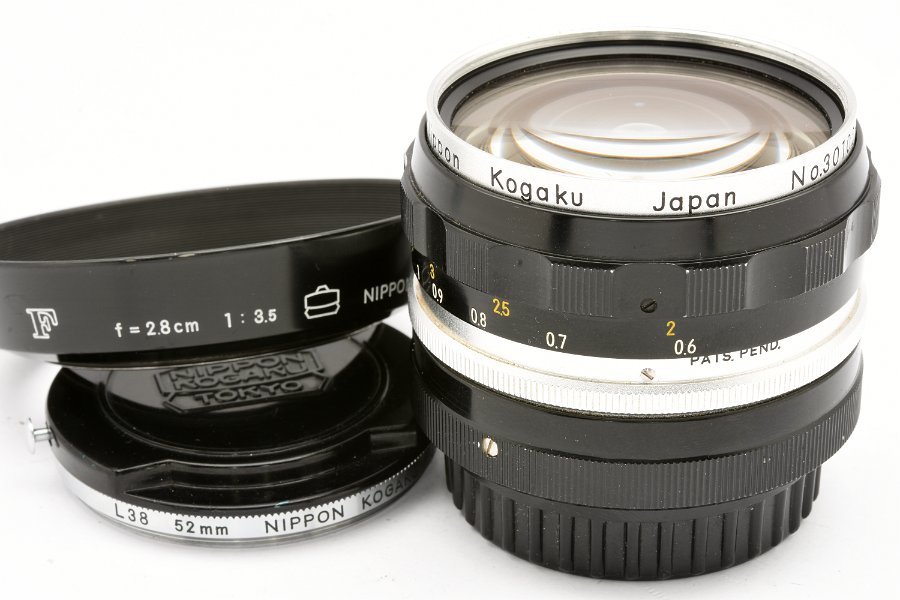

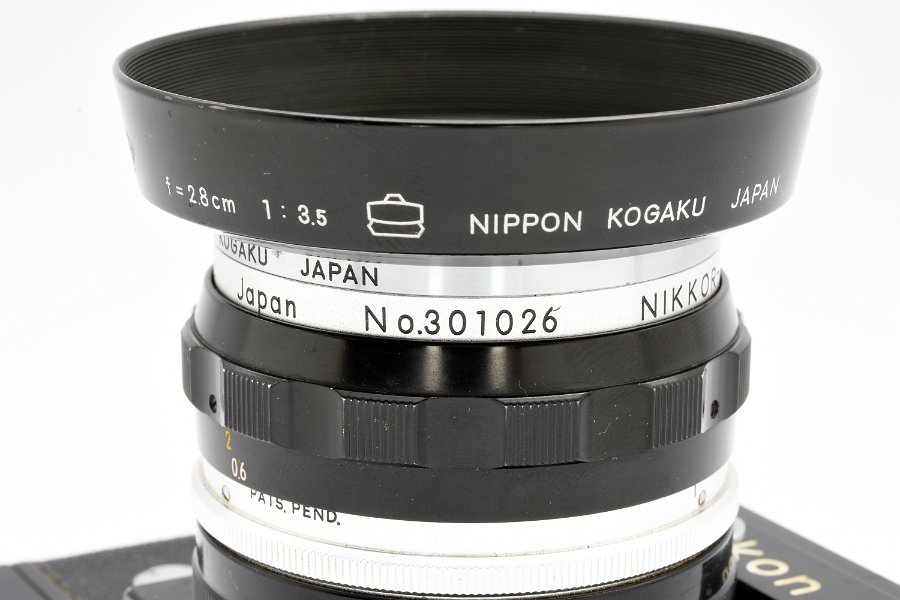

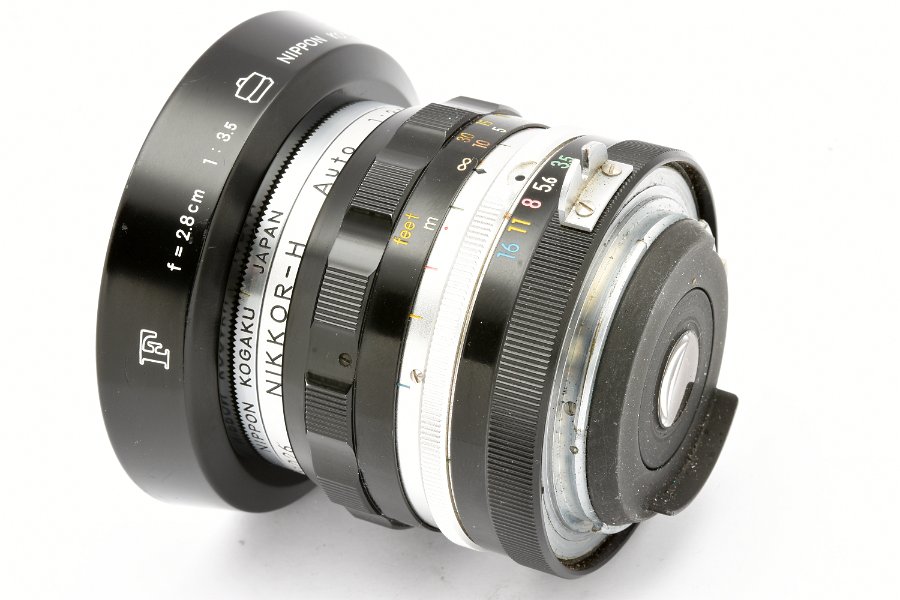

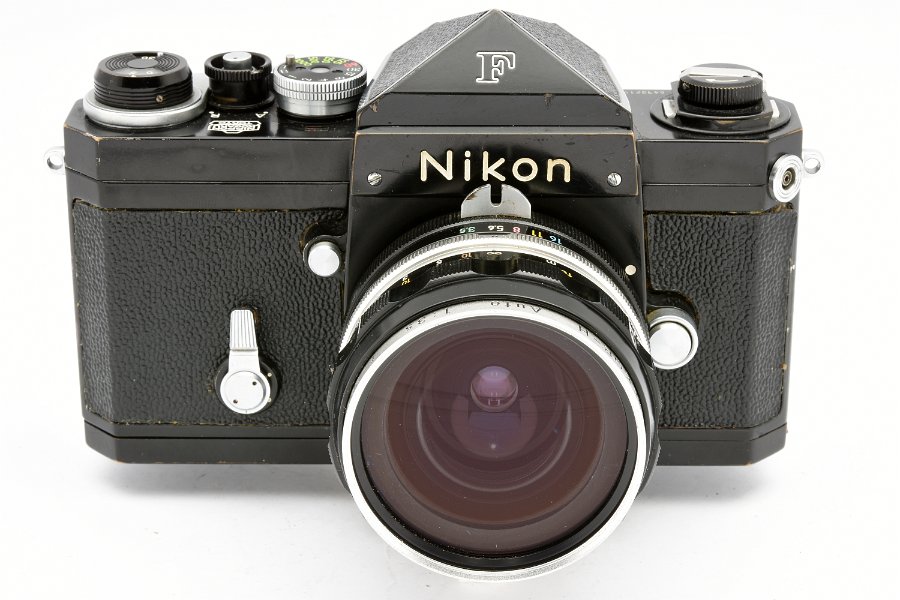

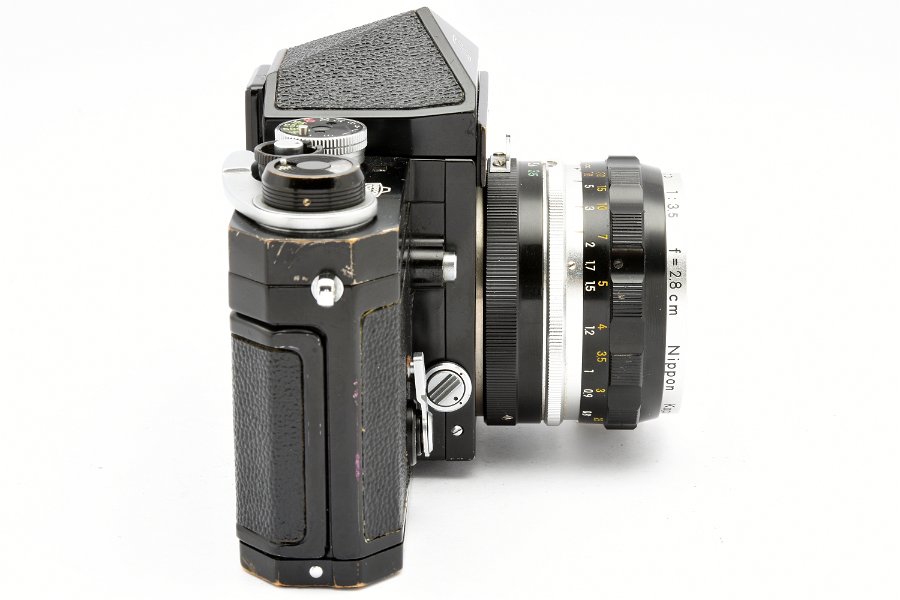

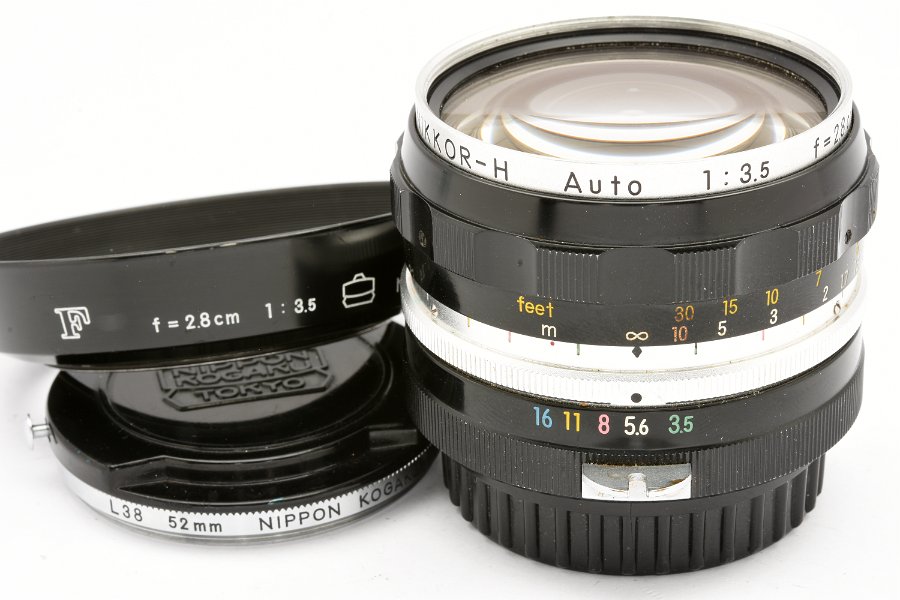

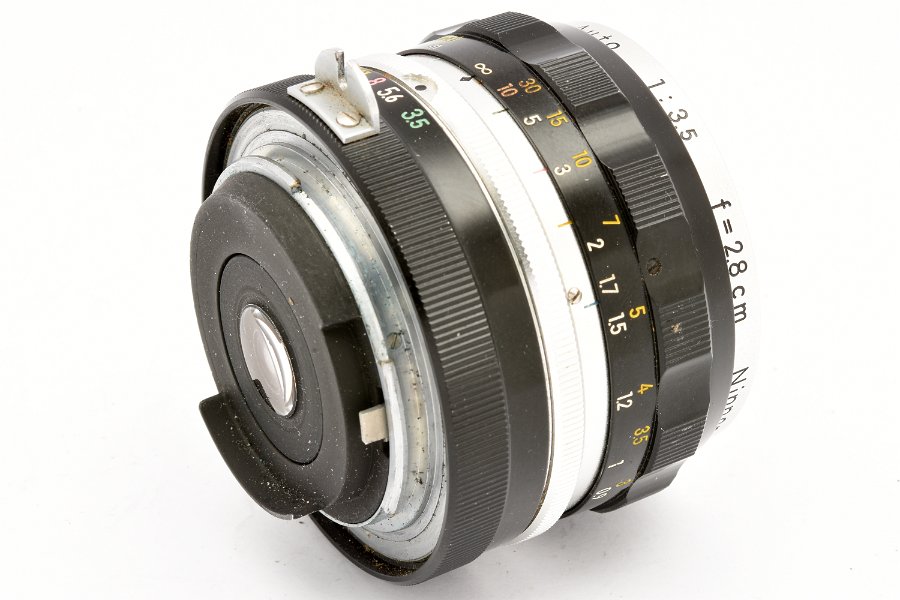

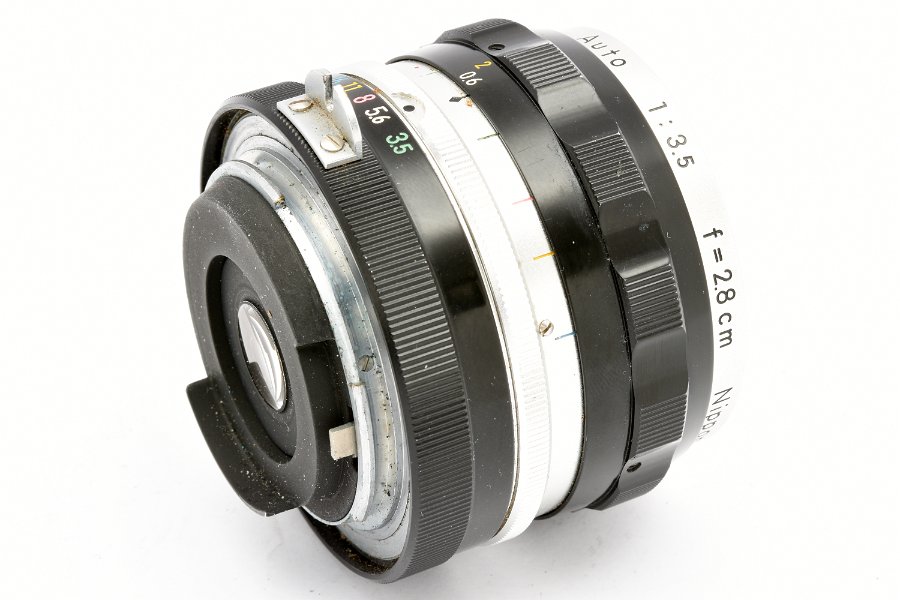

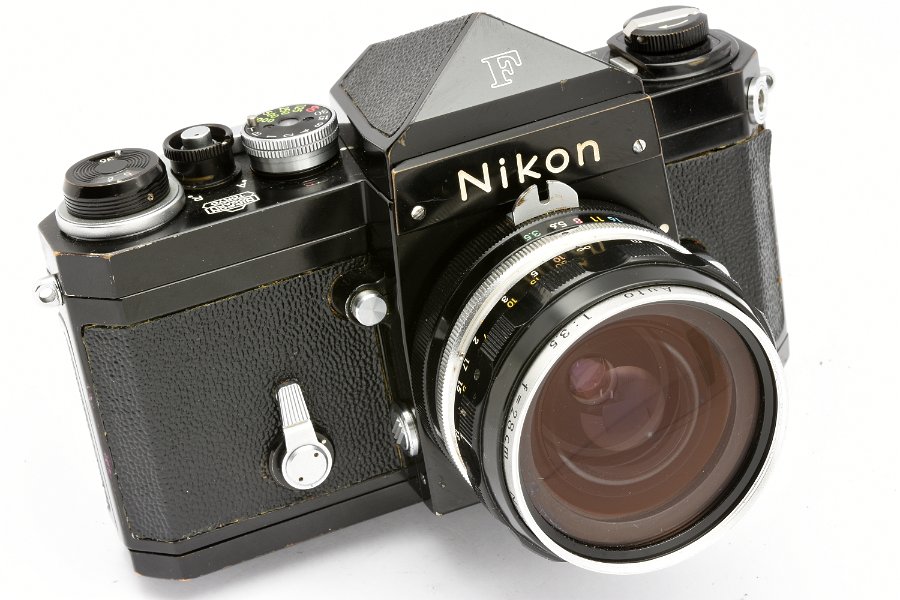

NIKKOR-H Auto 1:3.5 f=2.8cm No.301026

mouseover to enlarge

• «Nippon Kogaku Japan», prod. year 1959/60
• 16th lens produced (first 2.8cm lens was No.301011)
• 6 elements in 6 groups, picture angle 74°
• Chrome front ring, filter ∅ 52mm

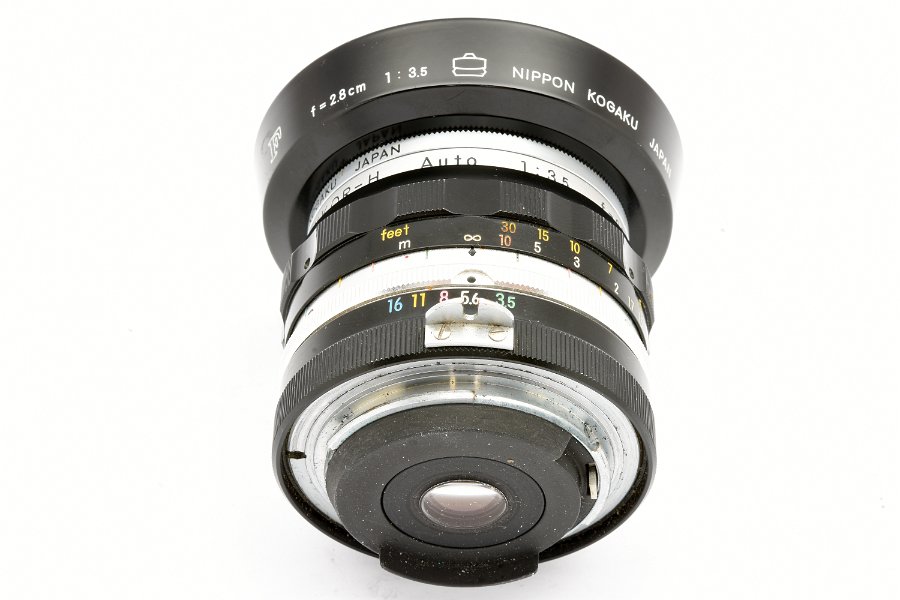

• Distance scale graduated in meters & feet from 0.6m (2 ft.) to ∞
• No «LENS MADE IN JAPAN» engraving
• «PATS.PEND.» on chrome lens barrel
• Milled aperture setting ring with long rear skirt (same as tick-mark lenses), lens cannot be mounted on Nikkormat cameras
• Aperture scale f/3.5 to f/16, 5 iris blades
• No bayonet screws
• Dimensions approx. 61.3mm ∅ x 54mm
• Weight approx. 220g
• NIPPON KOGAKU 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap
• NIPPON KOGAKU F 52mm screw-in lens hood
• NIPPON KOGAKU 52mm L38 screw-in filter, chrome rim
