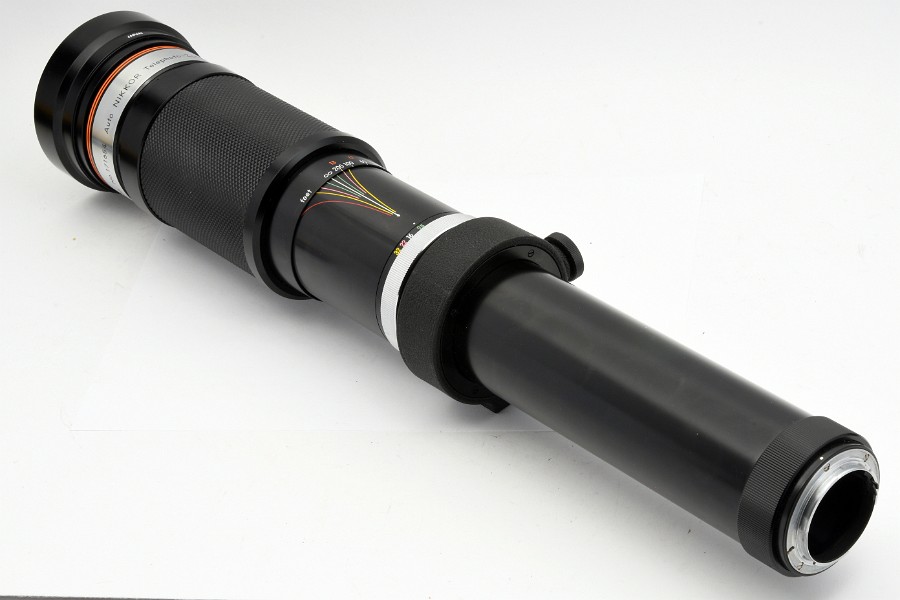

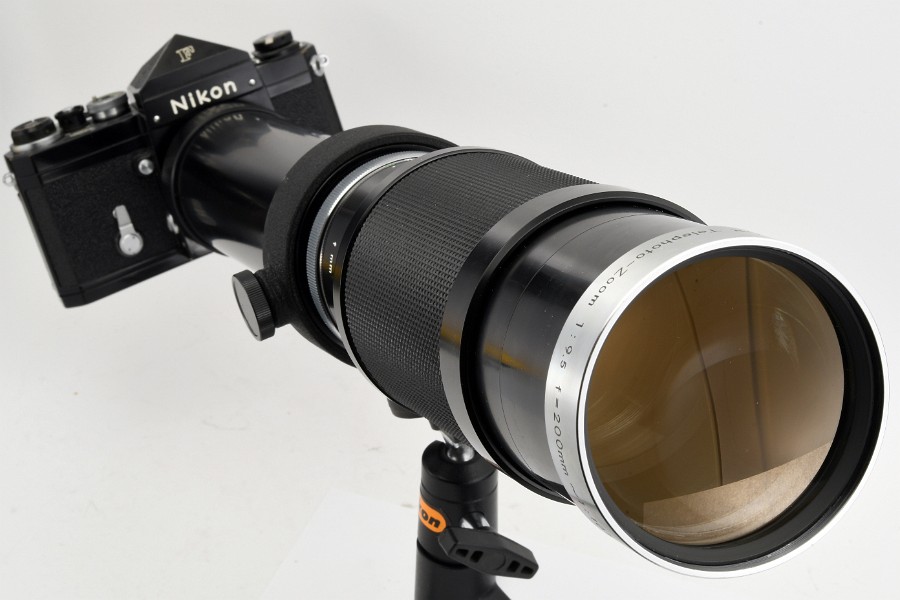

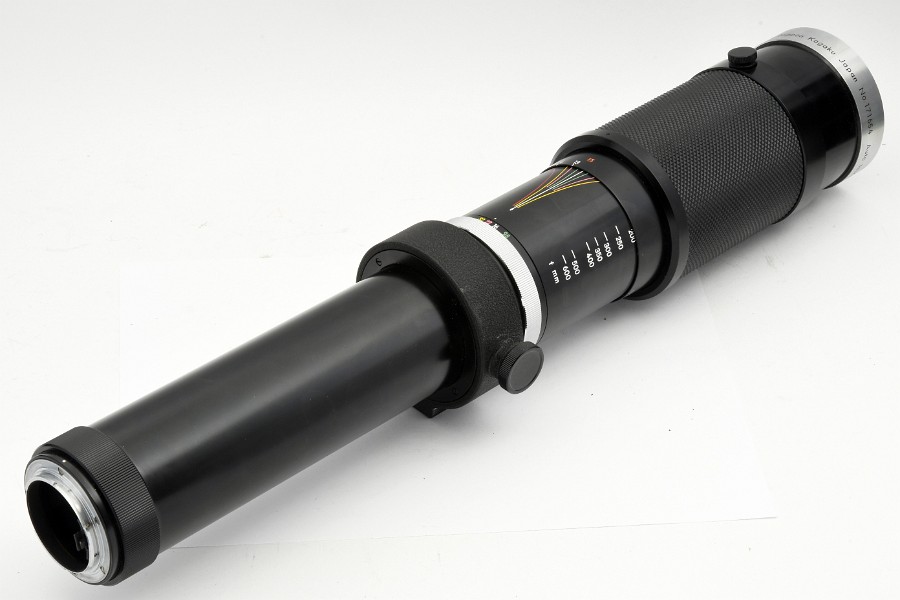

Auto NIKKOR Telephoto-Zoom 1:9.5 f=200mm ~ 1:10.5 f=600mm No.171654

mouseover to enlarge

«Nippon Kogaku Japan», Production year 1963
First 200-600mm lens was No.1713xx
13 elements in 7 groups
Picture angle 12°20′ to 4°10′
Chrome front ring, filter ∅ 82mm
Focusing ring with tick marks

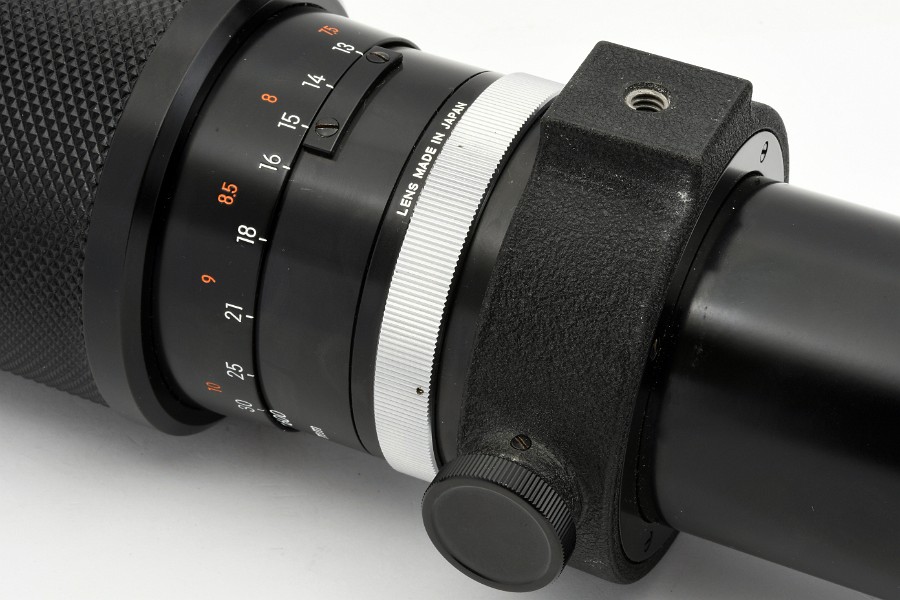

Distance scale graduated in feet from 13ft to infinity (∞), orange scale with close-up lens from 7.5 to 13ft

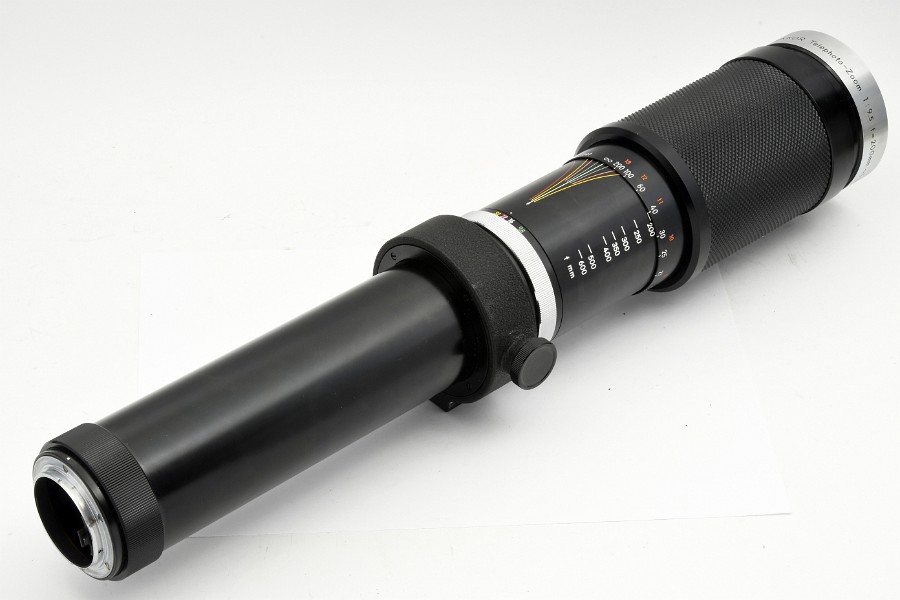

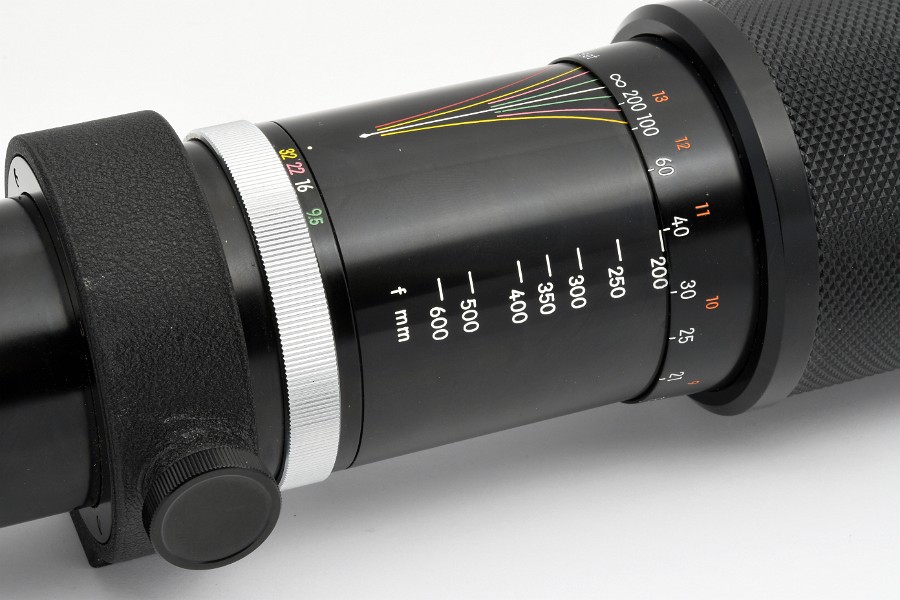

1-ring-zoom, f-scale 200, 250, 300, 350, 400, 500, 600mm, with dash marks
«LENS MADE IN JAPAN» on black aperture ring («M» with vertical sides)
Aperture scale f/9.5 to f/32, 6 iris blades
Built-in tripod mount, square foot
Bayonet fixed by 5 slot screws
Dimensions approx. 89mm ∅ x 490mm
Weight approx. 2,300g

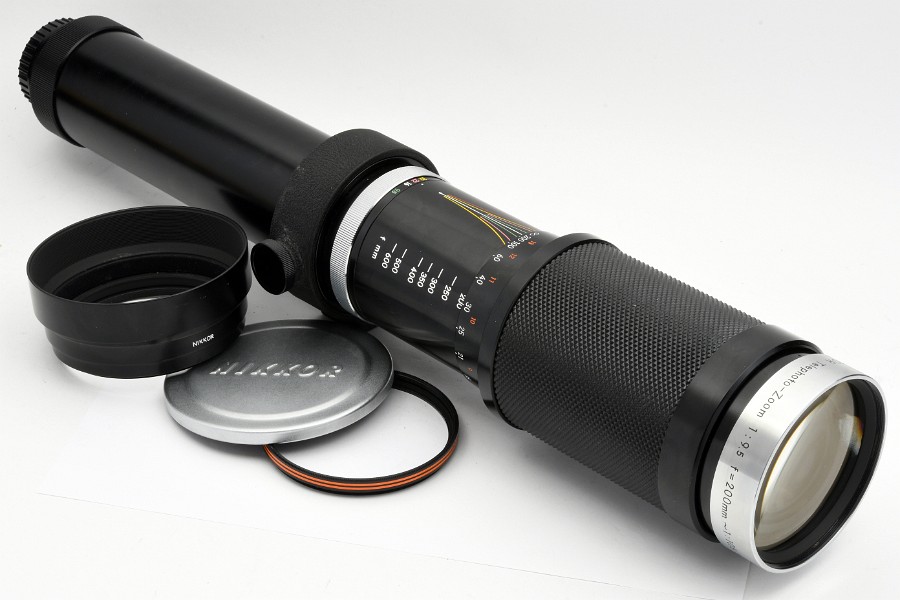

82mm close-up lens with 2 orange stripes
NIKKOR 82mm screw-in lens hood with series IX filter adapter, «JAPAN»

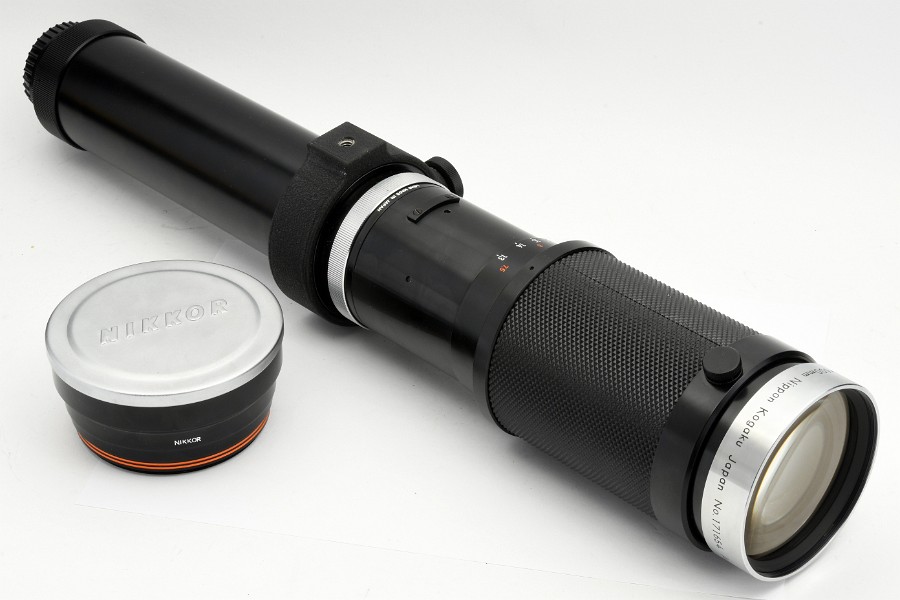

NIKKOR 100mm slip-on front lens cap, chrome
NIPPON KOGAKU F rear lens cap

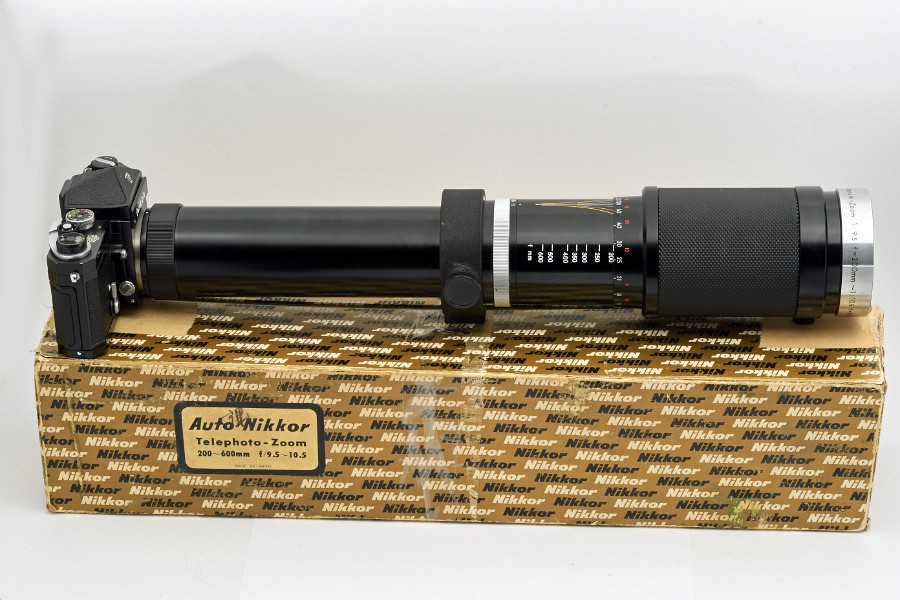

Original maker's box, gold/black/white, «Auto NIKKOR Telephoto-Zoom 200~600mm f/9.5~10.5 #171654»

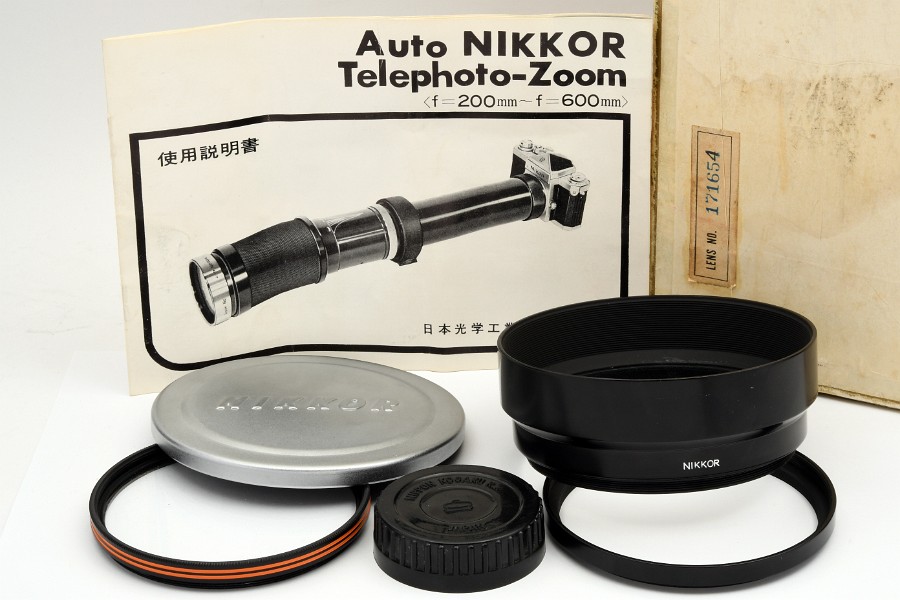

Instructions for Auto NIKKOR Telephoto-Zoom f=200mm~f=600mm, print code (63.8.A)Y
