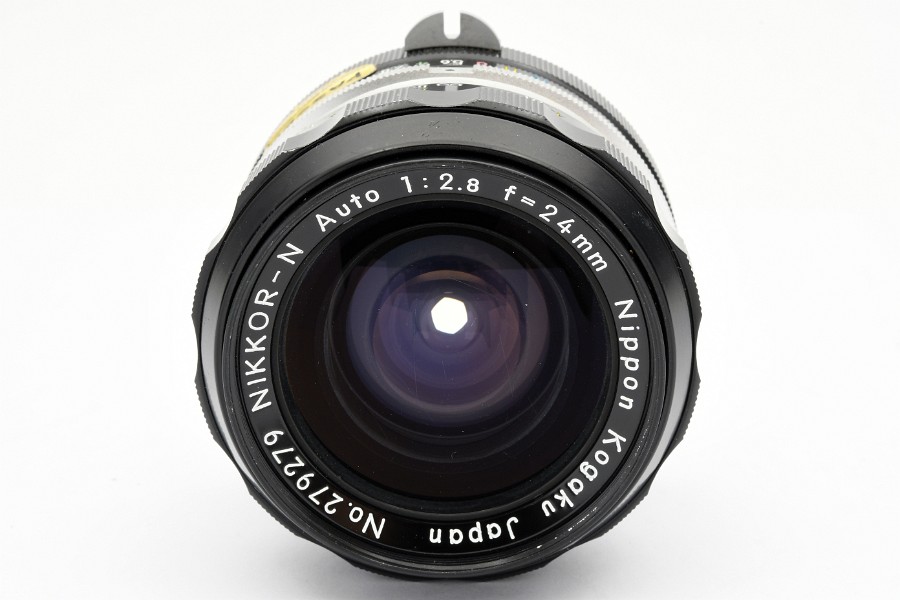

NIKKOR-N Auto 1:2.8 f=24mm No.279279
- «Nippon Kogaku Japan»
- Production year 1969
- First 24mm mark 2 lens was No.257011
- 9 elements in 7 groups
- Picture angle 84°
- Close-range correction system (CRC)
- Black front ring, filter ∅ 52mm
- Scalopped focusing ring
- Distance scale graduated in meters and feet from 0.3m (1 ft.) to infinity (∞)
- «LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)

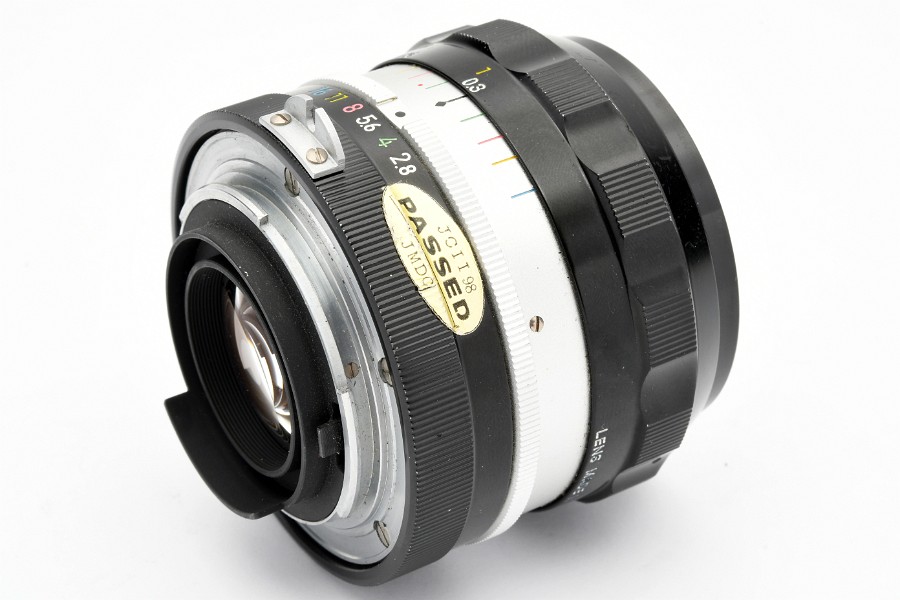

- Ribbed aperture ring, thick
- Aperture scale f/2.8 to f/16
- 6 iris blades

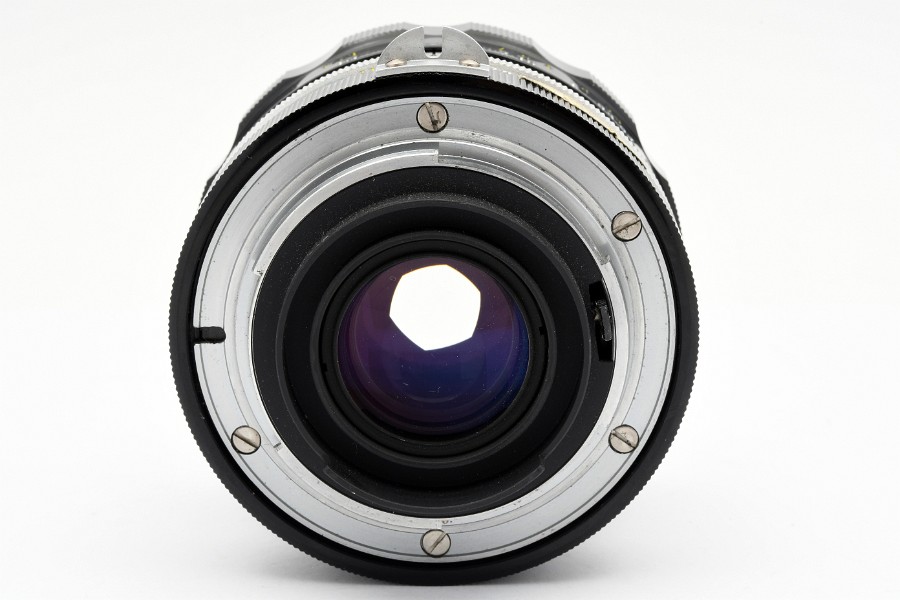

- Bayonet fixed by 5 slot screws
- Dimensions approx. 64.5mm ∅ x 59.5mm
- Weight approx. 290g

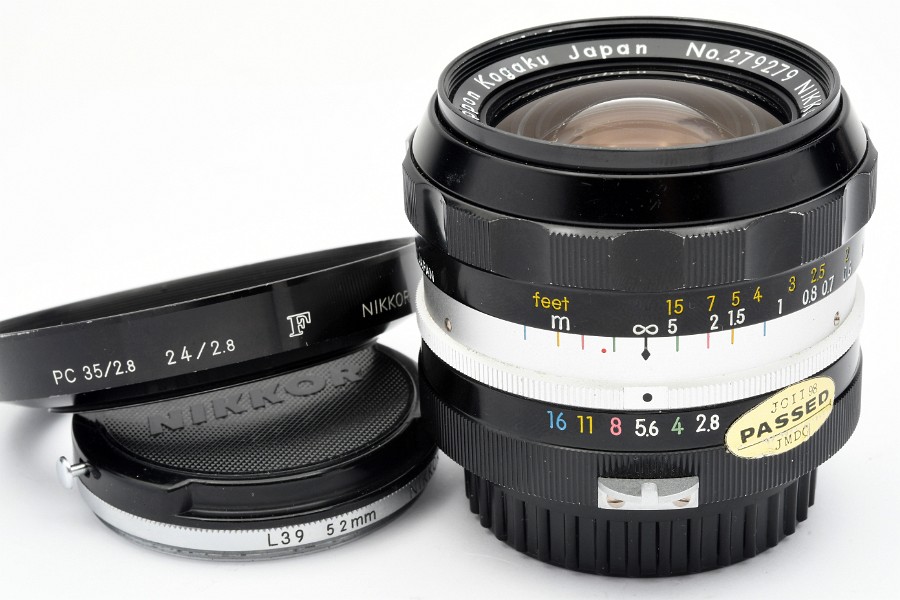

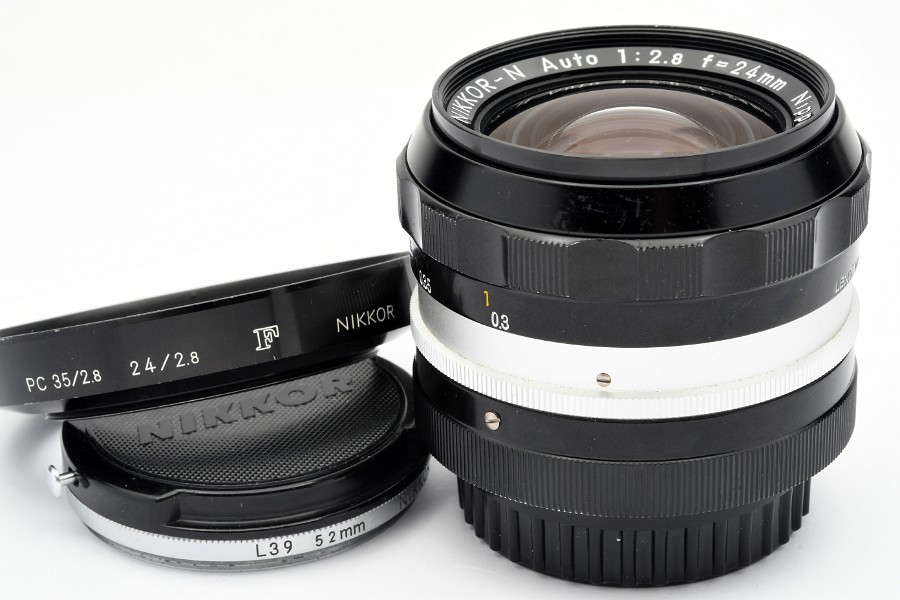

- NIKKOR 52mm snap-on front lens cap
- NIPPON KOGAKU F rear lens cap

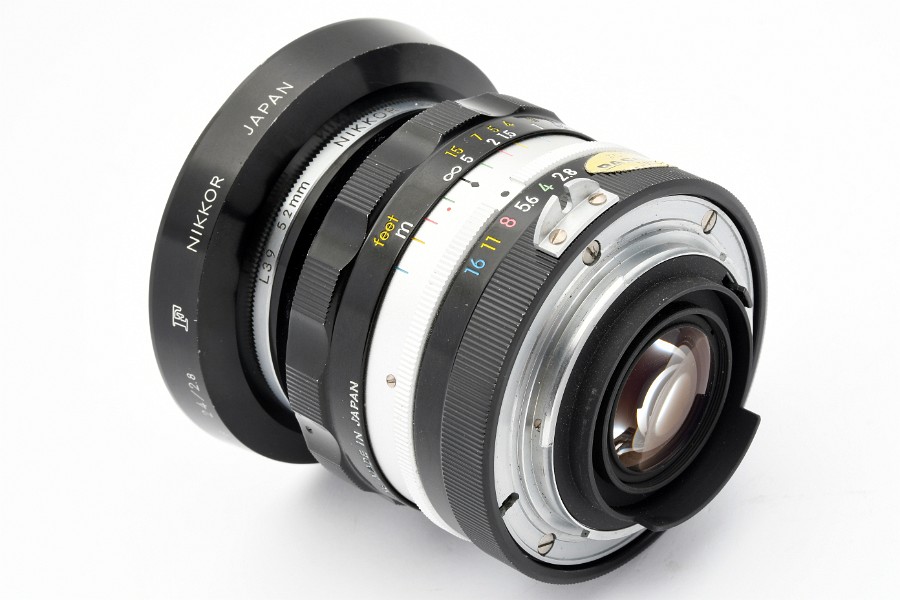

- NIKKOR F 52mm screw-in lens hood,
«PC 35/2.8 24/2.8»
