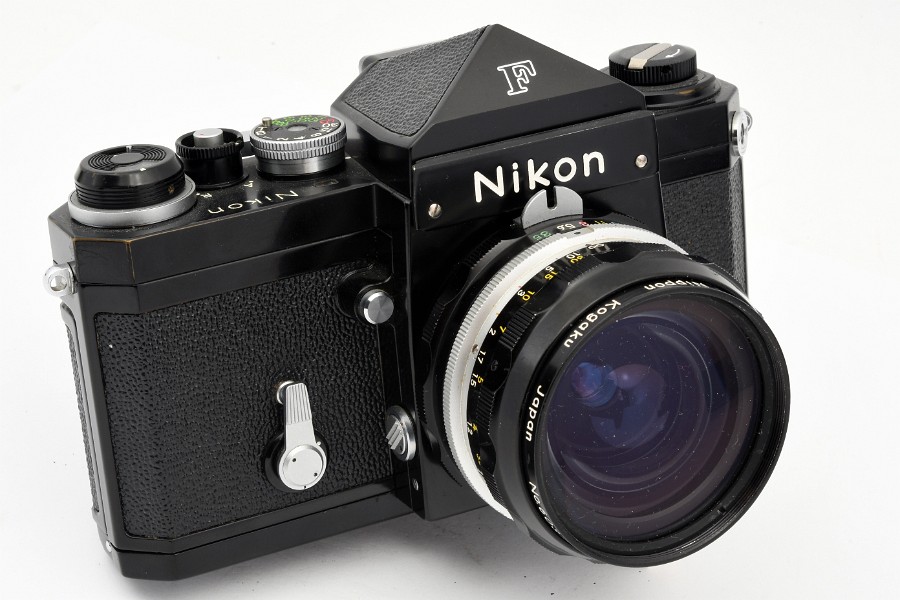

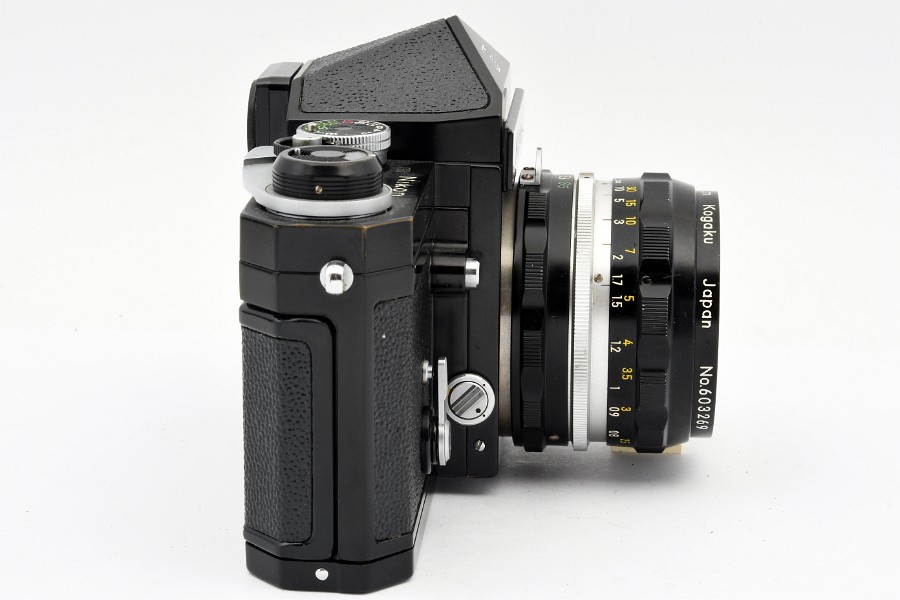

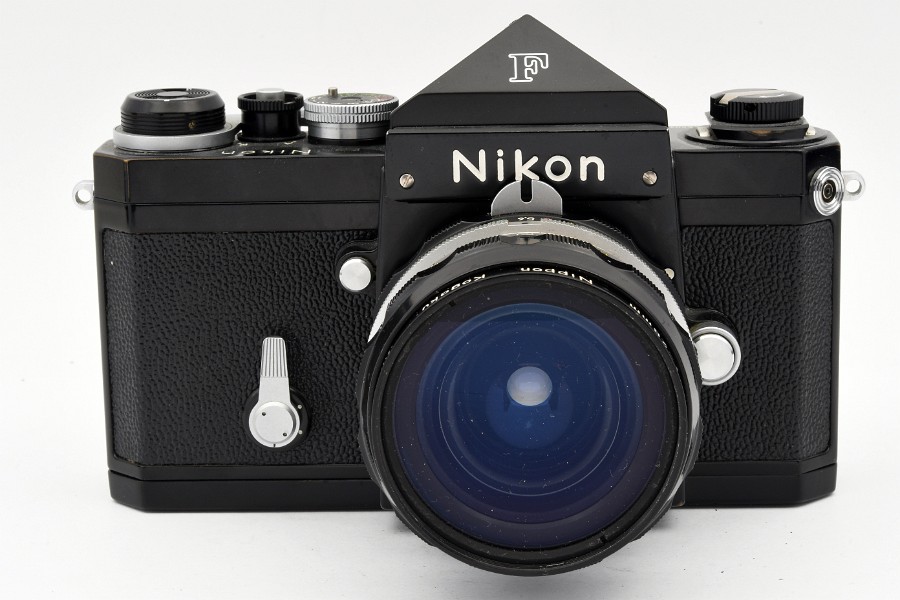

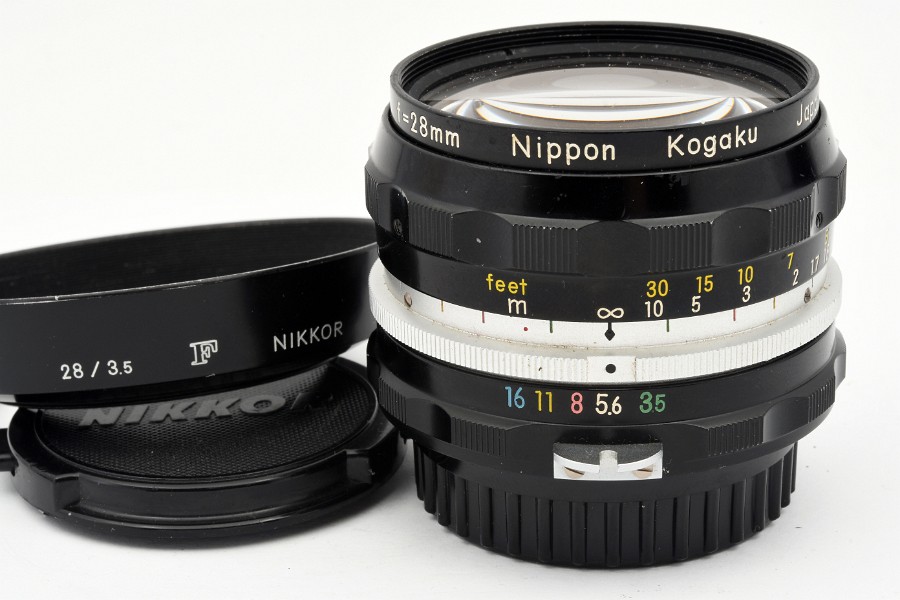

NIKKOR-H Auto 1:3.5 f=28mm No.603269

mouseover to enlarge

«Nippon Kogaku Japan»
Production year 1968
769th lens produced (first black nose 28/3.5 lens was #602501?, earliest known black nose 28/3.5 lens is No.602637)
6 elements in 6 groups
Picture angle 74°
Black front ring, filter ∅ 52mm
Distance scale graduated in meters and feet from 0.6m (2 ft.) to ∞

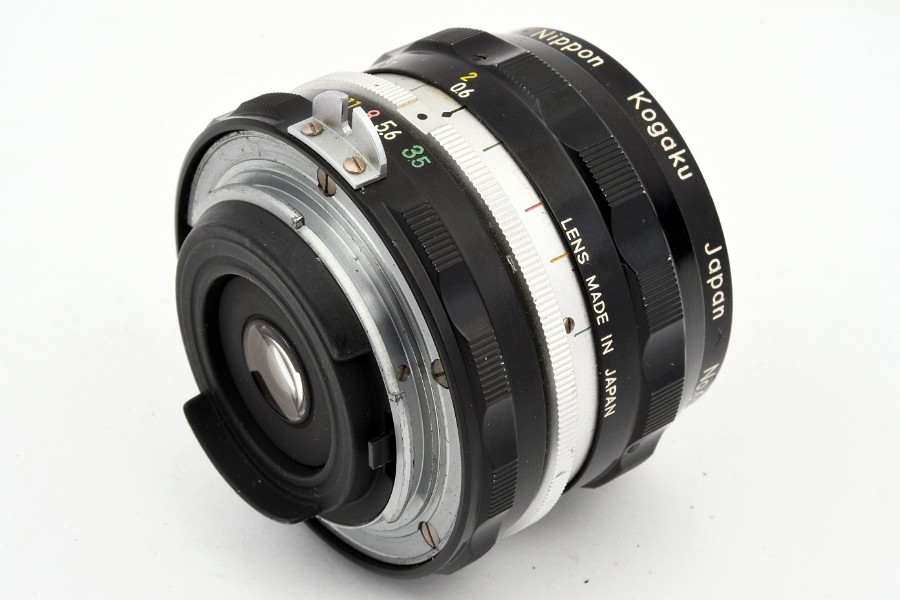

«LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)
Scalloped aperture setting ring

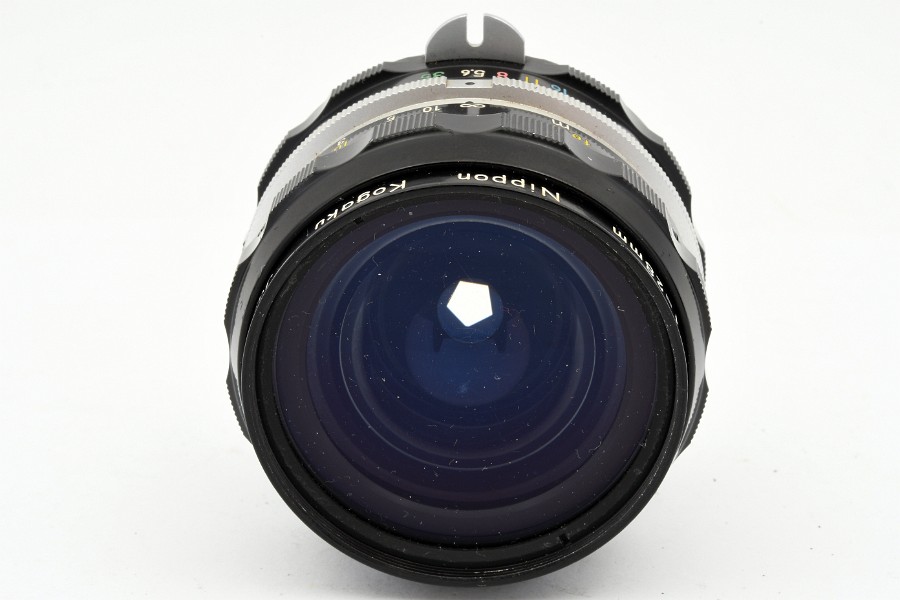

Aperture scale f/3.5 to f/16, 5 iris blades

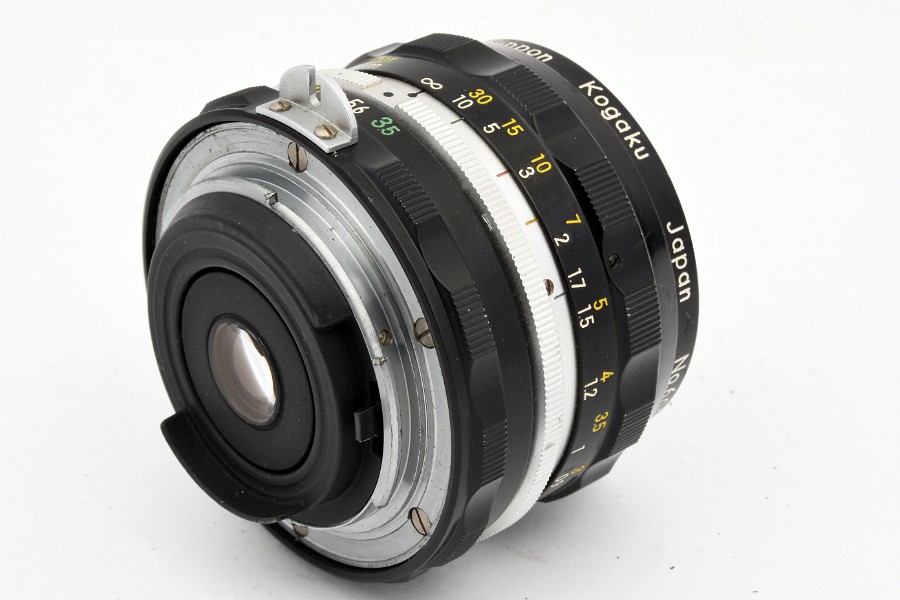

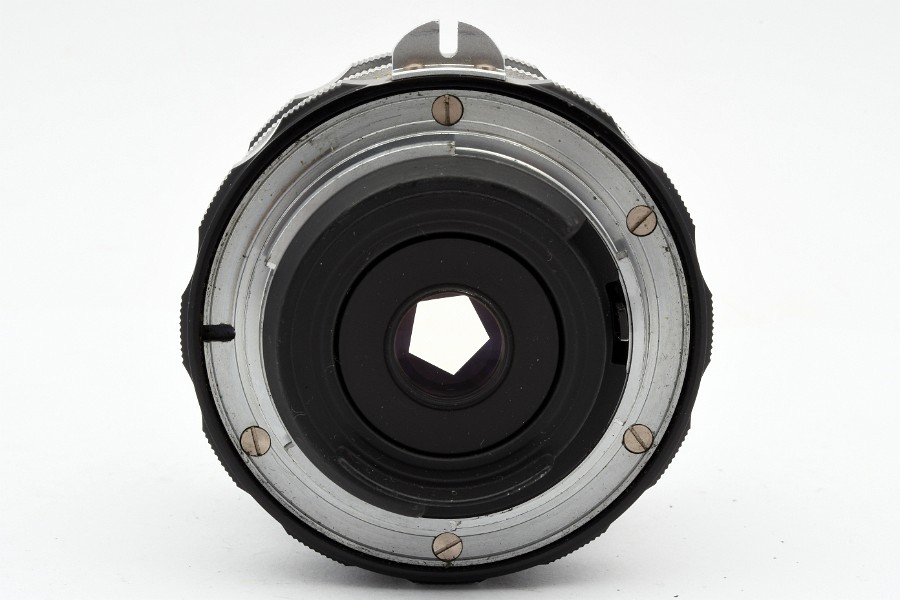

Bayonet fixed by 5 slot screws
Dimensions approx. 62.5mm ∅ x 54mm
Weight approx. 215g
NIKKOR 52mm snap-on front lens cap
NIPPON KOGAKU F rear lens cap

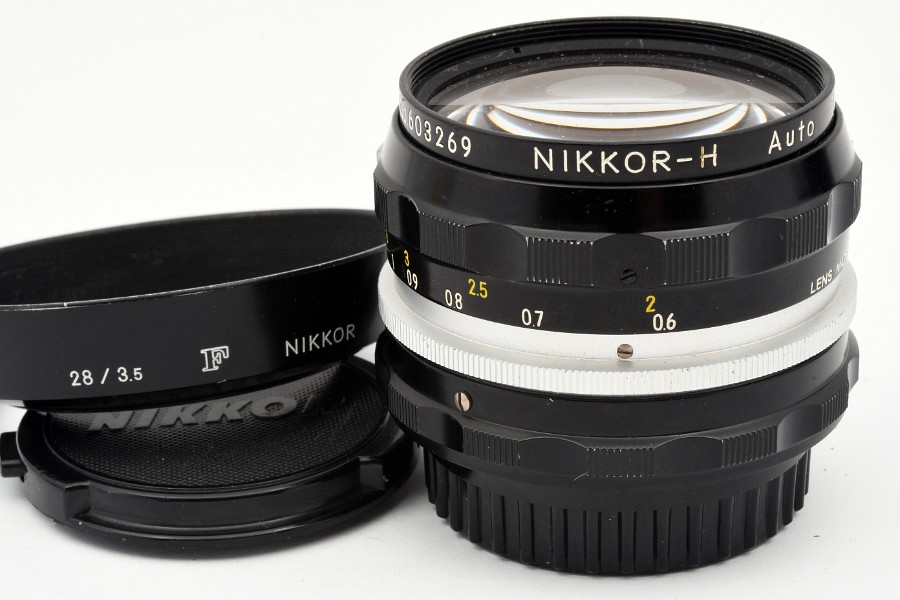

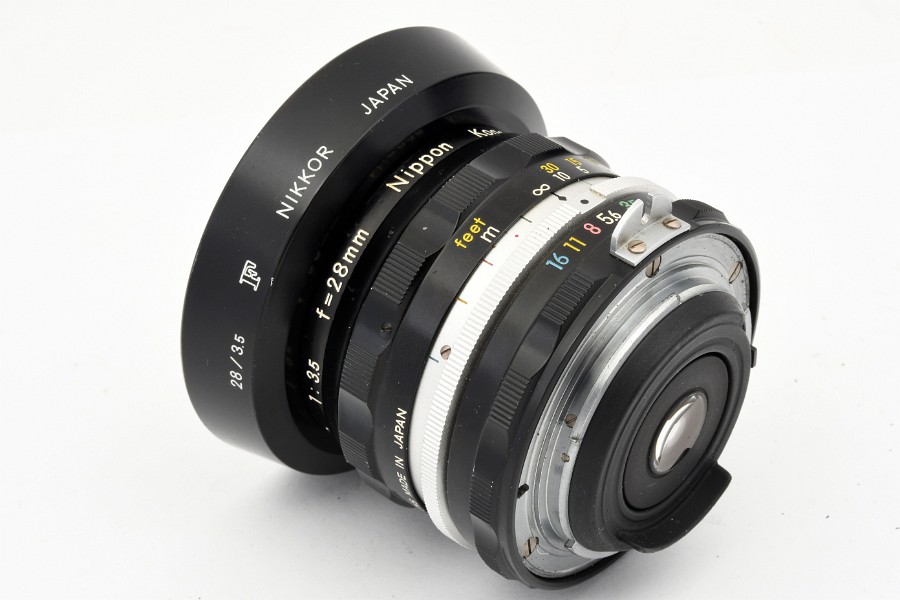

NIKKOR F 52mm screw-in lens hood, «28/3.5»
