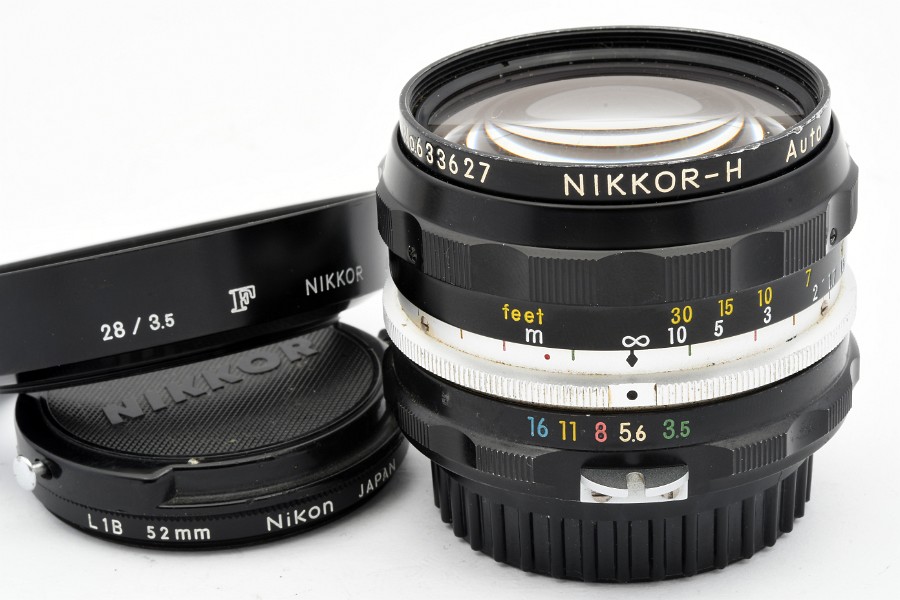

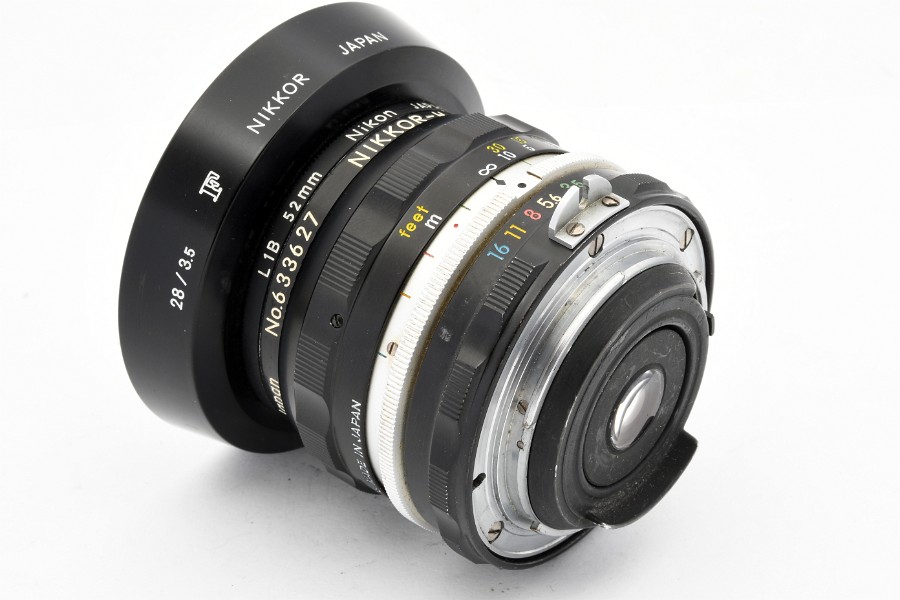

NIKKOR-H Auto 1:3.5 f=28mm No.633627

mouseover to enlarge

• «Nippon Kogaku Japan»
• Production year 1969/70
• First black nose 28/3.5 lens was #602501(?), earliest known black 28/3.5 lens is No.602654
• 6 elements in 6 groups
• Picture angle 74°
• Black front ring, filter ∅ 52mm
• Distance scale graduated in meters and feet from 0.6m (2 ft.) to ∞

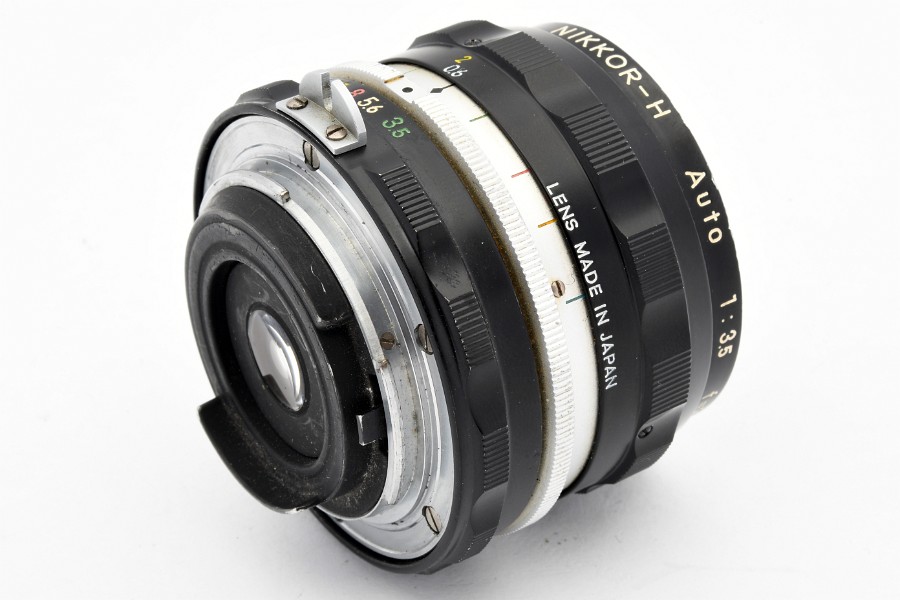

• «LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)

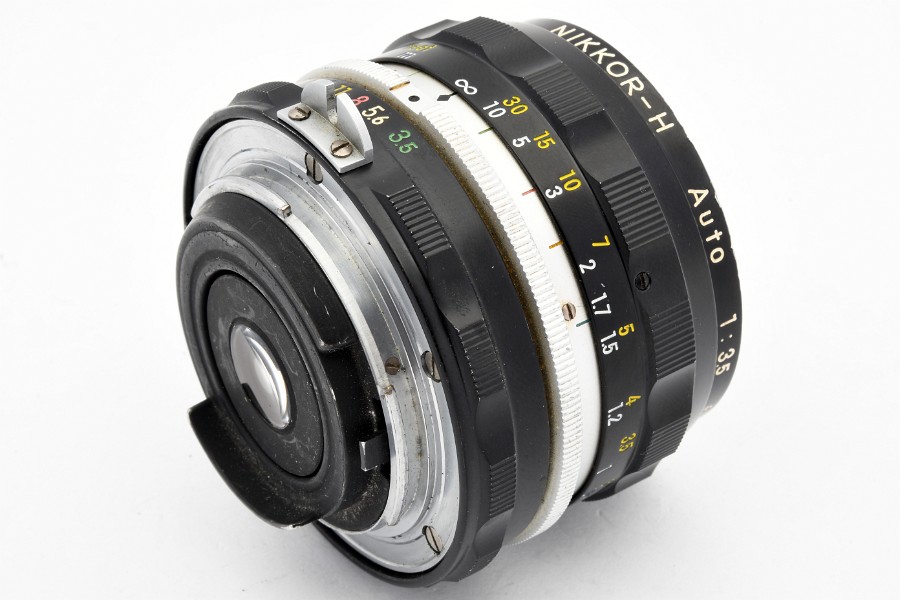

• Scalloped aperture setting ring

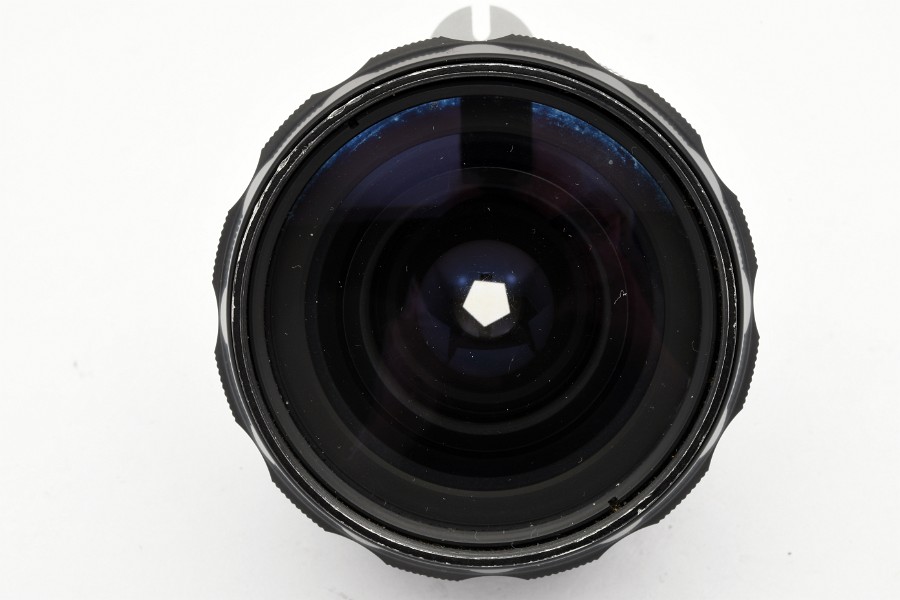

• Aperture scale f/3.5 to f/16, 5 iris blades

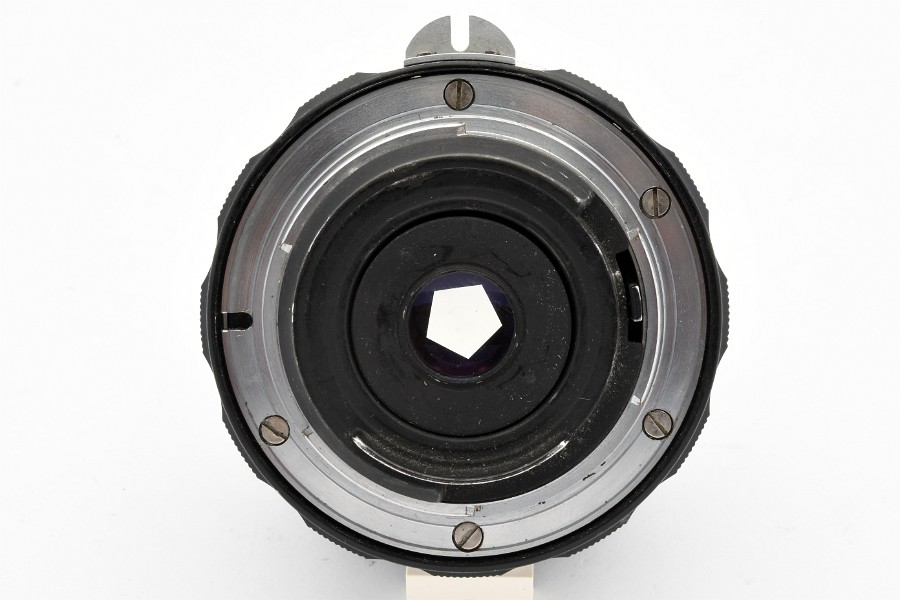

• Bayonet fixed by 5 slot screws
• Dimensions approx. 62.5mm ∅ x 54mm
• Weight approx. 215g

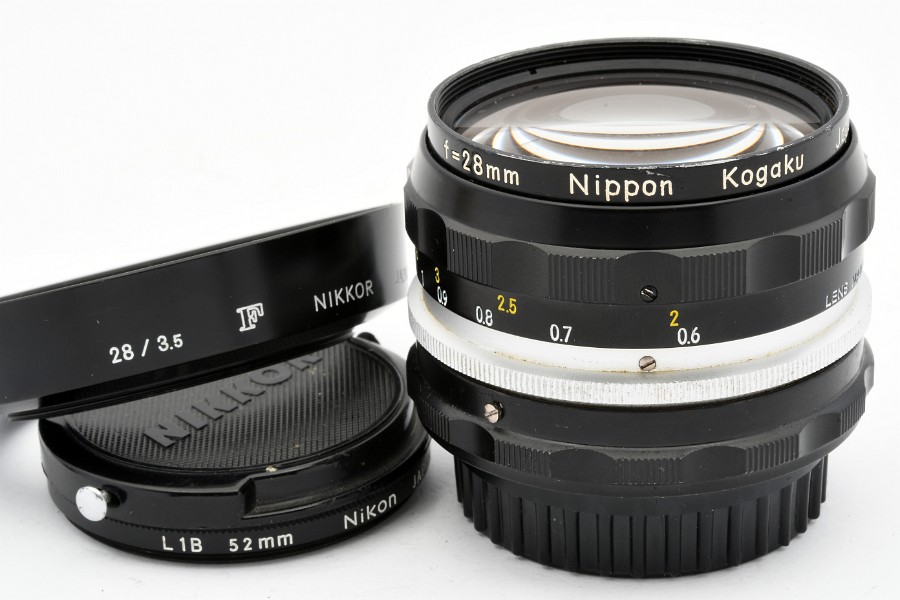

• NIKKOR 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap
• NIKKOR F 52mm screw-in lens hood, 28/3.5
• Nikon 52mm L1B screw-in filter, black rim
