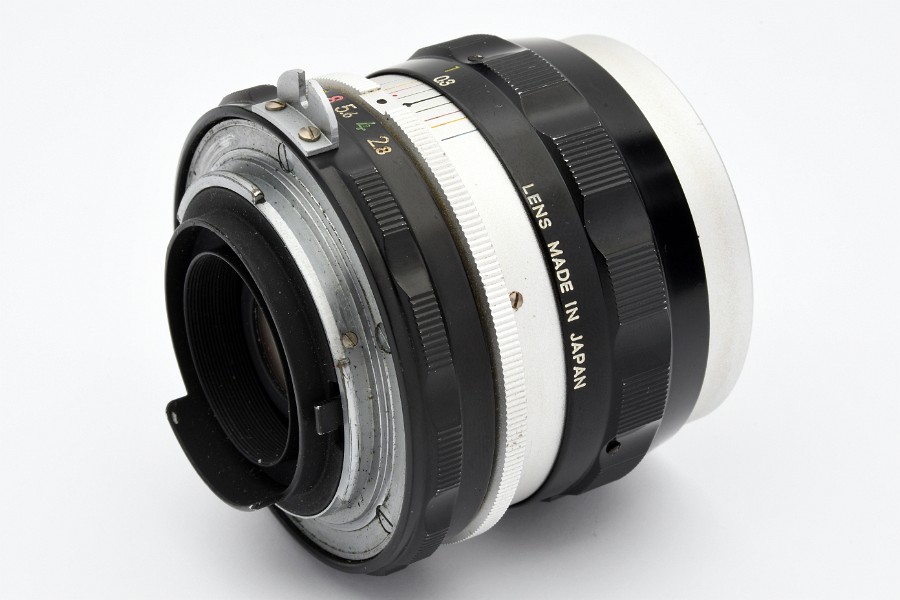

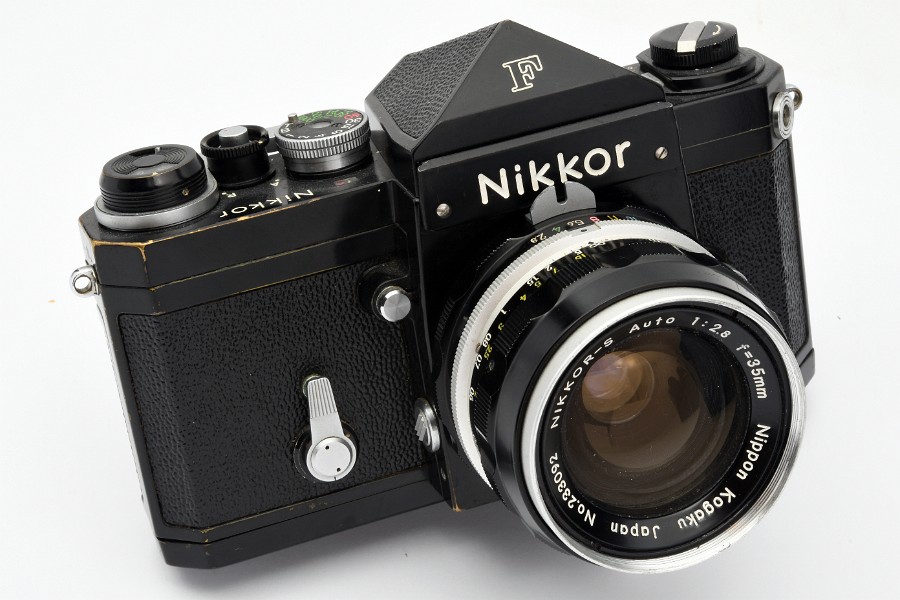

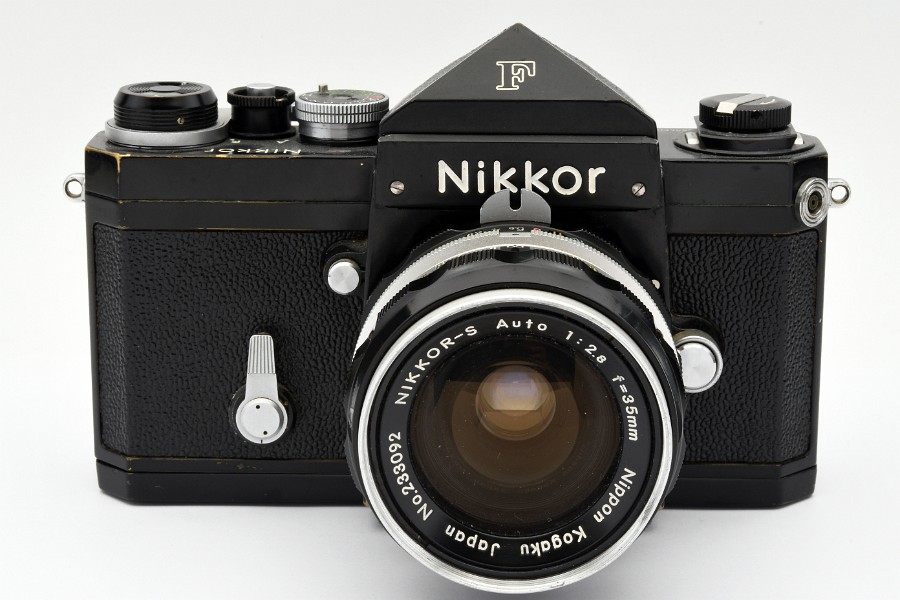

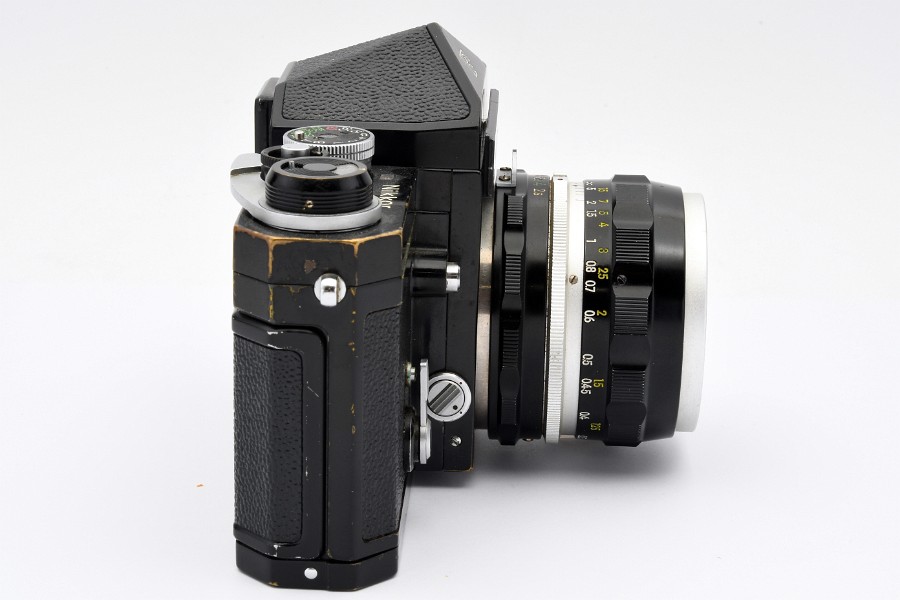

NIKKOR-S Auto 1:2.8 f=35mm No.233092
mouseover to enlarge
- «Nippon Kogaku Japan»
- Production year 1967
- First 35mm f/2.8 mark 2 lens was No.231011
- 7 elements in 6 groups
- Picture angle 62°
- Chrome front ring, filter ∅ 52mm

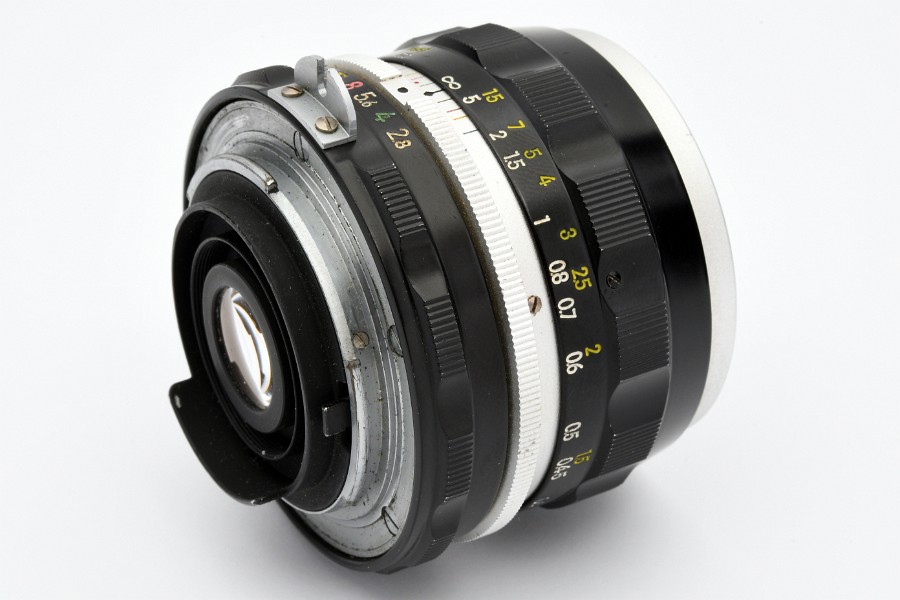

- Distance scale graduated in meters and feet from 0.3m (1 ft.) to infinity (∞)
- «LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)
- Scalloped aperture setting ring
- Aperture scale f/2.8 to f/16
- 6 iris blades

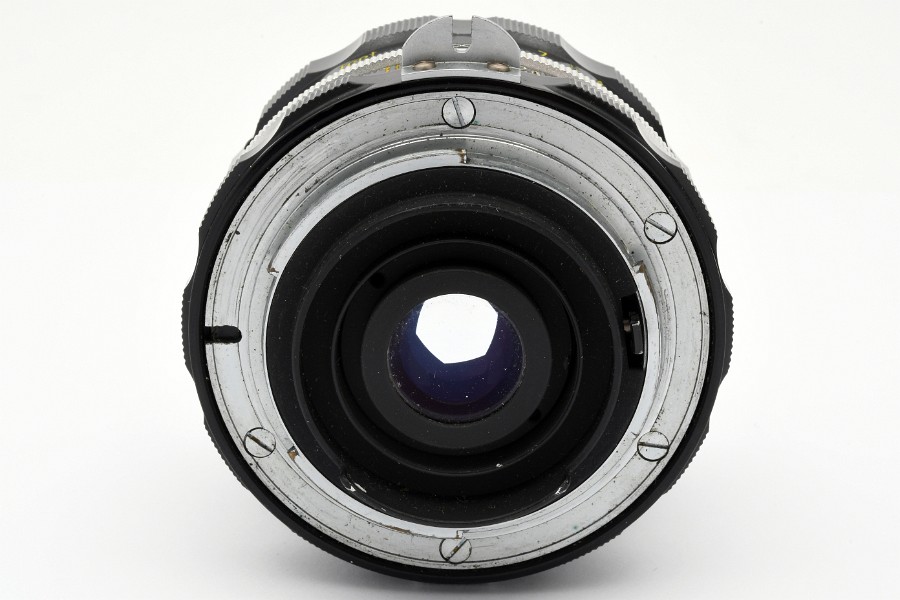

- Bayonet fixed by 5 slot screws
- Dimensions approx. 62.5mm ∅ x 57.5mm
- Weight approx. 200g

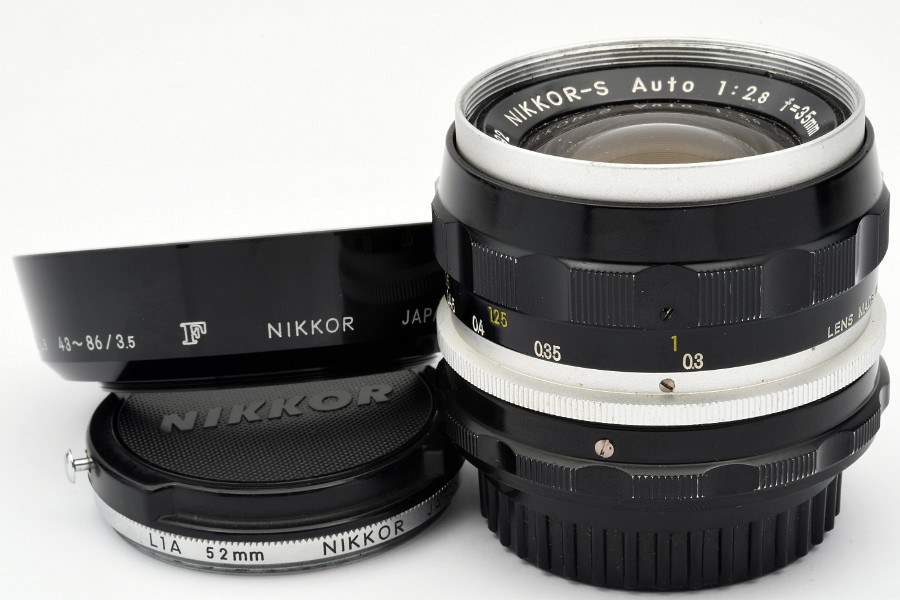

- NIKKOR 52mm snap-on front lens cap
- NIPPON KOGAKU F rear lens cap

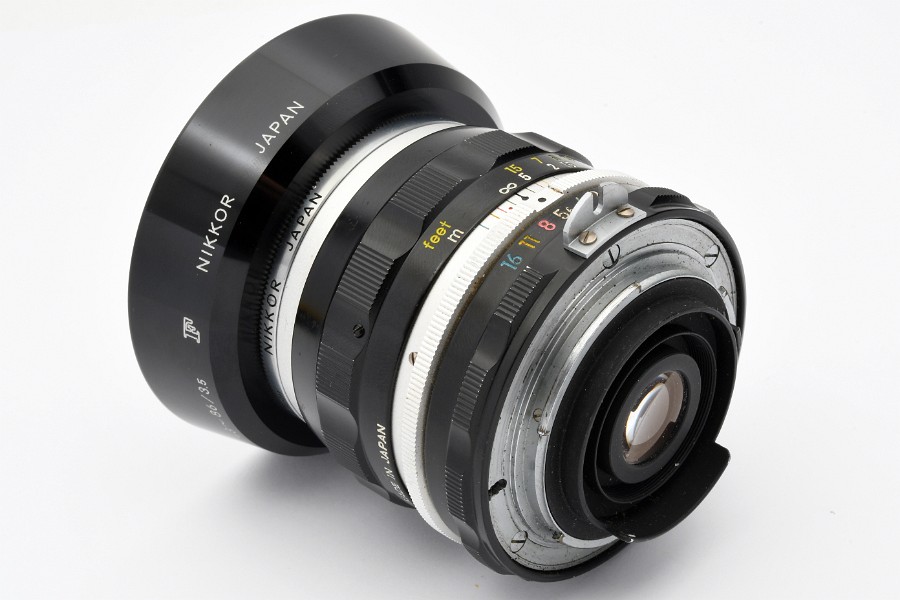

- NIKKOR F 52mm screw-in lens hood,
«35/2 35/2.8 43~86/3.5» - NIKKOR 52mm L1A screw-in filter, chrome rim
