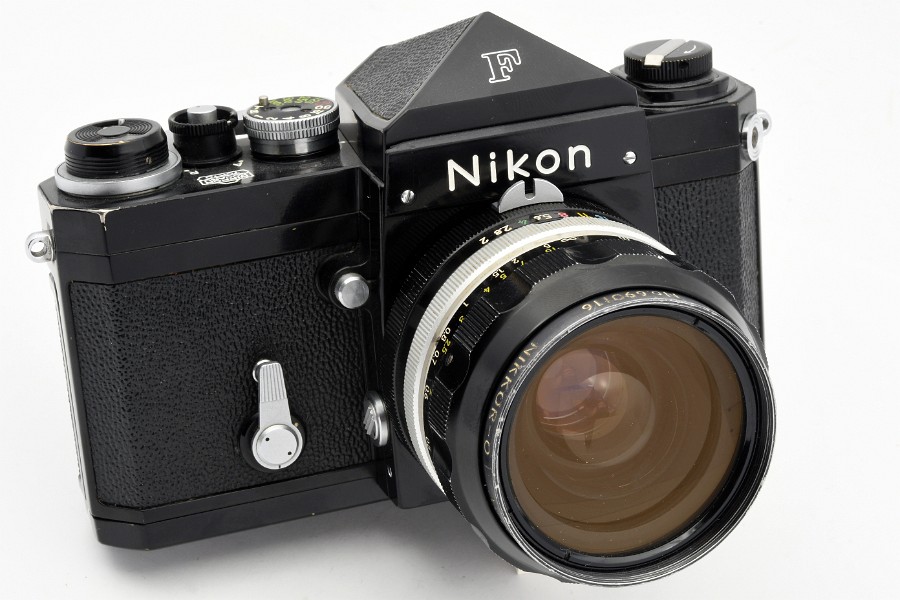

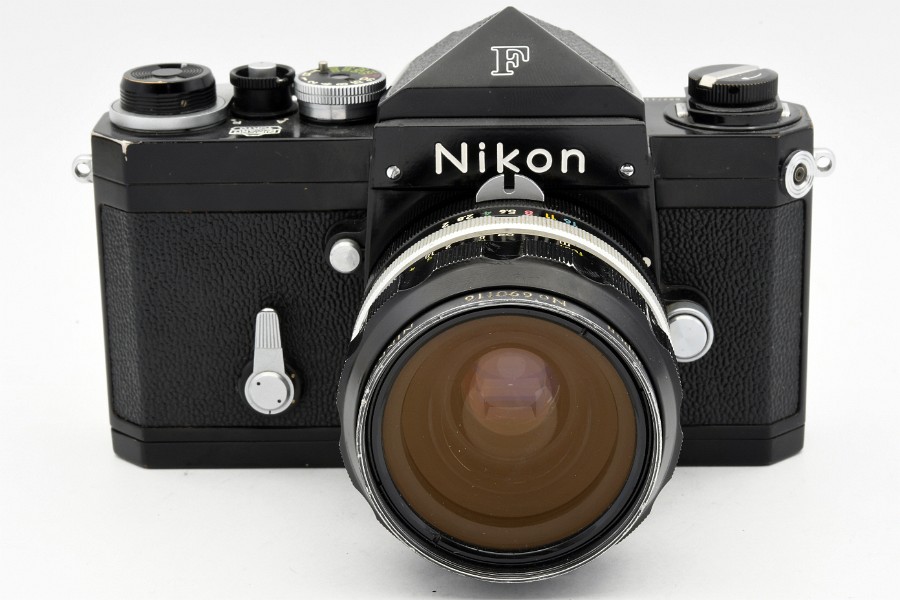

NIKKOR-O Auto 1:2 f=35mm No.690116
mouseover to enlarge
- «Nippon Kogaku Japan»
- Production year 1965
- 16th lens produced (first 35/2 lens was No.690101)
- 8 elements in 6 groups, Picture angle 62°
- Rear element with amber coating
- Black front ring, filter ∅ 52mm
- Distance scale graduated in meters and feet from 0.3m (1 ft.) to infinity (∞)
- «LENS MADE IN JAPAN» on black focusing ring («M» with vertical sides)
- Ribbed aperture ring, held by inner retaining ring
- Aperture scale f/2 to f/16, 7 iris blades
- Bayonet fixed by 5 slot screws
- Dimensions approx. 63.5mm ∅ x 61mm
- Weight approx. 280g
- NIKKOR 52mm snap-on front lens cap
- NIPPON KOGAKU F rear lens cap
- NIKKOR F 52mm screw-in lens hood, 35/2 35/2.8 43~86/3.5
- Nikon 52mm L38 screw-in filter, chrome rim
- Pair with 35mm f/2 lens No.690117
