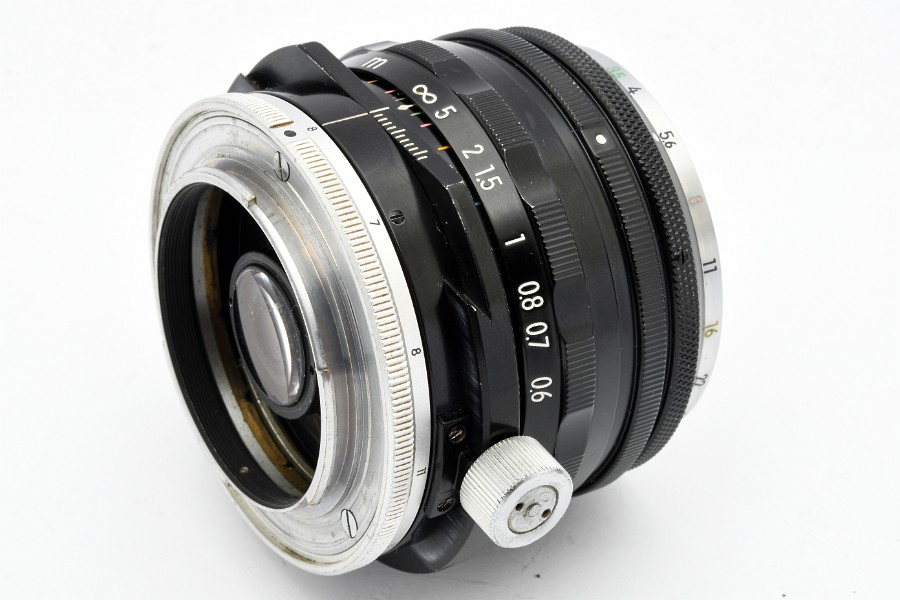

PC-NIKKOR 1:3.5 f=35mm No.102287
mouseover to enlarge
- «Nippon Kogaku Japan», Production year 1962
- 183rd lens produced (first 35mm PC lens was No.102105)
- 6 elements in 6 groups, Picture angle 62°
- Chrome front ring, filter ∅ 52mm
- Preset aperture, Scale f/3.5 to f/32, 6 iris blades
- distance scale graduated in meters from 0.3m to infinity (∞)
- no «LENS MADE IN JAPAN»
- Chrome knob to shift the lens up to a maximum of 11mm, dash index
- «PATS.PEND.» on black lens barrel
- Rotating mount, 12 click stops at 30° intervals
- bayonet fixed by 3 slot screws
- dimensions approx. 70mm ∅ x 56.5mm
- weight approx. 290g
- NIKKOR 52mm snap-on front lens cap
- NIPPON KOGAKU F rear lens cap
- Nikon F screw-in lens hood, f= 2.8cm 1:3.5
- Nikon 52mm L39 screw-in filter, chrome rim
