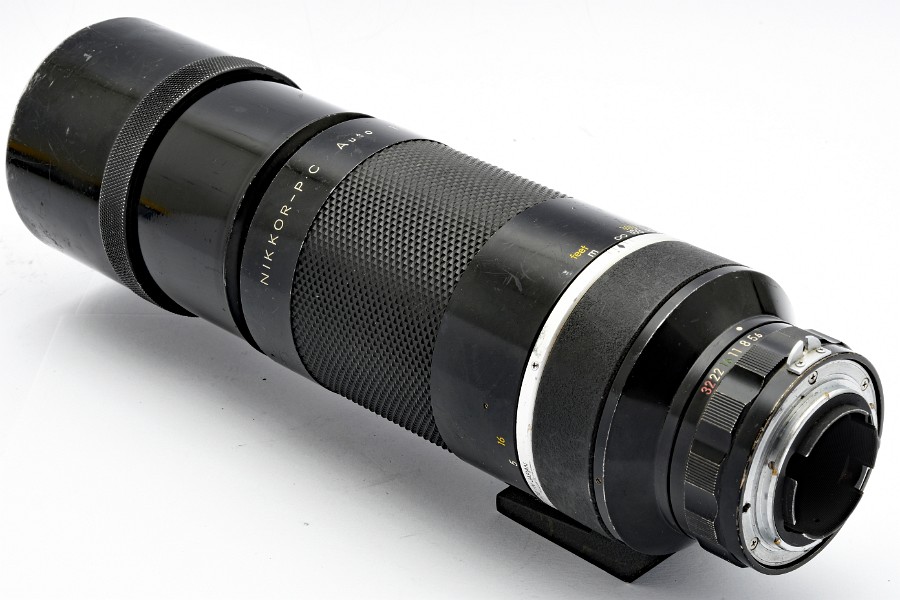

NIKKOR-P·C Auto 1:5.6 f=400mm 257099

mouseover to enlarge

«Nikon»
Production year 1974
1'069th of approx. 1'400 lenses produced (first 400mm f/5.6 «C» lens was #256031)
5 elements in 3 groups, use of fluorite crystal and special rare-earth glass (ED-glass?)
Picture angle 6°10′
Built-in retractable lens hood
Black front ring, filter ∅ 72mm
Lens data engraved on focusing ring
Distance scale graduated in meters & feet from 5m (16 ft.) to infinity (∞)
«LENS MADE IN JAPAN» on chrome DOF-ring

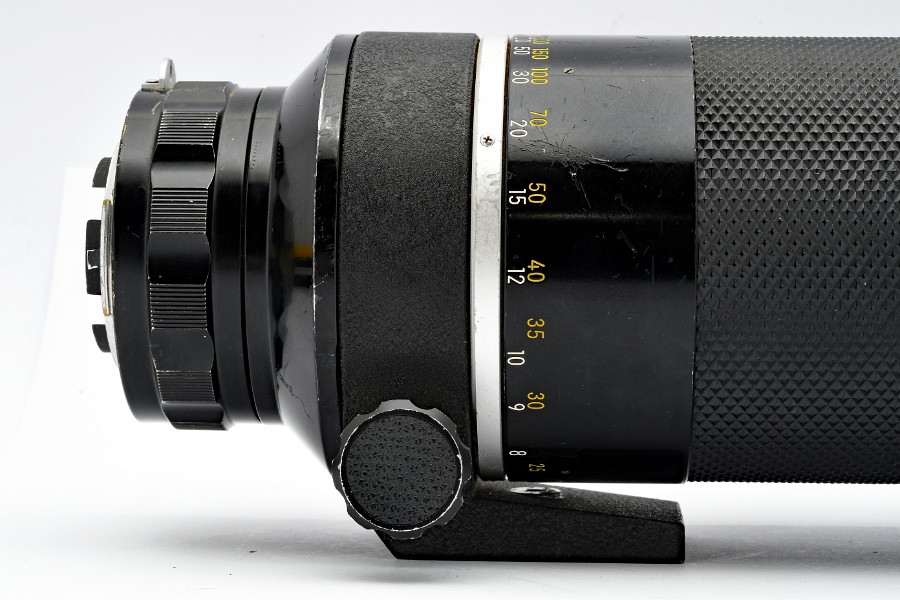

Tripod collar, revolving
Scalloped aperture setting ring
Aperture scale f/5.6 to f/32, 7 iris blades
Bayonet fixed by 5 cross-head screws
Dimensions approx. 84.5mm ∅ x 255mm
Weight approx. 1,400g
Nikon 72mm screw-in front lens cap
Nikon LF-1 rear lens cap
NIKKOR 72mm L39 screw-in filter, black rim
