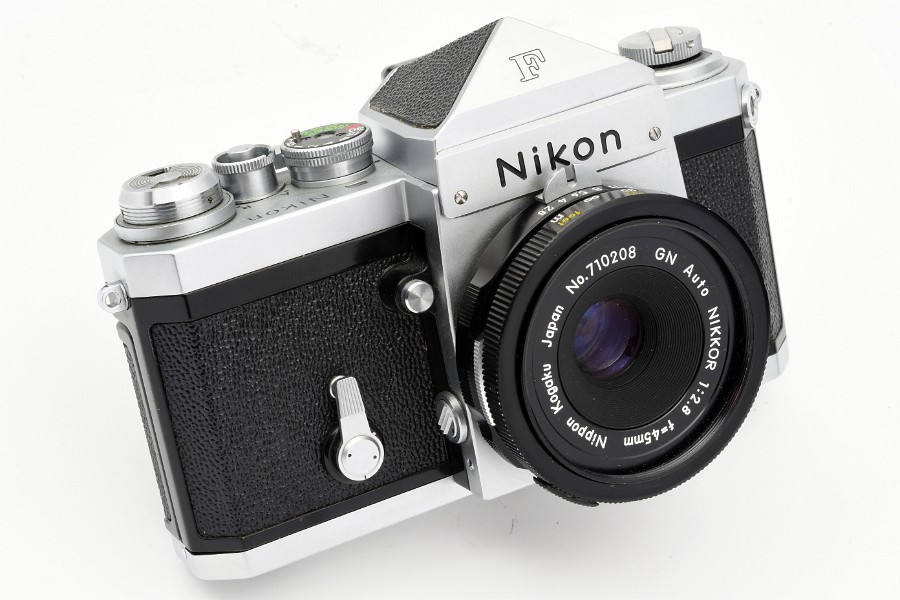

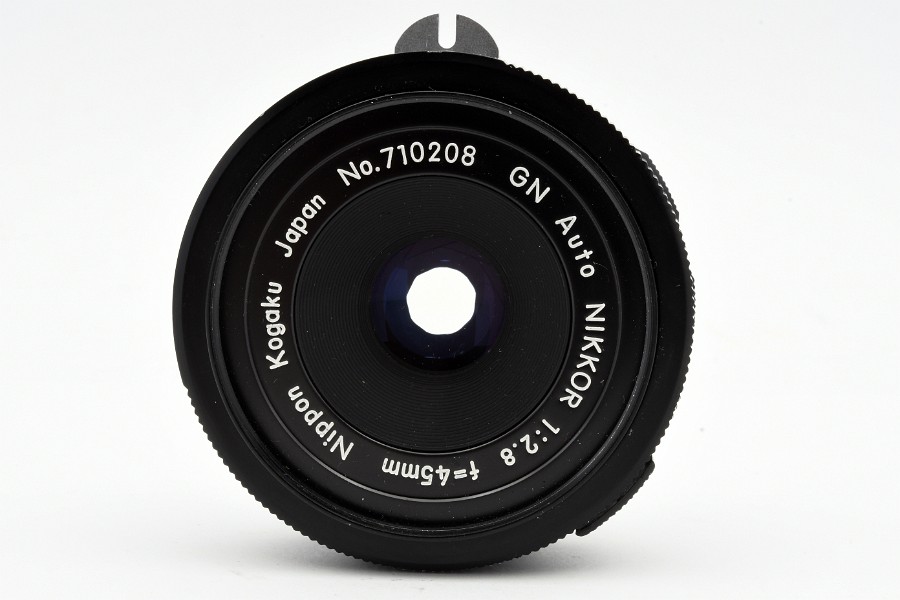

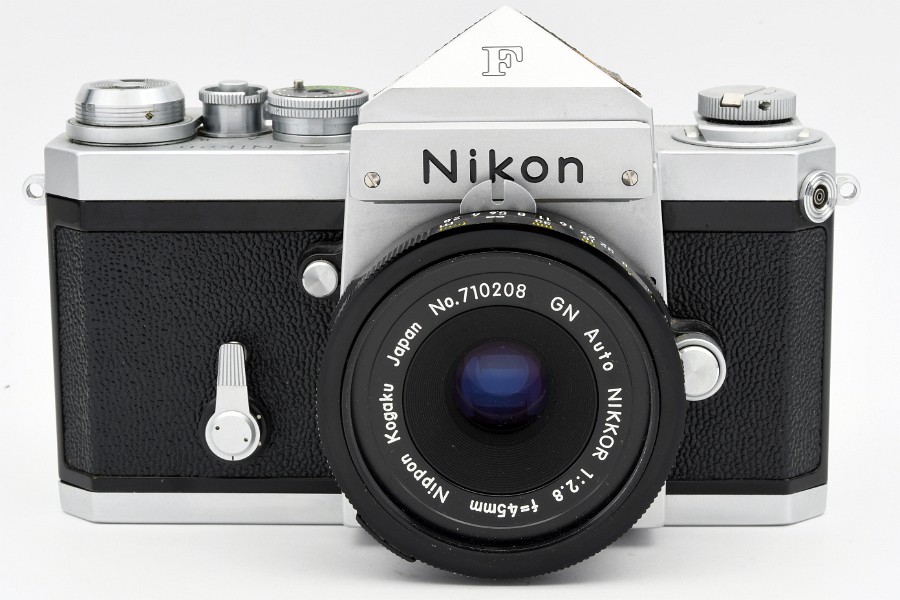

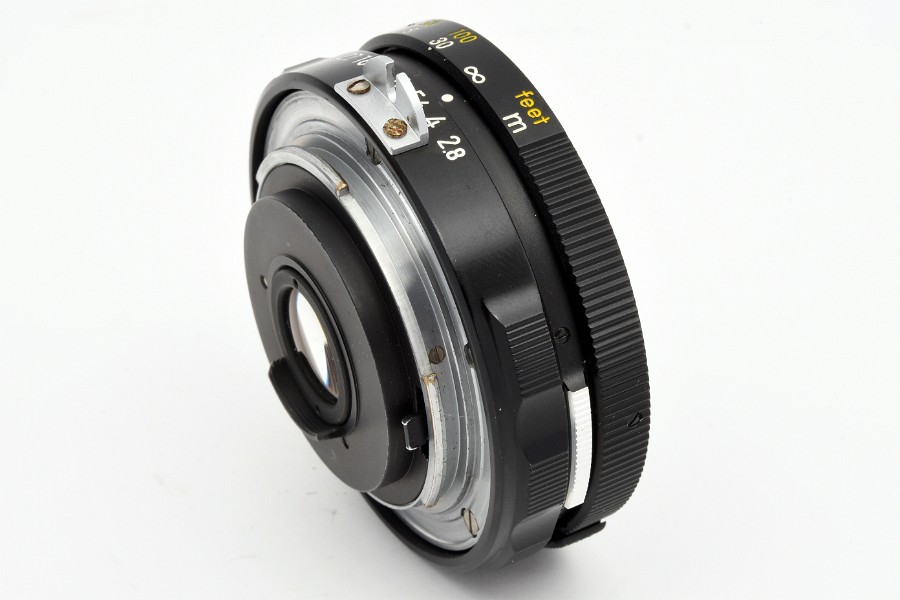

GN Auto NIKKOR 1:2.8 f=45mm No.710208

mouseover to enlarge

• Production year 1968, «Nippon Kogaku Japan»
• 108th lens produced, (first 45mm GN lens was No.710101)
• 4 elements in 3 groups, Picture angle 51°
• Black front ring, filter ∅ 52mm
• Focusing ring with reversed direction of rotation

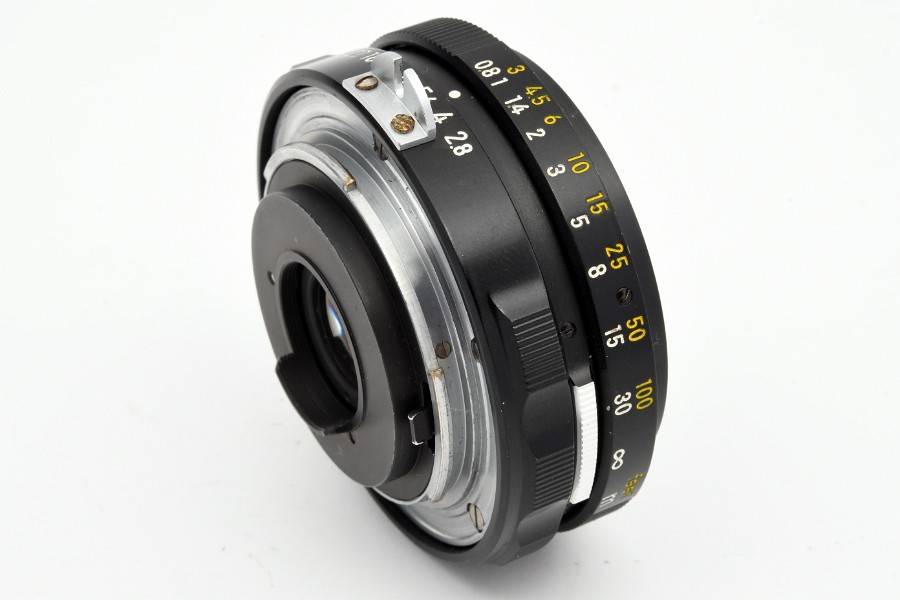

• Distance scale graduated in meters and feet from 0.8m (3 ft.) to infinity (∞)
• «LENS MADE IN JAPAN» on black lens barrel («M» with vertical sides)

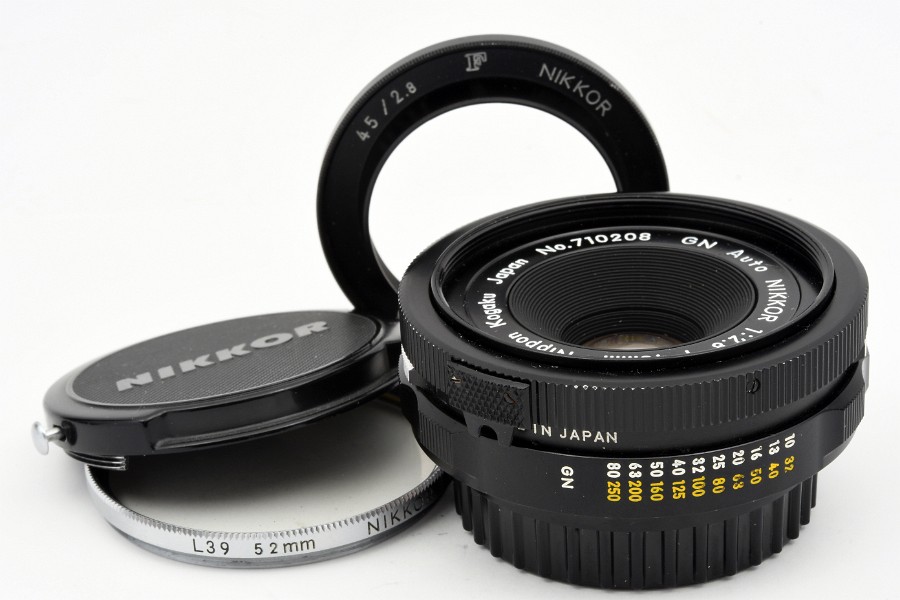

• Coupler for aperture and focusing ring, guide-numbers 10-80 (meters) & 32-250 (feet)
• Aperture scale f/2.8 to f/32, 9 iris blades

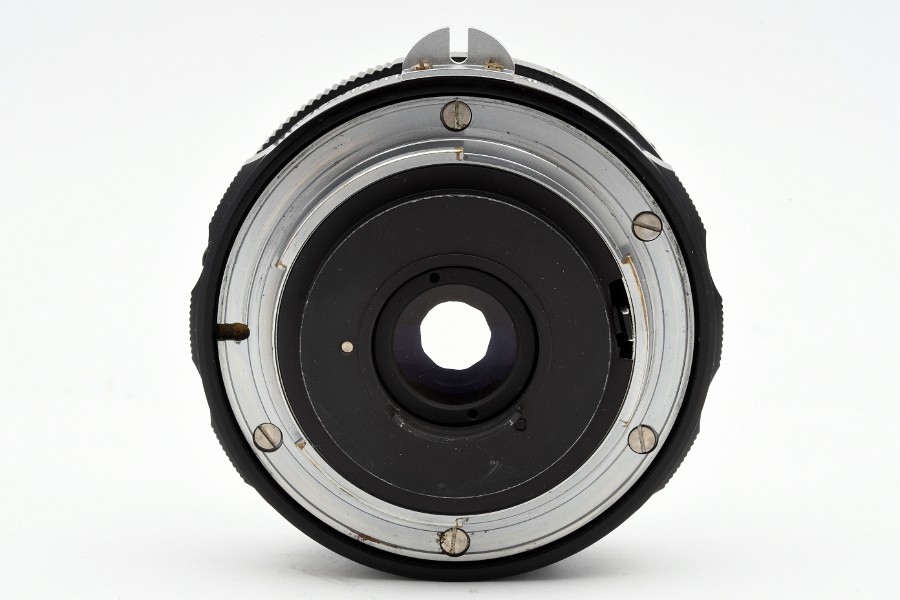

• Bayonet fixed by 5 slot screws
• Dimensions approx. 64mm ∅ x 31mm
• Weight approx. 150g
• NIKKOR 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap

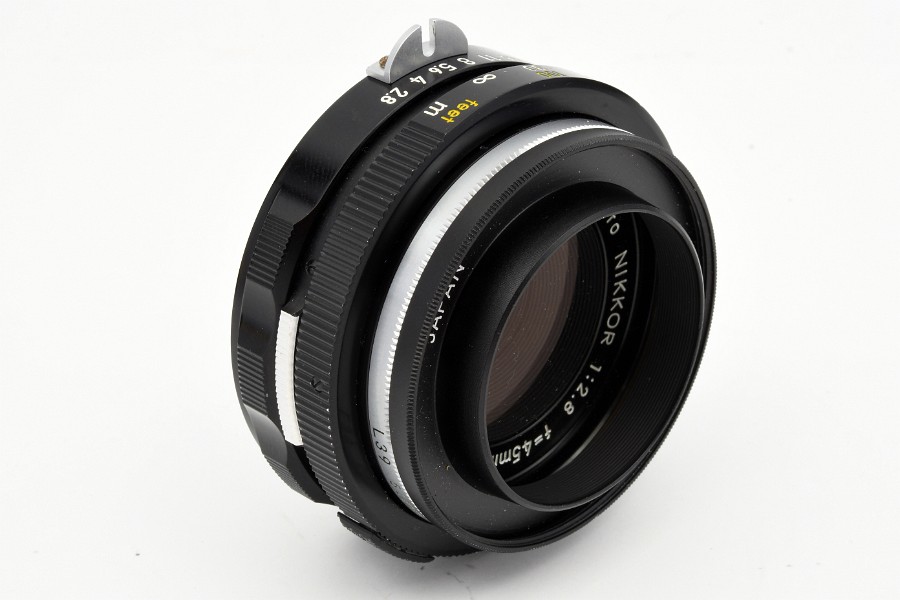

• NIKKOR 52mm L39 screw-in filter, chrome rim
