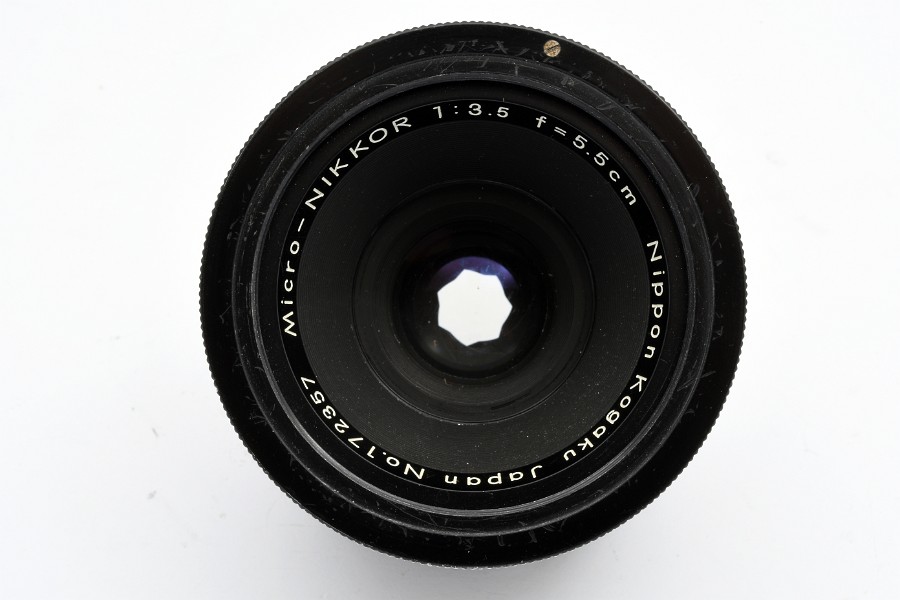

Micro-NIKKOR 1:3.5 f=5.5cm No.172357

mouseover to enlarge

• «Nippon Kogaku Japan»
• production year 1961
• type 1
• 857th lens produced (first 5.5cm micro lens was No.171501)
• 5 elements in 4 groups, picture angle 43°
• flat rotating front ring with integrated aperture ring (preset diaphragm), black, filter ∅ 52mm
• aperture scale f/3.5 to f/22, 7 iris blades

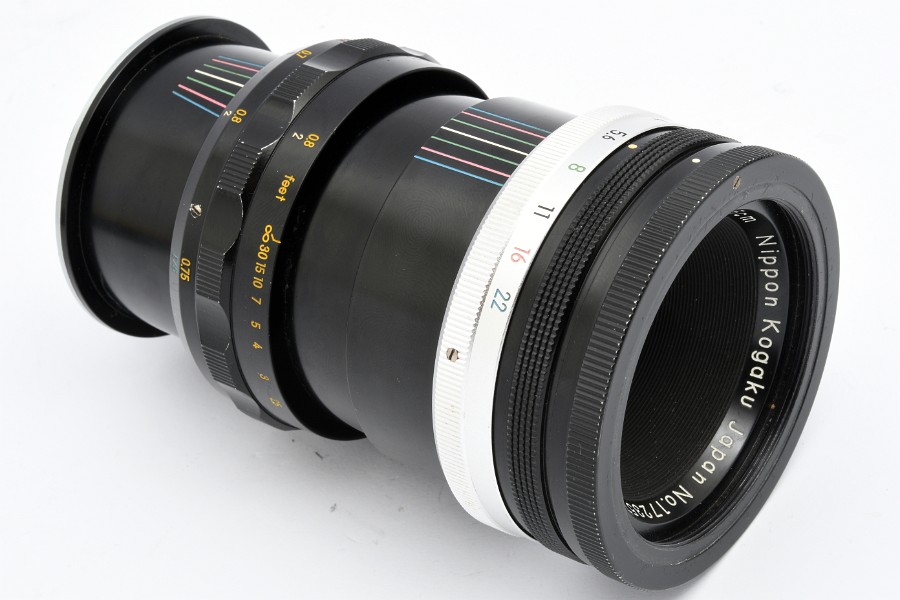

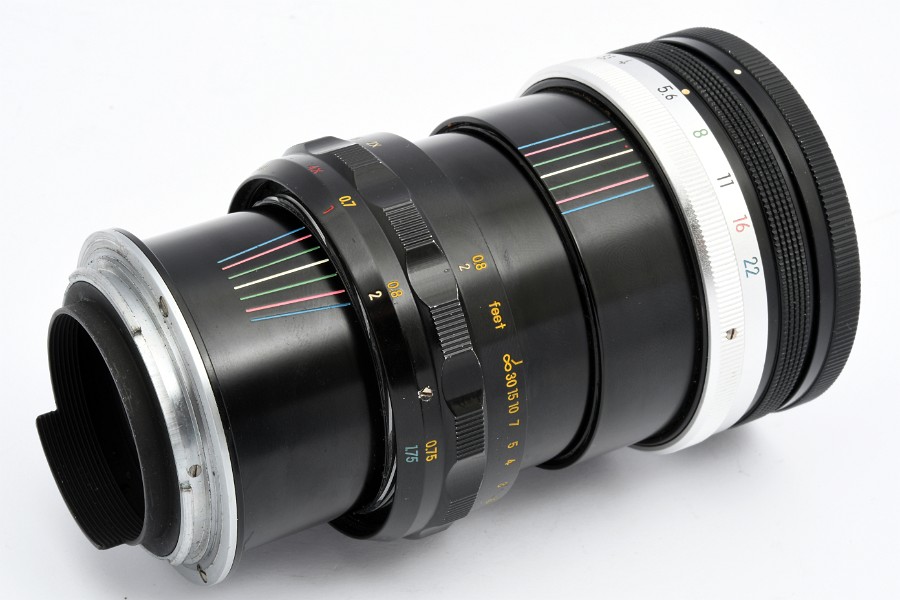

• distance scale graduated in feet only from 0.7 ft. to infinity (∞)
• «LENS MADE IN JAPAN» on focusing ring («M» with slanted sides)
• «PAT.PEND.» on chrome lens barrel

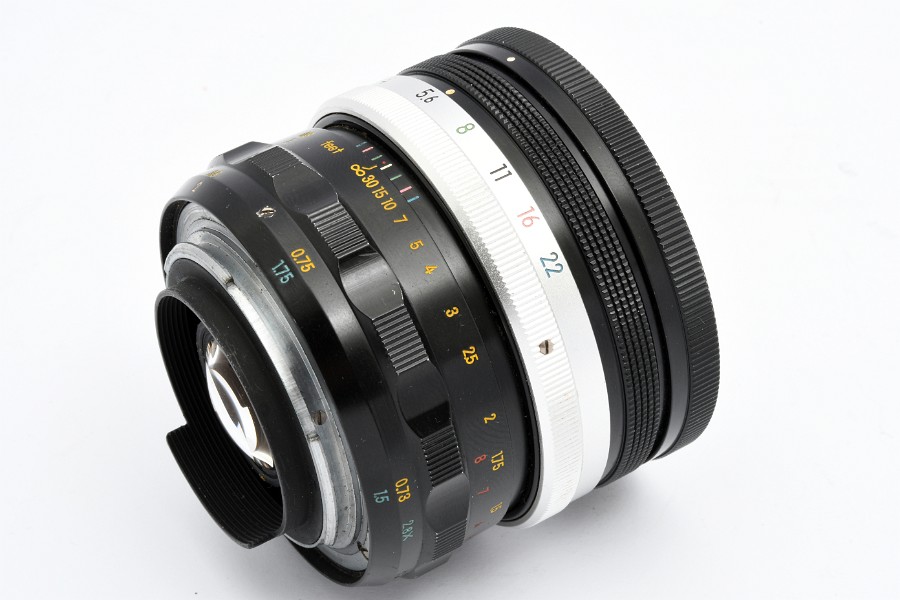

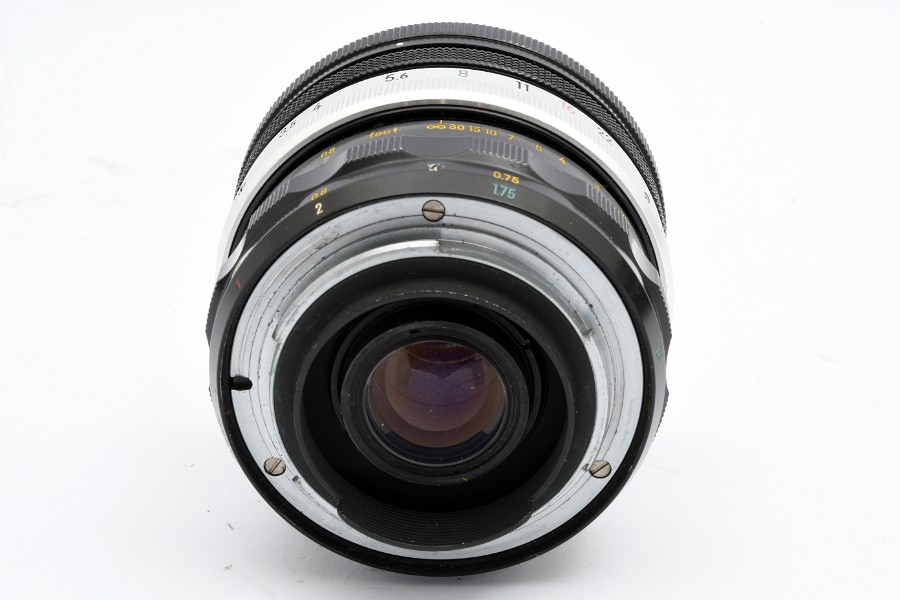

• bayonet fixed by 3 slot screws
• dimensions approx. 65mm ∅ x 63mm
• weight approx. 315g

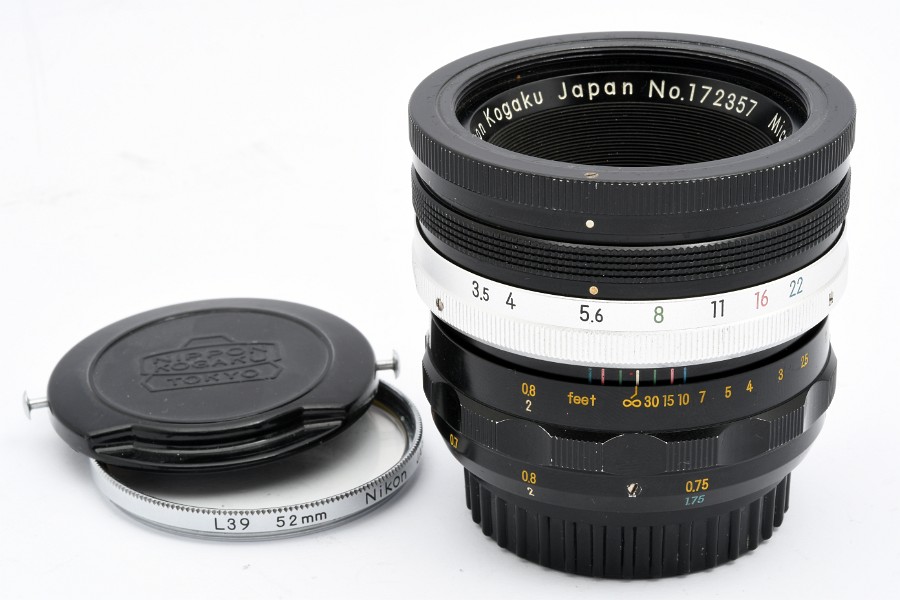

• NIPPON KOGAKU 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap

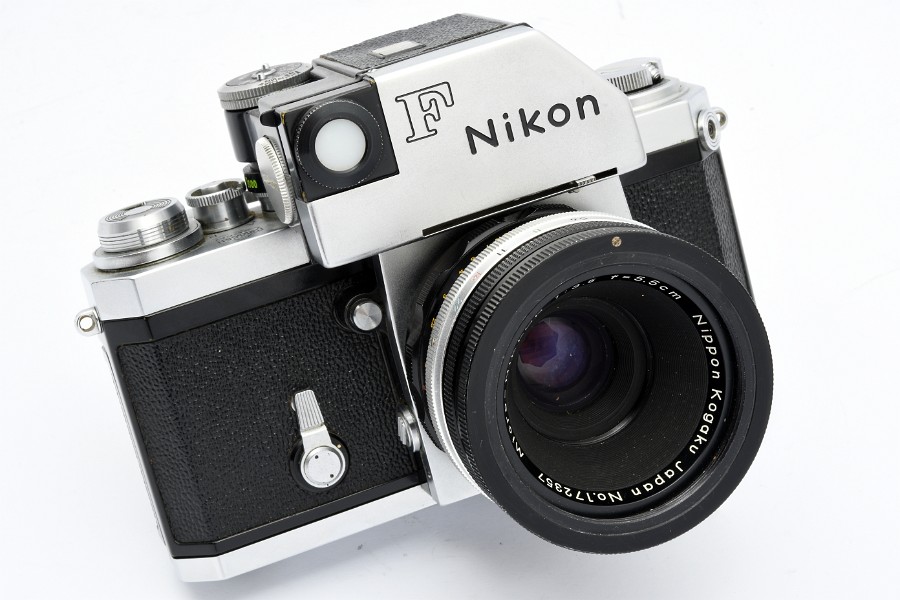

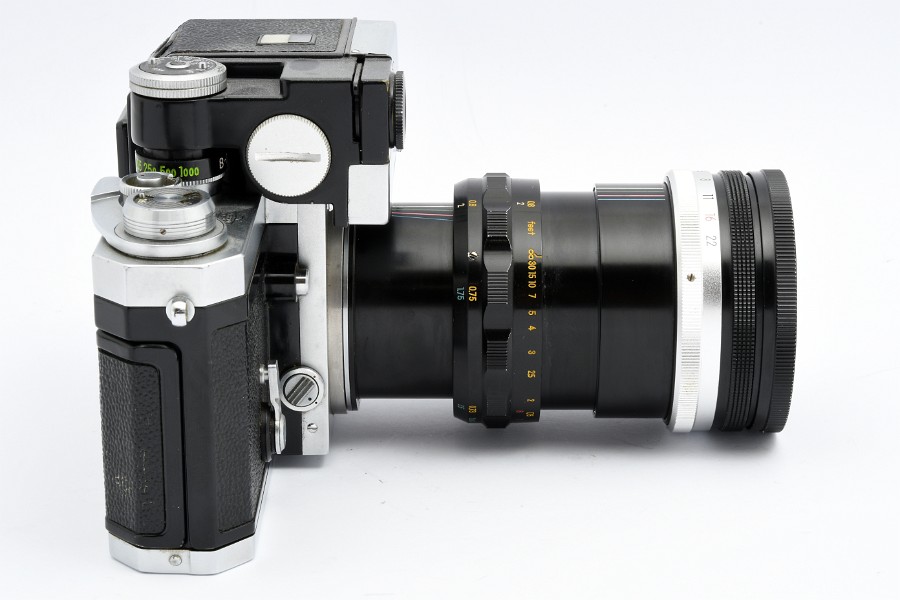

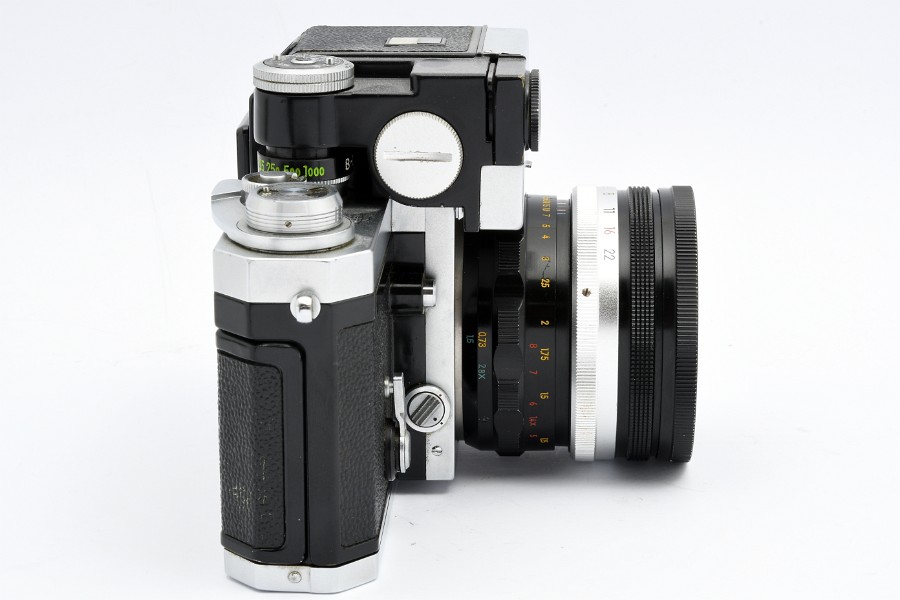

• came with Nikon F 6481163
