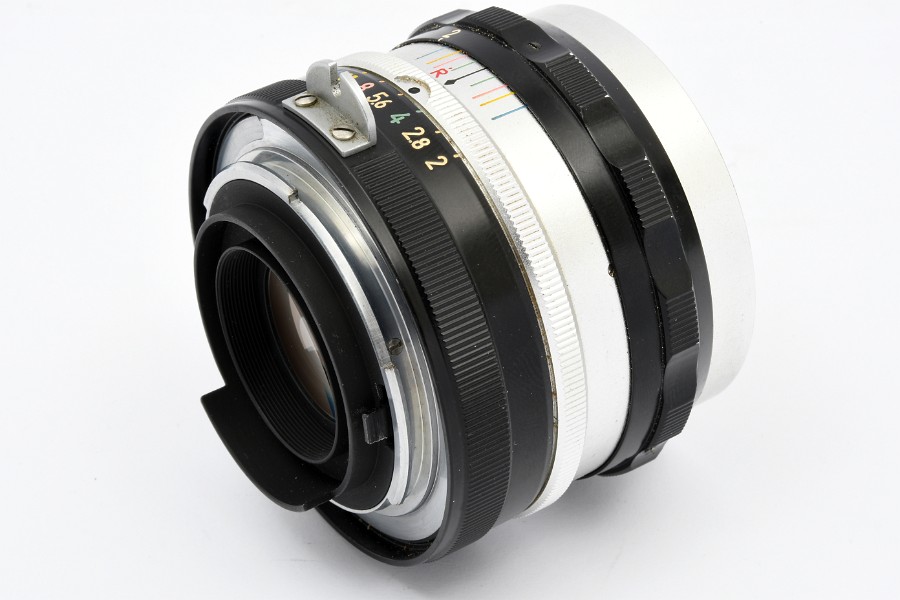

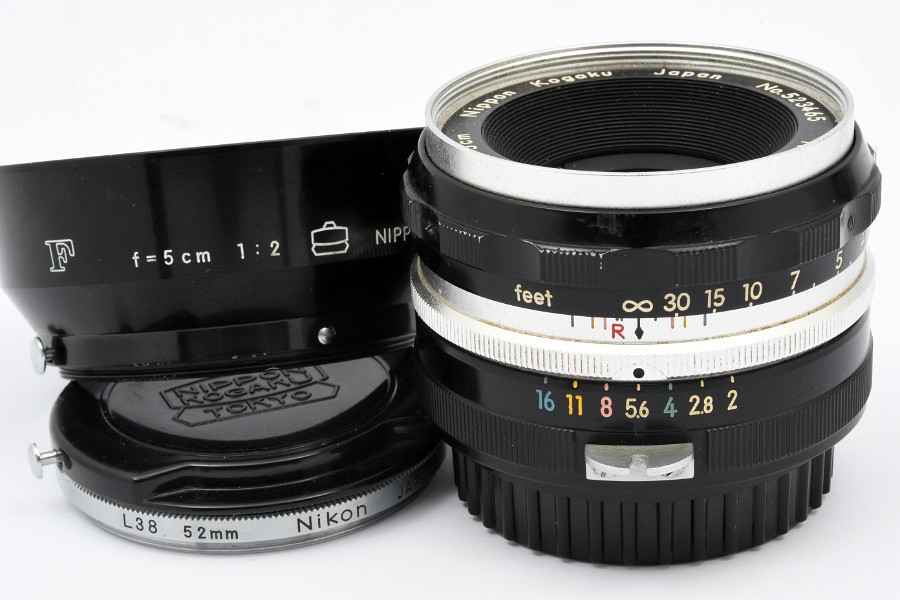

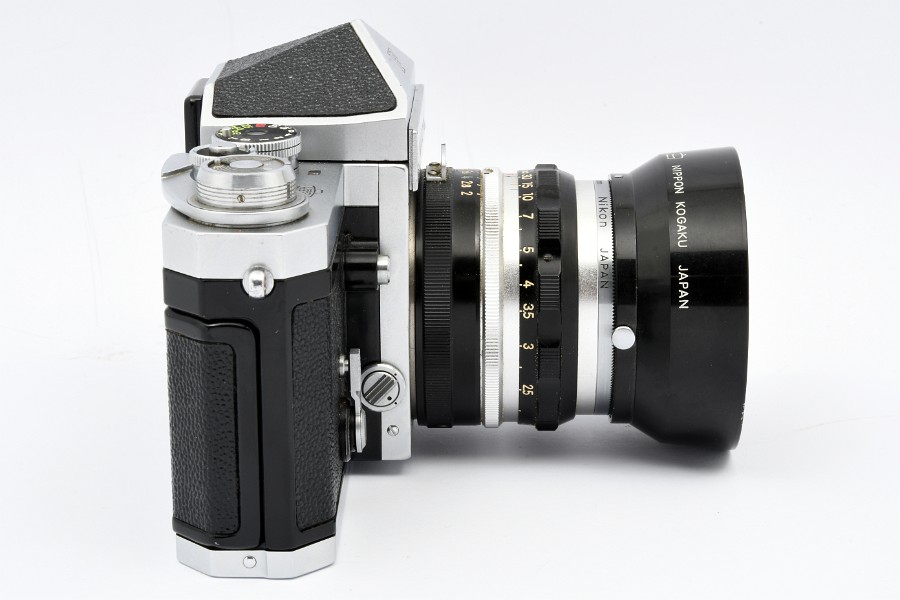

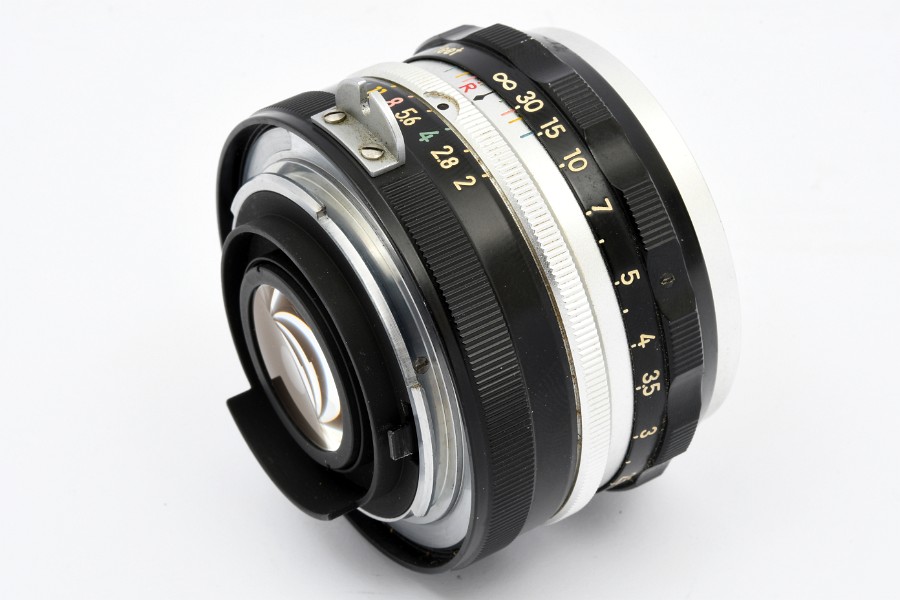

NIKKOR-S Auto 1:2 f=5cm No.523465

mouseover to enlarge

• «Nippon Kogaku Japan»
• production year 1959
• first 5cm lens was No.520201
• 7 elements in 5 groups
• picture angle 46°
• chrome front ring, filter ∅ 52mm
• focusing ring with tick marks
• distance scale graduated in feet from 2 ft. to ∞
• infrared mark: red dot and red «R»
• no «LENS MADE IN JAPAN»

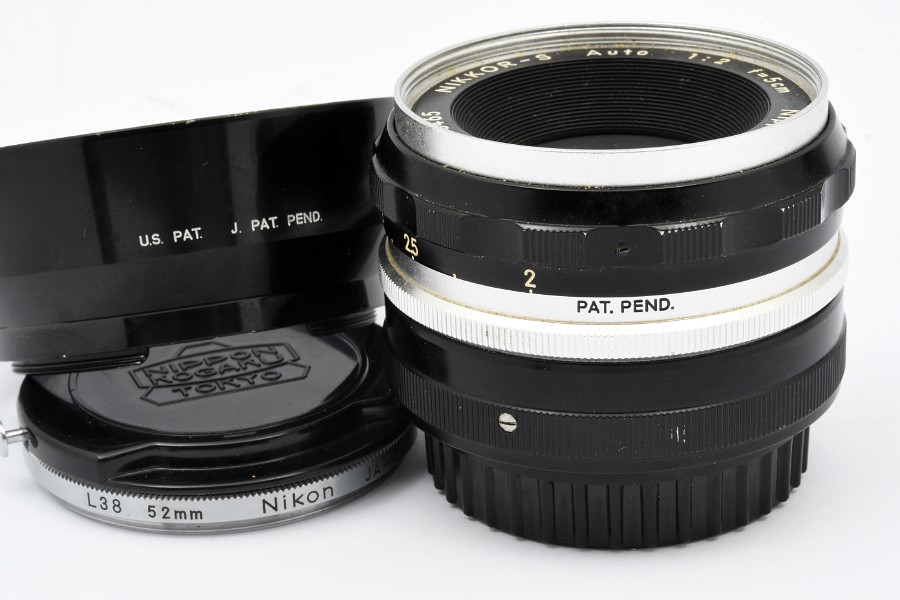

• «PAT.PEND.» on chrome lens barrel
• aperture ring with tick marks
• aperture scale f/2 to f/16
• 9 iris blades
• bayonet with recess, no bayonet screws
• dimensions approx. 61mm ∅ x 50mm
• weight approx. 200g
• NIPPON KOGAKU 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap

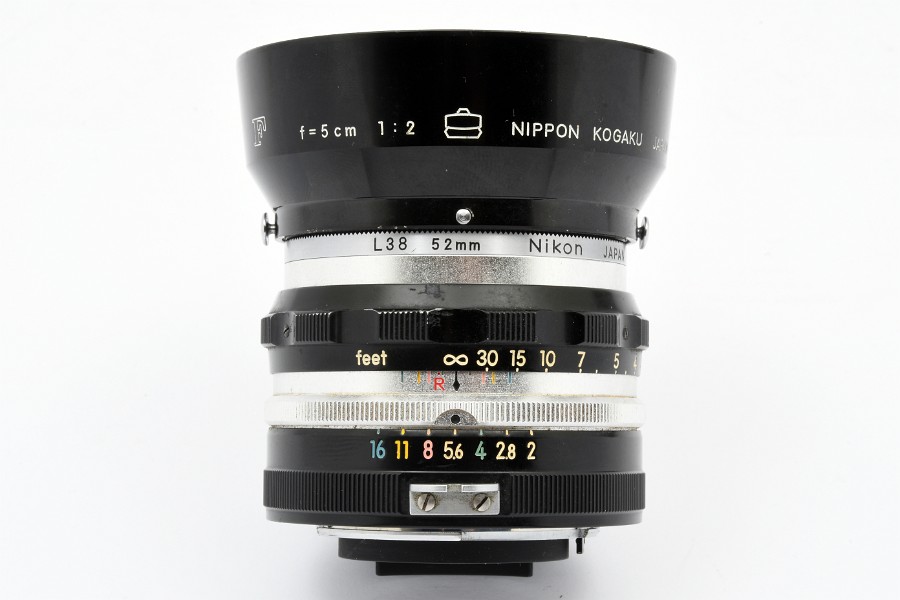

• NIPPON KOGAKU F 52mm snap-on lens hood, «f=5cm 1:2», «US.PAT. J.PAT. PEND.»
• NIPPON KOGAKU L39 52mm screw-in filter, chrome rim
