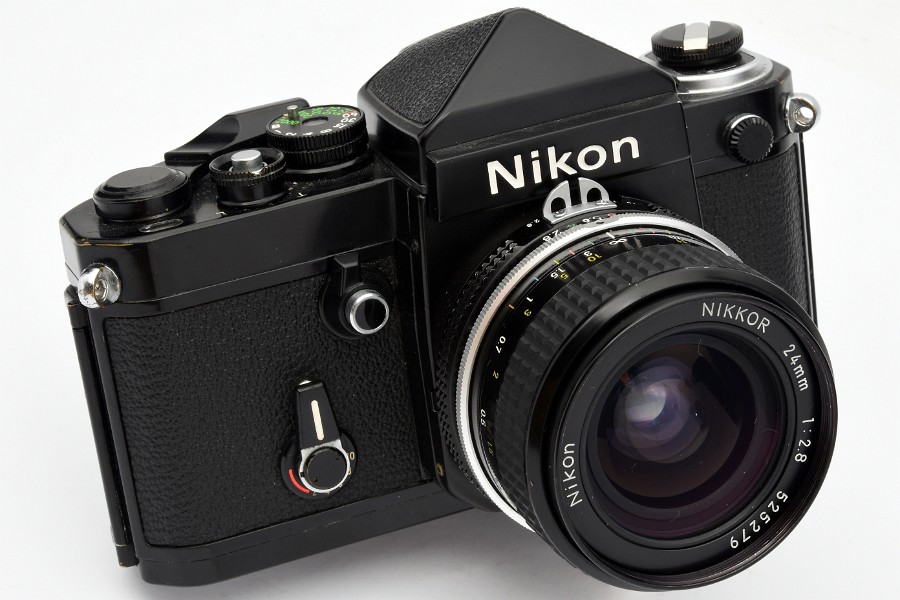

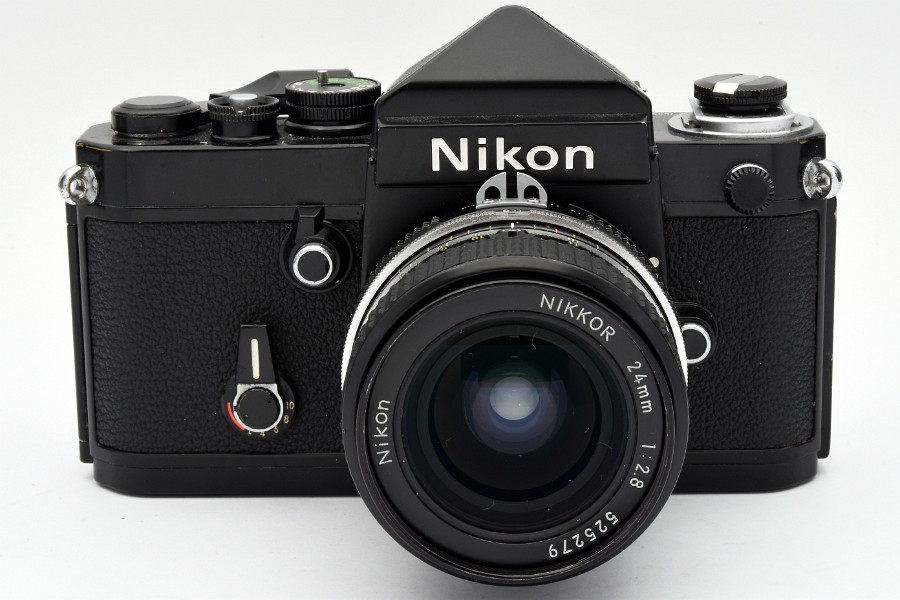

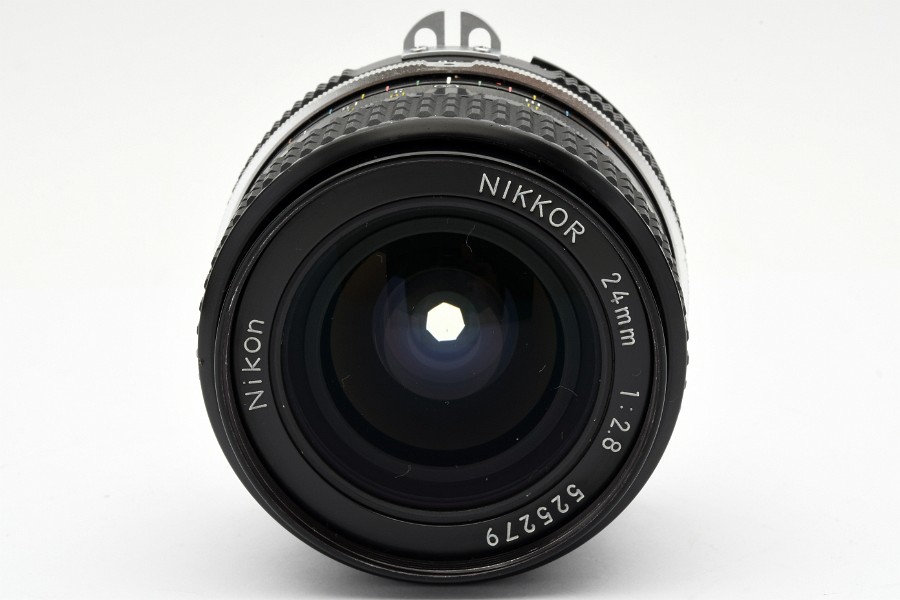

NIKKOR 24mm 1:2.8 AI 525279

mouseover to enlarge

• «Nikon»
• Production year 1977
• 279th 24/2.8 AI lens produced (first 24/2.8 AI lens was #525001)
• 9 elements in 9 groups
• Picture angle 84°
• Black front ring, filter ∅ 52mm
• Rubber covered focusing ring

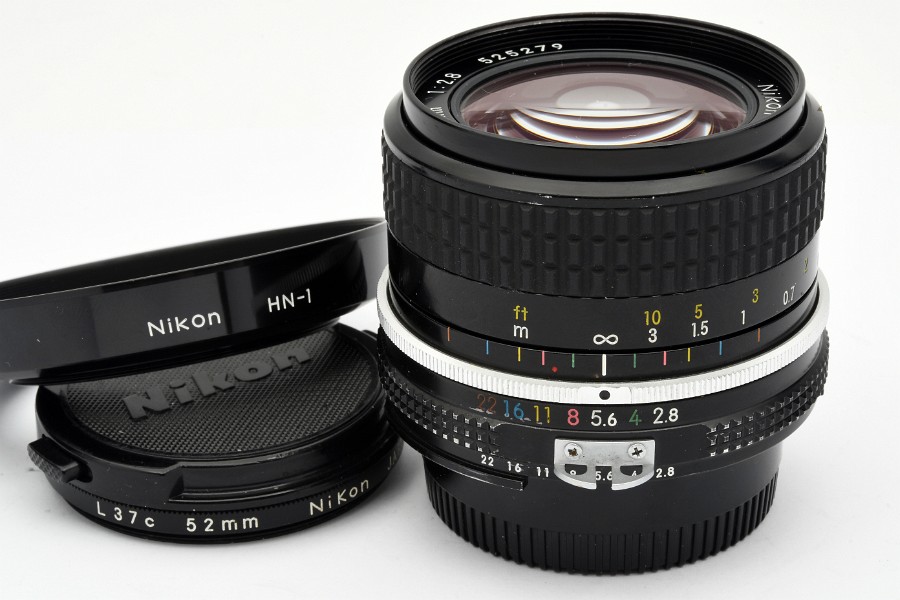

• Distance scale graduated in meters and feet from 0.3m (1 ft.) to infinity (∞)

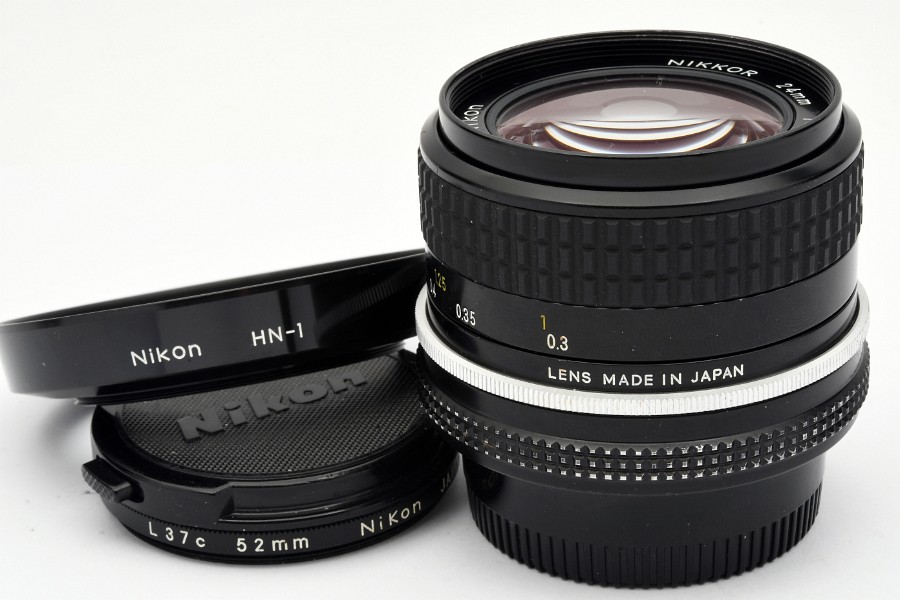

• White «LENS MADE IN JAPAN» on black lens barrel («M» with vertical sides)
• CRC (close-range correction system)

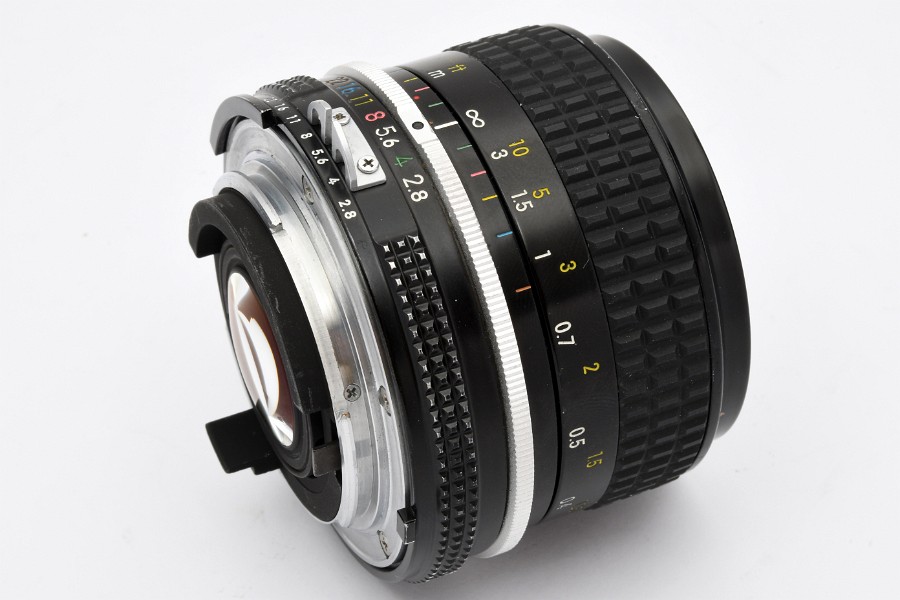

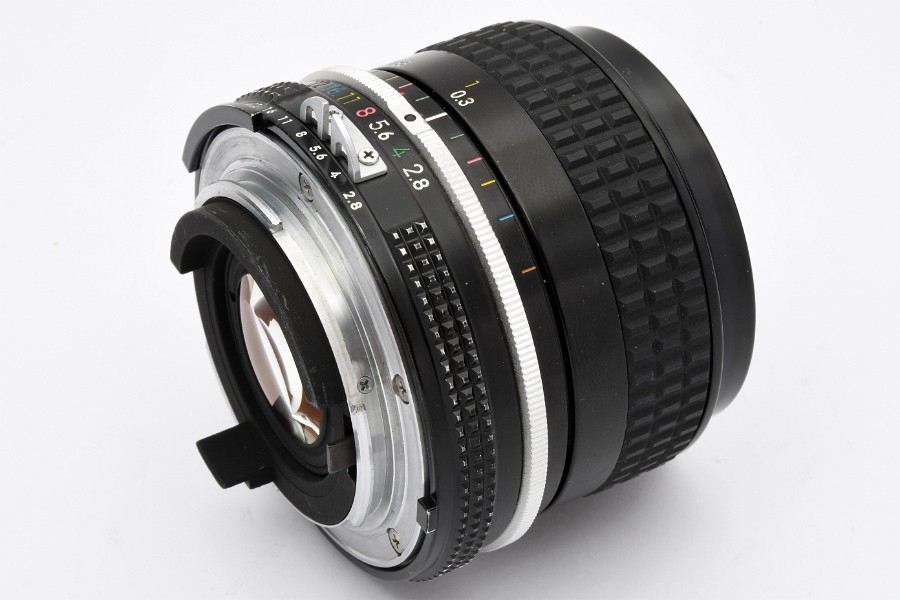

• Cross ribbed aperture setting ring, AI coupled
• Aperture scale f/2.8 to f/22
• 7 iris blades

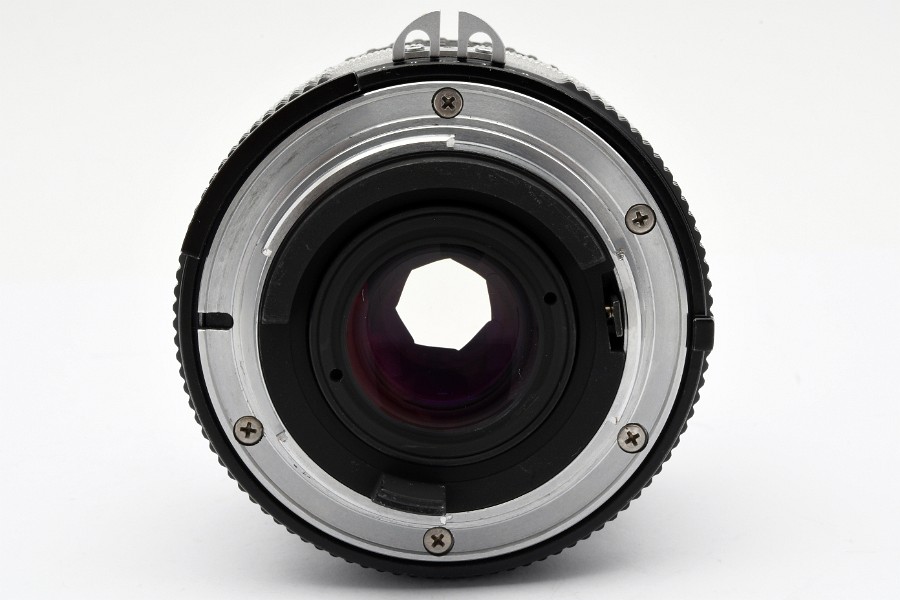

• Bayonet fixed by 5 cross-head screws
• Dimensions approx. 63.5mm ∅ x 56mm
• Weight approx. 270g
• Nikon 52mm snap-on front lens cap
• Nikon LF-1 rear lens cap

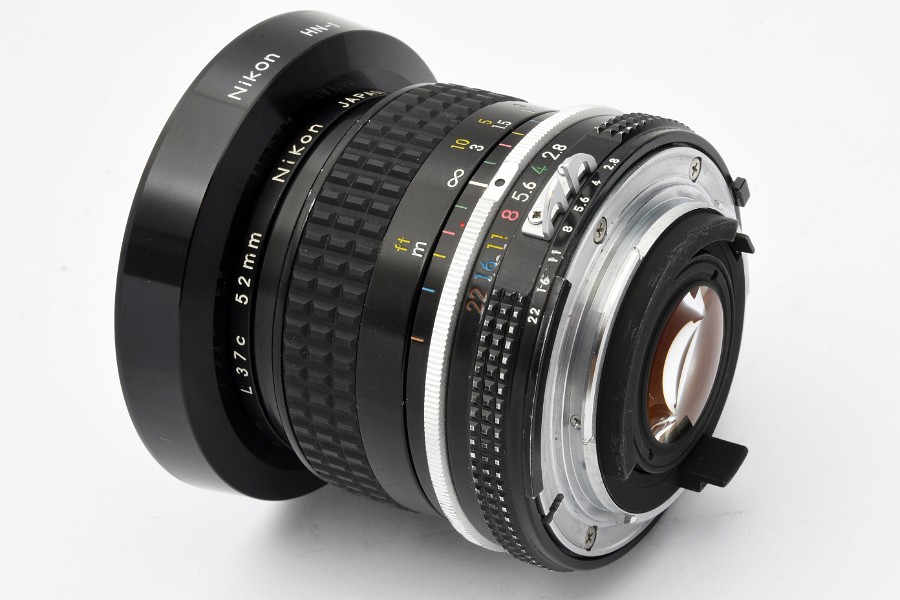

• Nikon HN-1 screw-in lens hood
• Nikon 52mm L1Bc screw-in filter, black rim
