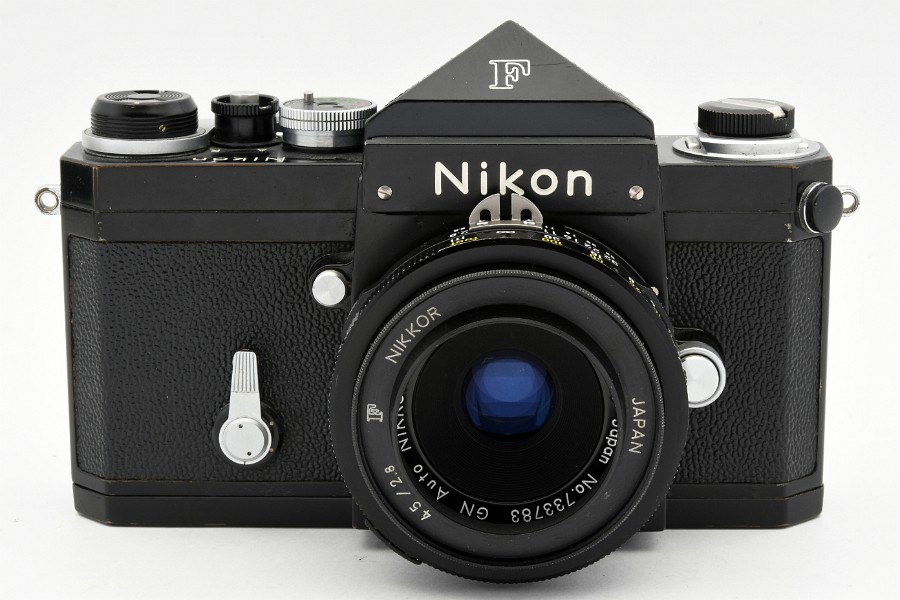

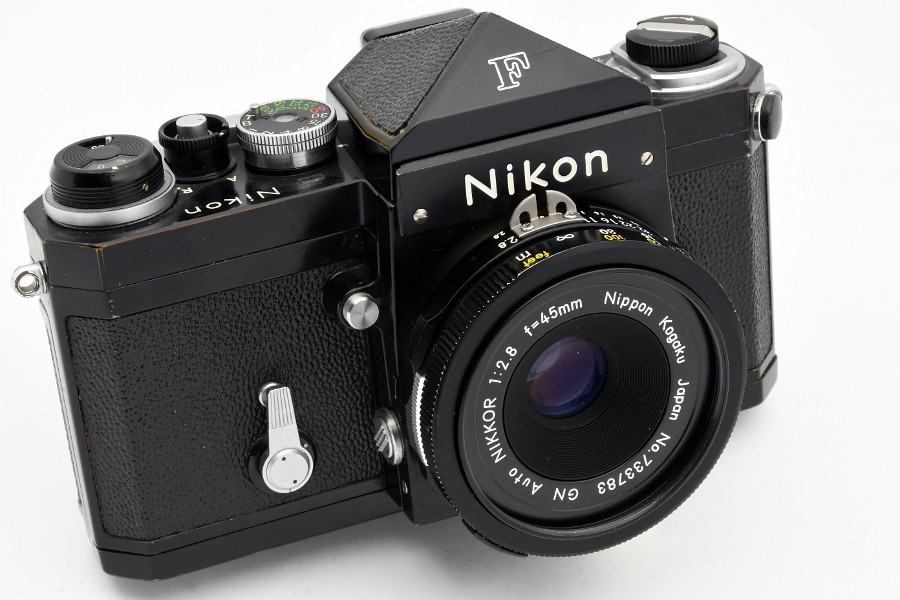

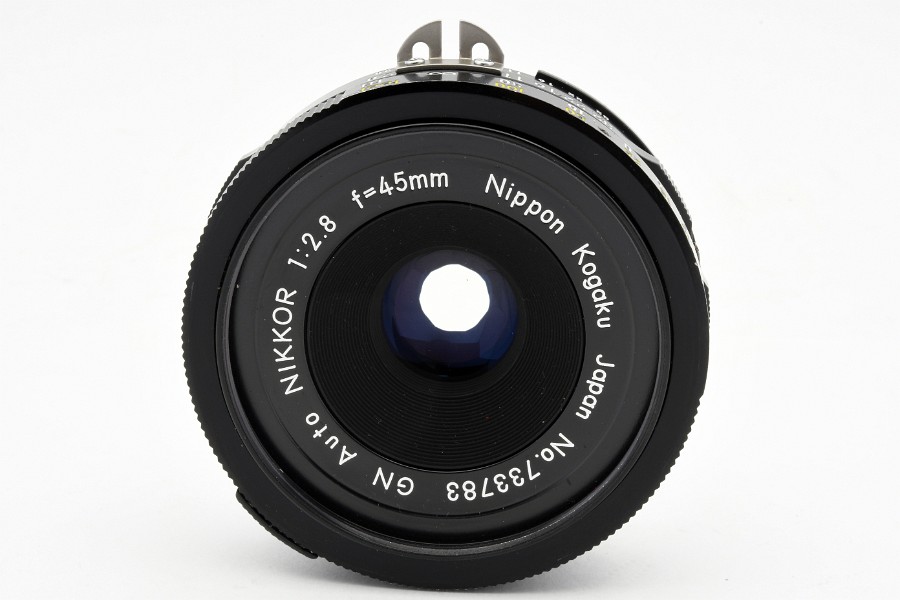

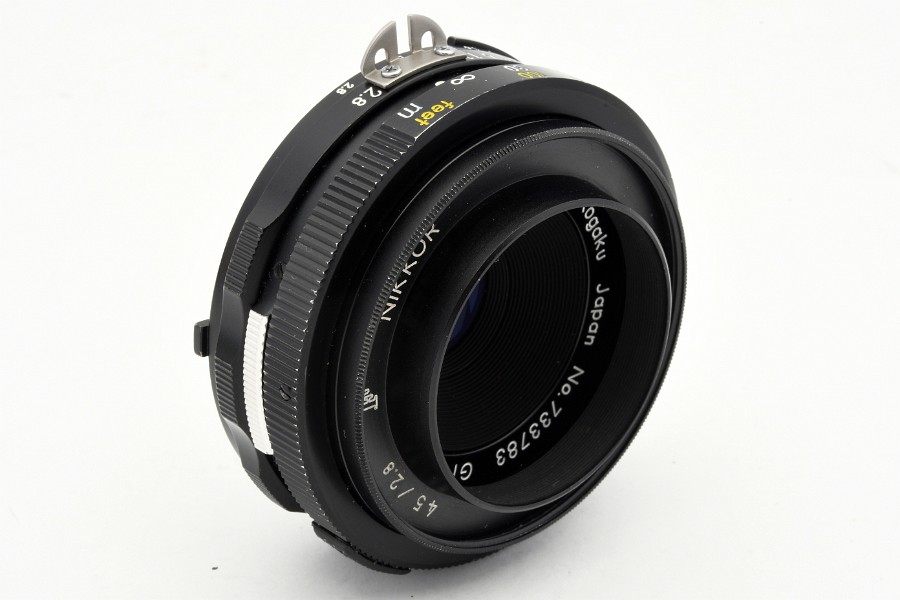

GN Auto NIKKOR 1:2.8 f=45mm No.733783 AI'd

mouseover to enlarge

• «Nippon Kogaku Japan»
• production year 1970
• last 45mm GN type 2 lens was No.733948
• 4 elements in 3 groups
• picture angle 34°50′
• black front ring, filter ∅ 52mm

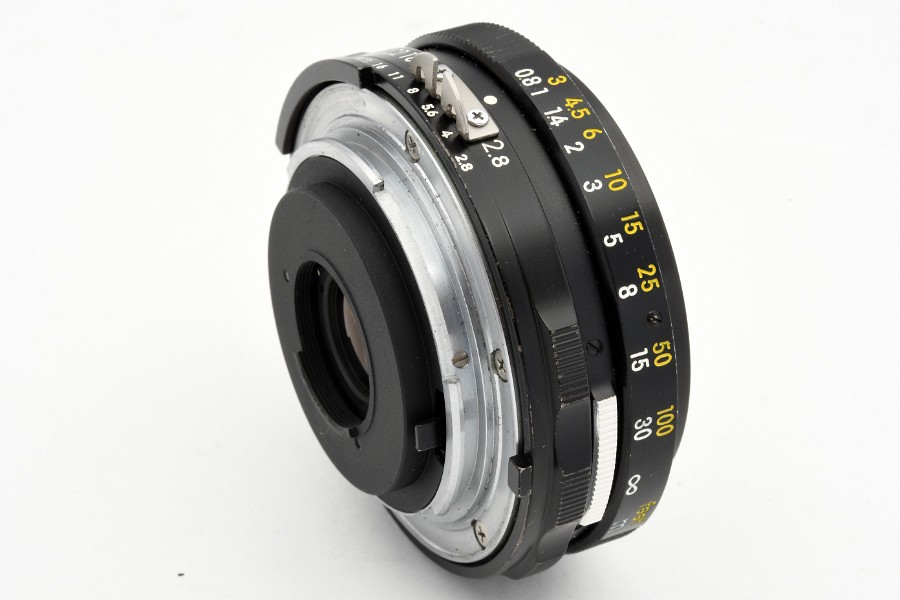

• distance scale graduated in meters & feet from 0.8m (3 ft.) to infinity (∞)
• «LENS MADE IN JAPAN» on black lens barrel («M» with vertical sides)

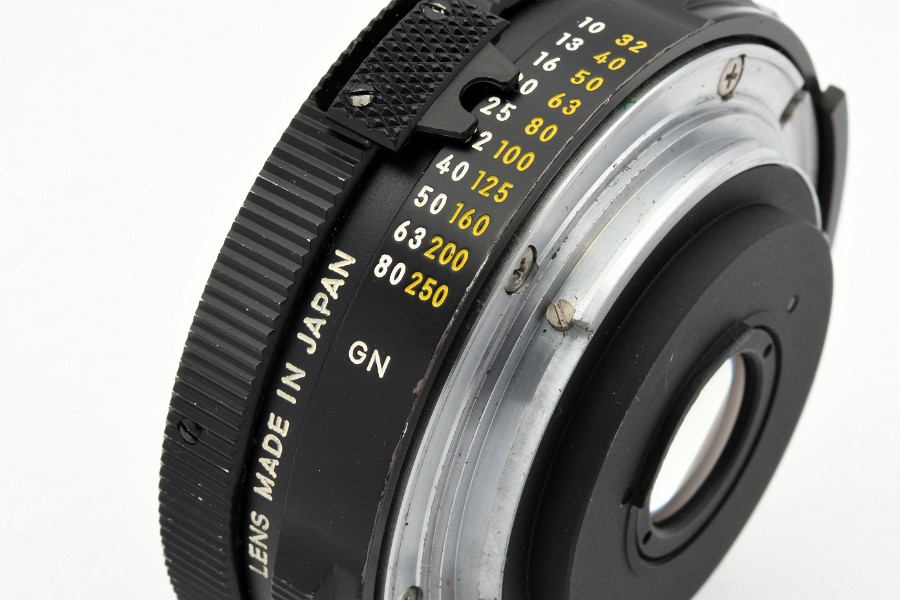

• coupler for aperture and focusing ring, guide-numbers 10-80 (meters) & 32-250 (feet)
• AI modification

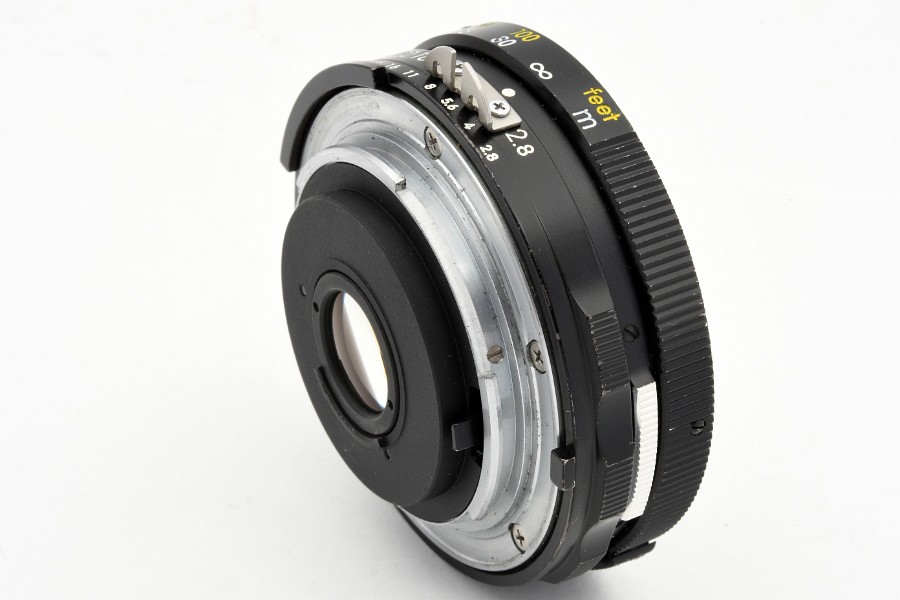

• aperture scale f/2.8 to f/32, 7 iris blades

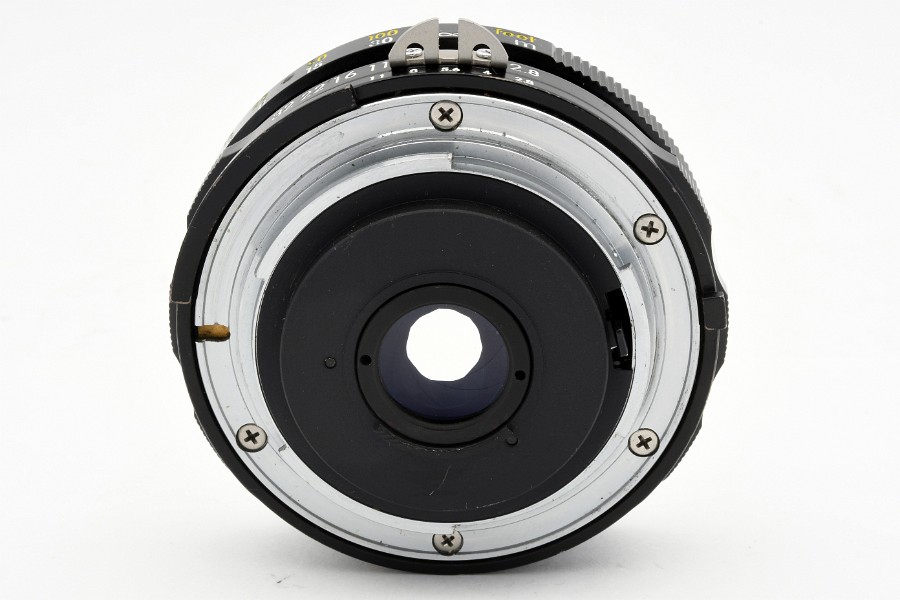

• bayonet fixed by 5 cross drive headed screws
• dimensions approx. 64mm ∅ x 20mm
• weight approx. 140g
• NIKKOR 52mm snap-on front lens cap
• NIPPON KOGAKU F rear lens cap
• 52mm 45/2.8 F NIKKOR snap-on lens hood
